Pattern Select Switch: Removal

  1. REMOVE LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH  (See REMOVAL )
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  (See REMOVAL )
  3. REMOVE PARKING BRAKE HOLE COVER  (See REMOVAL )
  4. REMOVE CONSOLE CUP HOLDER BOX SUB-ASSEMBLY  (See REMOVAL )
  5. REMOVE POSITION INDICATOR HOUSING ASSEMBLY
    1. Disconnect the 2 connectors.
    2. Detach the 7 claws and remove the position indicator housing.

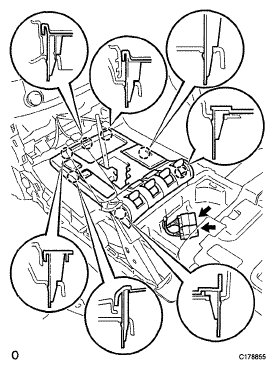

    Fig 1: Removing Position Indicator Housing Assembly
    G05760719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 PATTERN SELECT SWITCH ASSEMBLY
    1. Disconnect the connector.
    2. Using a small screwdriver, detach the 2 claws and remove the pattern select switch from the position indicator housing.
    Fig 2: Removing Pattern Select Switch From Position Indicator Housing
    G05760702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
