Inspection Procedure

1. Check if the component shown by the sub-code is displayed in the check result of the other components.
   1. Check if "01-DC" is output for the other components.
   2. If "01 -DC" is output for any other components, check if the same physical address is displayed.

      HINT:

      For the list of the components shown by sub-codes, refer to the table in the step below.

      Result

      RESULT REFERENCE



      Result	Proceed to
      "01-DC" is not output or the same physical address is not displayed	A
      "01-DC" is output and the same physical address is displayed	B

B:  Go to step  4

A: Go to next Step

1. Clear the DTCs (See DTC CHECK / CLEAR  ).

   HINT:

   If "01-DC" is output for only one component, this may not indicate a malfunction.

1. Recheck for DTCs and check if the same trouble code is output.

   OK: No DTC is output.

   Result

   RESULT REFERENCE



   Result	Proceed to
   OK	A
   NG (w/ Navigation System)	B
   NG (w/o Navigation System)	C

B:  Go to step  6

C:  Go to step  7

A: USE SIMULATION METHOD TO CHECK  (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )

1. Enter the diagnostic mode.
2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
3. Identify the component which has stored this code.

   Component Table

   COMPONENT CHART



   Display	Component
   AUDIO	Radio receiver
   DSP-AMP	Stereo component amplifier
   EMV(5)	Multi-display
   EMVN(4)	Display and navigation module display
   RSE(1)	Television display
   CAMERA-C(2)	Parking assist ECU
   XM(3)	Stereo component tuner
   (1) w/ Rear Seat Entertainment System (2) w/ Wide View Front and Side Monitor System (3) w/ SDARS System (4) w/ Navigation System (5) w/o Navigation System

   HINT:

   "NAVI" is the component which has stored this code in the example shown in the illustration.

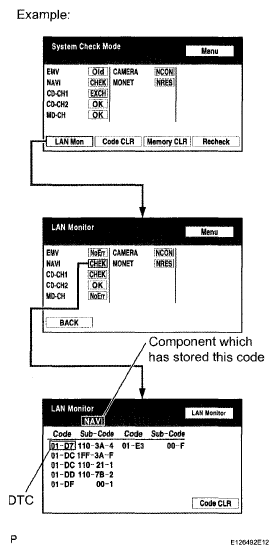

   Fig 1: Identifying NAVI Component

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check if the navigation system is equipped on the vehicle.

   Result

   RESULT REFERENCE



   Result	Proceed to
   w/ Navigation System	A
   w/o Navigation System	B

B:  Go to step  7

A: Go to next Step

1. Select the component which has stored this code.

   Component Table

   COMPONENT CHART



   Display	Proceed to
   Radio receiver (AUDIO)	Radio receiver communication error (See RADIO RECEIVER COMMUNICATION ERROR  )
   Stereo component amplifier (DSP-AMP)	Stereo component amplifier communication error (See STEREO COMPONENT AMPLIFIER COMMUNICATION ERROR  )
   Display and navigation module display (EMVN)	Display and navigation assembly communication error (See DISPLAY AND NAVIGATION ASSEMBLY COMMUNICATION ERROR  )
   Television display (RSE)(1)	Television display assembly communication error (See TELEVISION DISPLAY ASSEMBLY COMMUNICATION ERROR  )
   Parking assist ECU (CAMERA-C)(2)	Parking assist ECU communication error (See PARKING ASSIST ECU COMMUNICATION ERROR  )
   Stereo component tuner (XM)(3)	Satellite radio tuner communication error (See SATELLITE RADIO TUNER COMMUNICATION ERROR  )
   (1) w/ Rear Seat Entertainment System (2) w/ Wide View Front and Side Monitor System (3) w/ SDARS System

NEXT: END

1. Select the component which has stored this code.

   Component Table

   COMPONENT CHART



   Display	Proceed to
   Radio receiver (AUDIO)	Radio receiver communication error (See RADIO RECEIVER COMMUNICATION ERROR  )
   Stereo component amplifier (DSP-AMP)	Stereo component amplifier communication error (See STEREO COMPONENT AMPLIFIER COMMUNICATION ERROR  )
   Multi-display (EMV)	Multi-display communication error (See MULTI-DISPLAY COMMUNICATION ERROR  )
   Television display (RSE)(1)	Television display assembly communication error (See TELEVISION DISPLAY ASSEMBLY COMMUNICATION ERROR  )
   (1) w/ Rear Seat Entertainment System

NEXT: END
