DTC 01-DF Master Error: Wiring Diagram

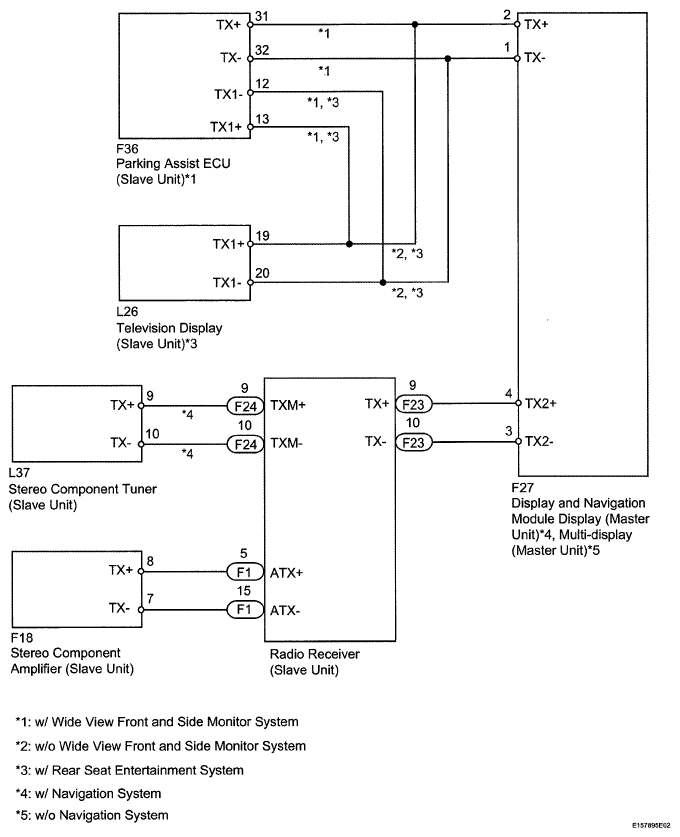

Fig 1: Master Error Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
