Multi-display Communication Error: Wiring Diagram

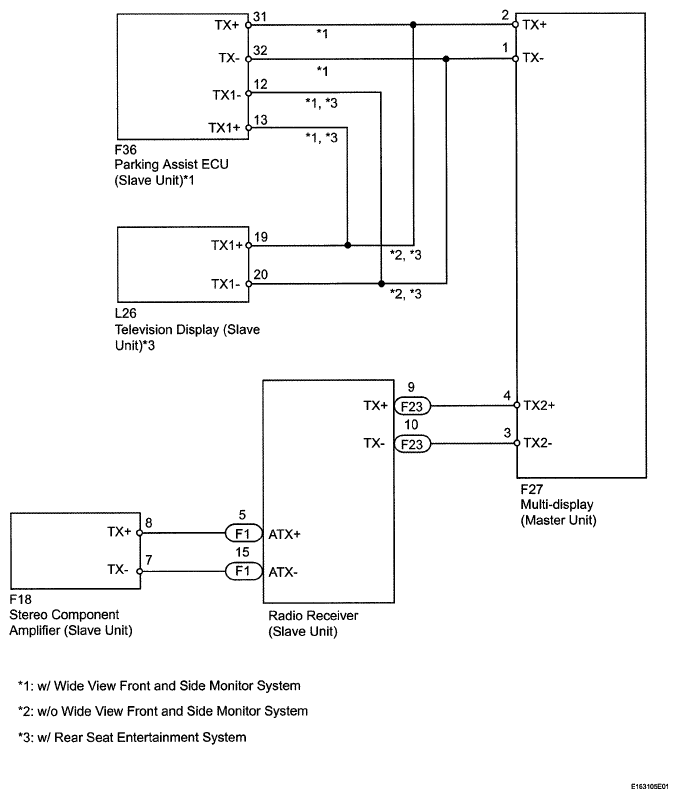

Fig 1: Multi-Display Communication Error - Wiring Diagram
G05762938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
