Radio Receiver: Components

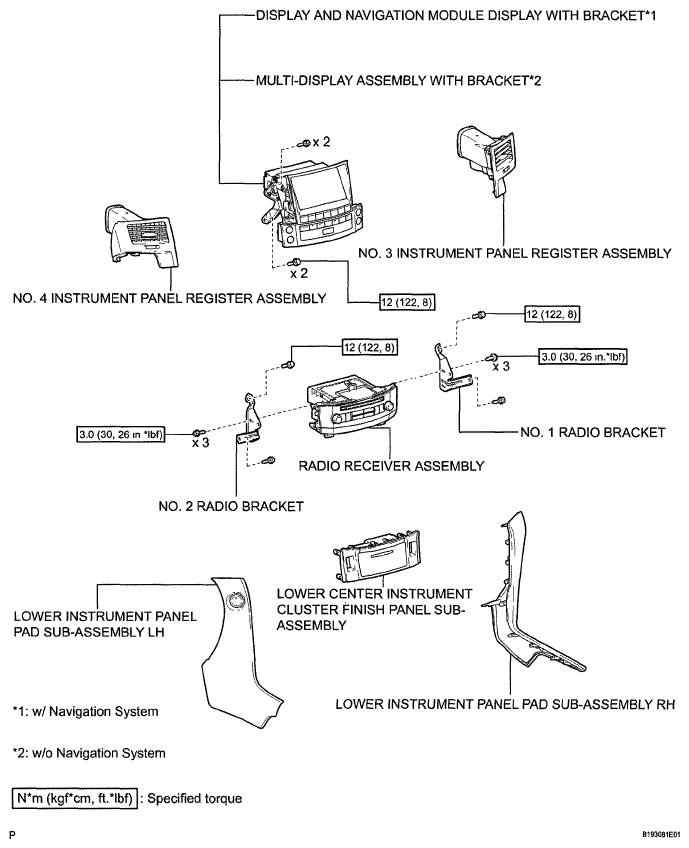

Fig 1: Radio Receiver Replacement Components With Torque Specifications
G05763044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
