DTC B2312: Power Window Switch Malfunction: Wiring Diagram

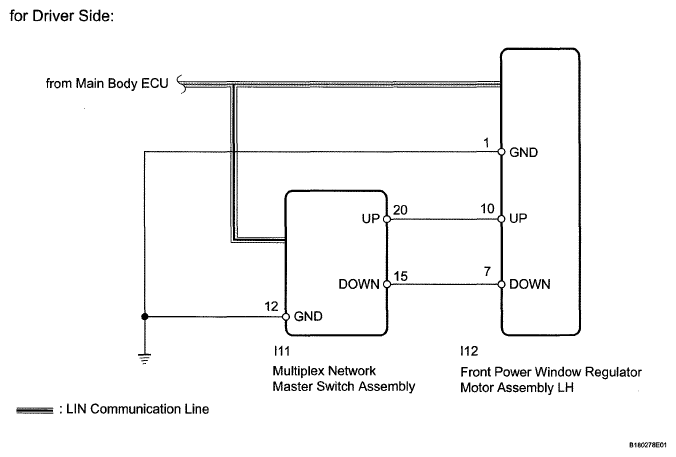

Fig 1: Multiplex Network Master Switch Assembly - Wiring Diagram (For Driver Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

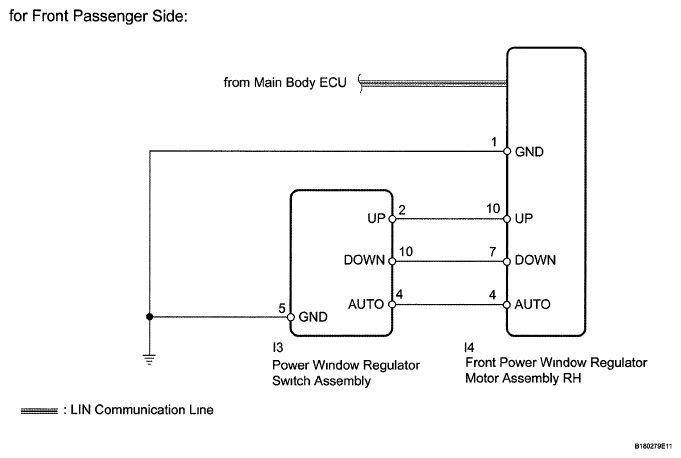

Fig 2: Power Window Regulator Switch Assembly - Wiring Diagram (For Front Passenger Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

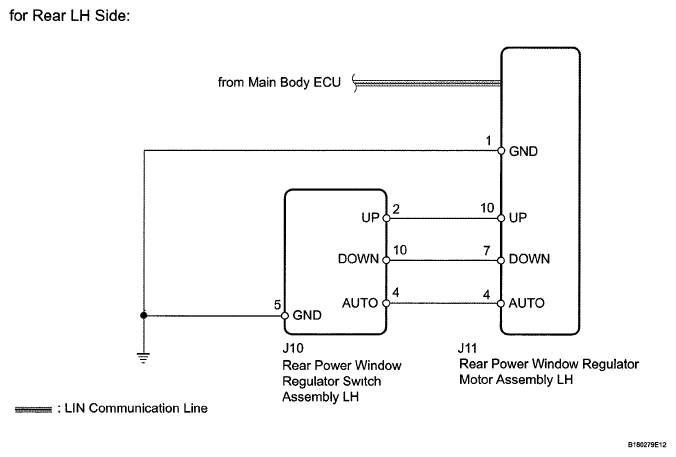

Fig 3: Rear Power Window Regulator Switch Assembly LH - Wiring Diagram (For Rear LH Side)

Fig 4: Rear Power Window Regulator Switch Assembly RH - Wiring Diagram (For Rear RH Side)
