Inspection Procedure

1. Check for DTCs (See DTC CHECK / CLEAR  ).

   Result

   DTC RESULT REFERENCE



   Result	Proceed to
   DTC is not output	A
   B2311 is output	B
   B2312 is output	C
   B2313 is output	D
   LIN communication system DTCs are output	E

B: GO TO DTC B2311  (See DTC B2311 POWER WINDOW MOTOR MALFUNCTION  )

C: GO TO DTC B2312  (See DTC B2312 POWER WINDOW SWITCH MALFUNCTION  )

D: GO TO DTC B2313  (See DTC B2313 GLASS POSITION INITIALIZATION INCOMPLETE  )

E: GO TO LIN COMMUNICATION SYSTEM  (See DIAGNOSTIC TROUBLE CODE CHART )

A: Go to next step

1. Check that the rear door power window LH moves when the manual up/down function of the power window regulator switch is operated (See OPERATION CHECK  ).

   OK: Rear door power window LH moves.

NG: OTHER PROBLEM (GO TO PROBLEM SYMPTOMS TABLE)  (See REAR POWER WINDOW LH DOES NOT OPERATE WITH REAR POWER WINDOW SWITCH LH  )

OK: Go to next step

1. Use the Data List to check if the power window regulator motor is functioning properly (See DATA LIST / ACTIVE TEST  ).

   RL-Door Motor

   ITEM RANGE REFERENCE



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   RL Door P/W Auto SW	Rear power window LH auto up/down signal / ON or OFF	ON: Rear power window LH auto up/down switch operated OFF: Rear power window LH switch not operated	-

   OK: Techstream display changes according to operation of rear power window switch LH.

NG: Go to step 4

OK: REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH  (See REMOVAL  )

1. Disconnect the J10 switch connector.
2. Disconnect the J11 motor connector.
3. Measure the resistance according to the value (s) in the table below.

   Standard Resistance

   RESISTANCE REFERENCE



   Tester Connection	Condition	Specified Condition
   J10-4 (AUTO) - J11-4 (AUTO)	Always	Below 1 Ω
   J10-4 (AUTO) or J11-4 (AUTO) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

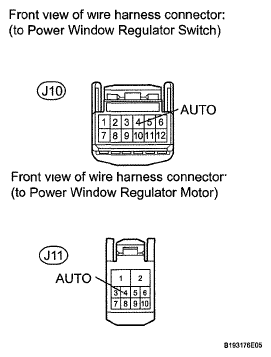

Fig 1: Identifying J10 And J11 Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to next step

1. Remove the rear power window regulator switch (See REMOVAL  ).
2. Measure the resistance according to the value (s) in the table below.

   Standard Resistance

   RESISTANCE REFERENCE



   Tester Connection	Switch Condition	Specified Condition
   J10-4 (AUTO) - J10-5 (GND)	Auto up/down operation	Below 1 Ω

NG: REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY  (See REMOVAL  )

Fig 2: Rear Power Window Regulator Switch Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH  (See REMOVAL  )
