Quarter Window Glass: Removal

HINT:

• Use the same procedures for the LH side and RH side.
• The procedures listed below are for the LH side.

1. REMOVE ROOF HEADLINING
   1. Remove the roof headlining (See REMOVAL ).
2. REMOVE QUARTER WINDOW ASSEMBLY

   HINT:

   Apply protective tape to the outer surface of the vehicle body to prevent scratches.

   NOTE: When separating the quarter window glass from the vehicle, be careful not to damage the vehicle paint or interior/exterior ornaments.
   1. LH Side:

      Disconnect the connector.

      Fig 1: Identifying Protective Tape To Outer Surface Of Vehicle Body

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. RH Side:

      Disconnect the 2 connectors.

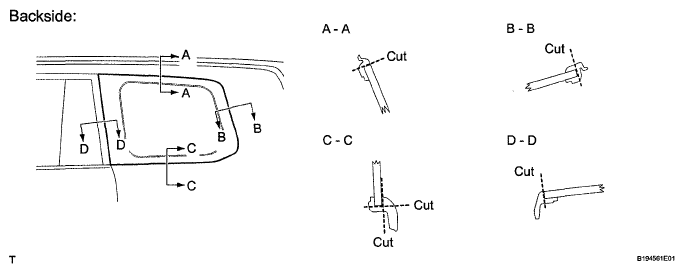

   3. Using a knife, cut off the molding as shown in the illustration.
      Fig 2: Identifying Cut Of Molding

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Be careful not to damage the vehicle body.
   4. From the interior, insert a piano wire between the vehicle body and the quarter window glass as shown in the illustration.
      Fig 3: Identifying Piano Wire

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
   6. Cut through the adhesive by pulling the piano wire around the quarter window glass.
      NOTE: Leave as much adhesive on the vehicle body as possible when removing the quarter window glass.
   7. Using suction cups, remove the quarter window glass.
      Fig 4: Cutting Quarter Window Glass With Piano Wire

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. CLEAN VEHICLE BODY
   1. Clean and shape the contact surface of the vehicle body.
      1. On the contact surface of the vehicle body, use a knife to cut away excess adhesive as shown in the illustration.

         HINT:

         Leave as much adhesive on the vehicle body as possible.

         NOTE: Be careful not to damage the vehicle body.
         Fig 5: Identifying Vehicle Body Adhesive Area

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Clean the contact surface of the vehicle body with cleaner.

         HINT:

         Even if all the adhesive has been removed, clean the vehicle body.
