System Diagram

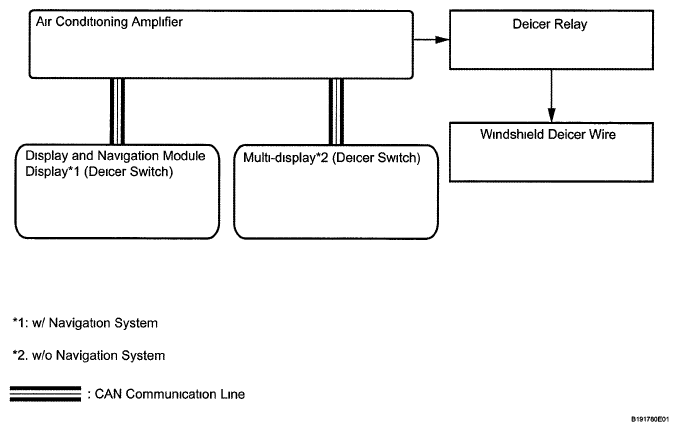

Fig 1: Windshield Deicer System Diagram
G05767550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

TRANSMITTER SPECIFICATION

Transmitter Receiver Signal Line
Display and navigation module display(1) Air conditioning amplifier Windshield deicer switch signal CAN
Multi-display(2) Air conditioning amplifier Windshield deicer switch signal CAN
(1) w/ Navigation System
(2) w/o Navigation System
