Inspection Procedure
- CHECK FOR DTC
- Check for DTC.
OK: DTC is not output.
NG: GO TO CAN COMMUNICATION SYSTEM (See DIAGNOSTIC TROUBLE CODE CHART )
OK: Go to next step
- Check for DTC.
- PERFORM ACTIVE TEST USING TECHSTREAM (DEICER RELAY)
- Select the Active Test using the Techstream to generate a control command, and then check that the windshield deicer operates.
Air Conditioner
AIR CONDITIONER REFERENCETester Display Test Part Control Range Diagnostic Note Deicer Relay (Front) Deicer relay operation OFF or ON - Result
RESULT REFERENCEResult Proceed to Windshield deicer operates normally (w/ Navigation System) A Windshield deicer operates normally (w/ o Navigation System) B Windshield deicer does not operate C
B: Go to step 5
C: Go to step 7
A: Go to next step
- Select the Active Test using the Techstream to generate a control command, and then check that the windshield deicer operates.
- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY
- Temporarily replace the display and navigation module display with a new or normally functioning one (See REMOVAL ).
- CHECK WINDSHIELD DEICER SYSTEM
- Turn the engine switch on (IG).
- Check that pressing the windshield deicer switch illuminates the indicator and warms the front windshield surface.
- Check that after approximately 15 minutes, the indicator light turns off and the windshield deicer deactivates.
OK: Windshield deicer system functioning normally.
NG: REPLACE AIR CONDITIONING AMPLIFIER (See REMOVAL )
OK: END
- REPLACE MULTI-DISPLAY
- Temporarily replace the multi-display with a new or normally functioning one (See REMOVAL ).
- CHECK WINDSHIELD DEICER SYSTEM
- Turn the engine switch on (IG).
- Check that pressing the windshield deicer switch illuminates the indicator and warms the front windshield surface.
- Check that after approximately 15 minutes, the indicator light turns off and the windshield deicer deactivates.
OK: Windshield deicer system functioning normally.
NG: REPLACE AIR CONDITIONING AMPLIFIER (See REMOVAL )
OK: END
- CHECK FUSE (DEICER)
- Remove the DEICER fuse from the engine room junction block.
- Measure the resistance according to the value (s) in the table below.
Standard Resistance
RESISTANCE REFERENCETester Connection Condition Specified Condition DEICER fuse Always Below 1 Ω
NG: REPLACE FUSE
OK: Go to next step
- INSPECT DEICER RELAY
- Remove the deicer relay from the engine room relay block.
- Measure the resistance according to the value (s) in the table below.
Standard Resistance
RESISTANCE REFERENCETester Connection Condition Specified Condition 3 - 5 Battery voltage is not applied to terminals 1 and 2 10 kΩ or higher Battery voltage is applied to terminals 1 and 2 Below 1 Ω
NG: REPLACE DEICER RELAY
OK: Go to next step

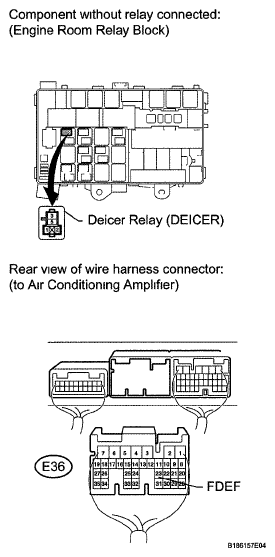

- CHECK HARNESS AND CONNECTOR (DEICER RELAY - AIR CONDITIONING AMPLIFIER AND BATTERY)
- Remove the deicer relay from the engine room relay block.
- Disconnect the E36 air conditioning amplifier connector.
- Measure the voltage according to the value (s) in the table below.
Standard Voltage
VOLTAGE SPECIFICATIONTester Connection Condition Specified Condition Deicer relay terminal 2 - Body ground Engine switch on (IG) 11 to 14 V Deicer relay terminal 5 - Body ground Always 11 to 14 V - Measure the resistance according to the value (s) in the table below.
Standard Resistance
RESISTANCE REFERENCETester Connection Condition Specified Condition Deicer relay terminal 1 - E36-23 (FDEF) Always Below 1 Ω Deicer relay terminal 1 - Body ground Always 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step

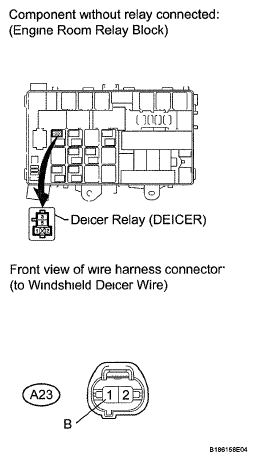

- CHECK HARNESS AND CONNECTOR (DEICER RELAY - WINDSHIELD DEICER WIRE)
- Remove the deicer relay from the engine room relay block.
- Disconnect the A23 windshield deicer wire connector.
- Measure the resistance according to the value (s) in the table below.
Standard Resistance
RESISTANCE REFERENCETester Connection Condition Specified Condition A23-1 (B) - Deicer relay terminal 3 Always Below 1 Ω Deicer relay terminal 3 - Body ground Always 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (WINDSHIELD DEICER WIRE - BODY GROUND)
- Disconnect the A23 windshield deicer wire connector
- Measure the resistance according to the value (s) in the table below
Standard Resistance
RESISTANCE REFERENCETester Connection Condition Specified Condition A23-2 (E) - Body ground Always Below 1 Ω
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- CHECK WINDSHIELD DEICER WIRE
- Disconnect the A23 windshield deicer wire connector.
- Measure the voltage according to the value (s) in the table below.
Standard Voltage
VOLTAGE SPECIFICATIONTester Connection Condition Specified Condition A23-1 (B) - A23-2 (E) Engine switch on (IG) and deicer switch on 11 to 14 V
NG: REPLACE AIR CONDITIONING AMPLIFIER (See REMOVAL )
OK: REPLACE WINDSHIELD GLASS (See REMOVAL )
