Windshield Deicer does not Operate: Wiring Diagram

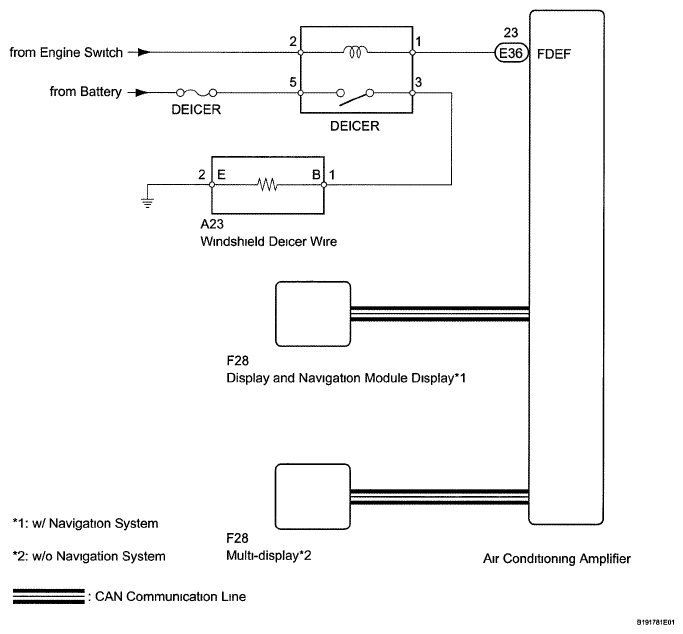

Fig 1: Air Conditioning Amplifier - Wiring Diagram
G05767554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
