Windshield Glass: Installation

  1. INSTALL WINDSHIELD GLASS STOPPER
    1. Install 2 new stoppers to the vehicle body as shown in the illustration
    2. Fig 1: Installing Stoppers To Vehicle Body
      G04952187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 WINDSHIELD GLASS STOPPER
    1. Apply Primer G to the glass where the stopper will be installed.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    2. Install 2 new stoppers onto the glass as shown in the illustration.

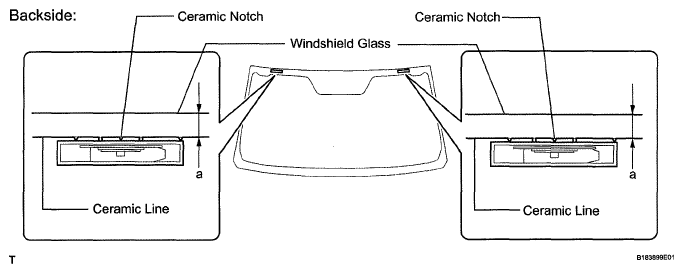

      Fig 2: Identifying Windshield Glass And Ceramic Notch (Backside)
      G05636388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard

      STANDARD SPECIFICATION

      Area Specified Condition
      a 13.2 mm (0.520 in.)
  3. INSTALL WINDSHIELD OUTSIDE MOLDING
    1. Using a brush or sponge, coat the contact surface of the glass and molding with Primer G as shown in the illustration.
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not coat the adhesive with Primer G.
      • Throw away any leftover primer.

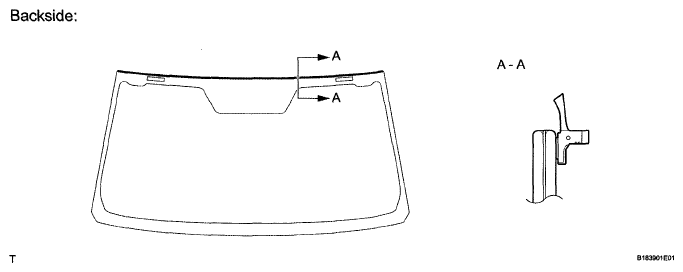

        Fig 3: Identifying Windshield Outside Molding (Backside)
        G05636389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not drive the vehicle for the amount of time written in the table below.

      Usage Time Frame

      TEMPERATURE SPECIFICATION

      Temperature Usage Time Frame
      35°C (95°F) 15 minutes
      20°C (68°F) 1 hour 40 minutes
      5°C (41°F) 8 hours
    2. Remove the peeling paper from the windshield outside molding. Install the molding as shown in the illustration.
  4. INSTALL WINDSHIELD GLASS ADHESIVE DAM
    1. Apply Primer G to the glass where the glass adhesive dam will be installed.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    2. Remove the peeling paper from the adhesive part of the dam. Install the dam (adhesive side) to the glass (Primer G area), but exclude the area above the notches on the upper part of the glass.

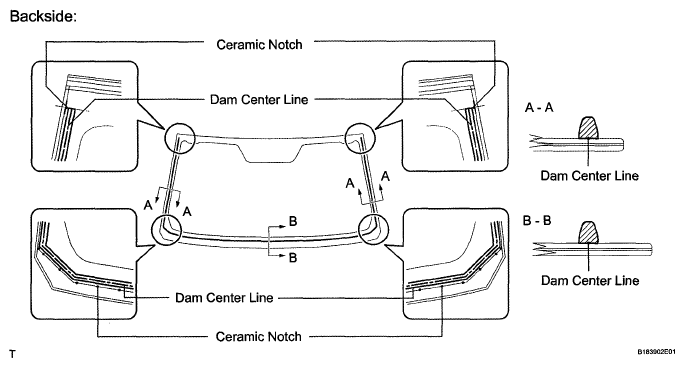

      Fig 4: Identifying Windshield Glass Dam Center Line And Ceramic Notch
      G05636390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT INNER WINDOW MOLDING COVER LH
    1. Apply Primer G to the glass where the inner window molding cover will be installed.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    2. Remove the peeling paper from the inner window molding cover. Install the cover to the glass, as shown in the illustration.

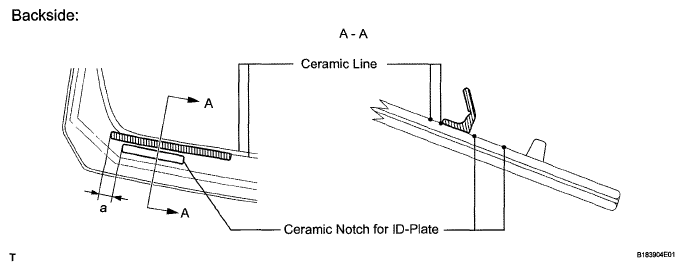

      Fig 5: Identifying Ceramic Notch For Id-Plate (Backside)
      G05636391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard

      STANDARD SPECIFICATION

      Area Specified Condition
      a 14.0 mm (0.551 in.)
  6. INSTALL WINDSHIELD GLASS
    1. Position the glass.
      1. Using suction cups, place the glass in the correct position.
      2. Check that the entire contact surface of the glass rim is perfectly even.
      3. Place matchmarks on the glass and vehicle body on the locations indicated in the illustration.

        HINT:

        • Placing matchmarks is only necessary when installing new glass. If it is the reused glass, matchmarks should already be present.
        • When reusing the glass, check and correct the matchmark positions.
          Fig 6: Identifying Matchmarks On Glass And Vehicle Body
          G05767501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
          NOTE: Check that the stoppers are attached to the vehicle body correctly.
      4. Using suction cups, remove the glass.
    2. Using a brush, apply Primer M to the exposed part of the vehicle body.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Do not apply primer to the adhesive.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    3. Using a brush or sponge, apply Primer G to the contact surface of the glass.
      Fig 7: Applying Primer G To Contact Surface Of Glass
      G04952196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

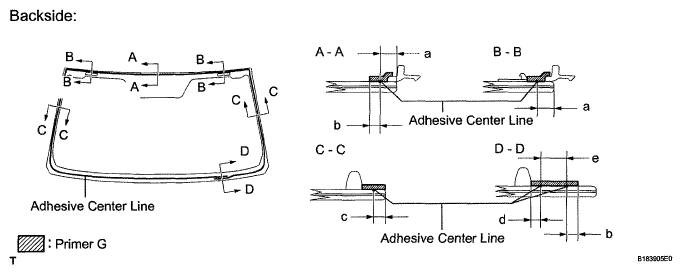

      Fig 8: Identifying Contact Surface Of Glass
      G05636394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard

      STANDARD SPECIFICATION

      Area Specified Condition
      a 9.0 mm (0.354 in.)
      b 7.0 mm (0.276 in.)
      c 3.0 mm (0.118 in.)
      d 4.0 mm (0.157 in.)
      e 8.0 mm (0.315 in.)

      HINT:

      If the primer is applied to an area that is not specified, apply non-residue solvent to a clean cloth and wipe off the excess primer before it dries.

      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    4. Using a brush or sponge, coat the windshield outside molding with Primer G as shown in the illustration.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    5. Apply adhesive to the glass.

      Adhesive:

      Toyota Genuine Windshield Glass Adhesive or equivalent

      Fig 9: Identifying Windshield Outside Molding With Primer G
      G05636395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Cut off the tip of the cartridge nozzle as shown in the illustration.

        HINT:

        After cutting off the tip, use all adhesive within the time written in the table below.

        Usage Time Frame

        TEMPERATURE SPECIFICATION

        Temperature Usage Time Frame
        35°C (95°F) 15 minutes
        20°C (68°F) 1 hour 40 minutes
        5°C (41°F) 8 hours
      2. Load the sealer gun with the cartridge.
      3. Apply adhesive to the glass as shown in the illustration.

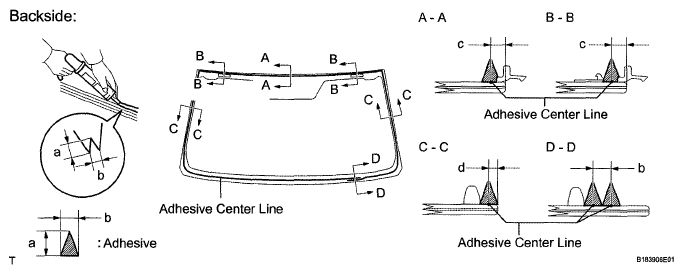

        Fig 10: Applying Adhesive To Glass
        G05636396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

        STANDARD SPECIFICATION

        Area Specified Condition
        a 12.0 mm (0.472 in.)
        b 8.0 mm (0.315 in.)
        c 9.0 mm (0.354 in.)
        d 3.0 mm (0.118 in.)
    6. Install the glass to the vehicle body.
      1. Using suction cups, position the glass so that the matchmarks are aligned. Press it in gently along the rim.
      2. Lightly press the outer surface of the glass to ensure that it is securely fit to the vehicle body.
        NOTE:
        • Check that the stoppers are attached to the vehicle body correctly.
        • Check that the vehicle body and glass have a small gap between them.
          Fig 11: Identifying Matchmarks On Glass And Vehicle Body
          G05767514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Hold the glass in place securely with protective tape or equivalent until the adhesive hardens.
        NOTE: Do not drive the vehicle for the amount of time written in the table below.

        Minimum Time

        TEMPERATURE SPECIFICATION

        Temperature Minimum Time Prior to Driving Vehicle
        35°C (95°F) 1 hour 30 minutes
        20°C (68°F) 5 hours
        5°C (41°F) 24 hours
    7. w/ Windshield Deicer System:

      Connect the windshield deicer connector.

  7. CHECK FOR LEAK AND REPAIR
    1. Conduct a leak test after the adhesive has completely hardened.
    2. Seal any leaks with auto glass sealer.
  8. INSTALL ROOF HEADLINING
    1. Return the roof headlining to its original position. Refer to the following procedures (See INSTALLATION ).
  9. INSTALL RAIN SENSOR TAPE  (See REMOVAL )
  10. INSTALL RAIN SENSOR  (See INSTALLATION )
  11. INSTALL RAIN SENSOR COVER  (See INSTALLATION )
  12. INSTALL INNER REAR VIEW MIRROR ASSEMBLY  (See INSPECTION )
  13. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER  (See INSTALLATION )
  14. INSTALL CENTER VISOR ASSEMBLY LH  (See INSTALLATION )
  15. INSTALL CENTER VISOR ASSEMBLY RH  (See INSTALLATION )
  16. INSTALL VISOR HOLDER  (See INSTALLATION )
  17. INSTALL VISOR ASSEMBLY LH  (See INSTALLATION )
  18. INSTALL VISOR ASSEMBLY RH  (See INSTALLATION )
  19. INSTALL VISOR BRACKET COVER  (See INSTALLATION )
  20. INSTALL MAP LIGHT ASSEMBLY  (See INSTALLATION )
  21. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  22. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
  23. INSTALL FRONT ASSIST GRIP SUB-ASSEMBLY  (See INSTALLATION )
  24. INSTALL ROOF DRIP SIDE FINISH MOLDING CLIP

    HINT:

    Perform the following procedures if replacing any roof drip side finish molding clip.

    NOTE: Remove the double-sided tape where the clips will be installed on the body and clean the body with a non-residue type solvent.
    1. Apply a 2 to 3 mm (0.0787 to 0.118 in.) bead of adhesive (3M DP-105 or equivalent) to a new roof drip side finish molding clip.
      Fig 12: Installing Roof Drip Side Finish Molding Clip
      G05636398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Adhesive strength (tensile strength): 13.7 MPa (140 kgf/cm2 , 1991 psi) or more when the temperature is 23°C (73°F).

    2. Apply primer to the body where the roof drip side finish molding clip will be installed
      NOTE: Do not let the primer dry.
    3. Install the clips to the positions on the roof panel shown in the illustration. Determine the locations and firmly press and install the roof drip side finish molding clip after lightly applying adhesive (3M DP-105 or equivalent).

      Standard

      STANDARD SPECIFICATION

      Area Specified Condition
      a -0.5 to 9.5 mm (0.0197 to 0.374 in.)
      b -3.0 to 3.0 mm (-0.118 to 0.118 in.)
    4. Install the windshield outside molding when 40 minutes or more have elapsed after pressing and installing the roof drip side finish molding clip.

      HINT:

      • Initial hardening time: 40 minutes
      • Complete hardening time: 48 hours
        Fig 13: Identifying Positions On Roof Panel
        G05636399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL NO. 3 WINDSHIELD OUTSIDE MOLDING CLIP

    HINT:

    Perform the following procedures if replacing any No. 3 windshield outside molding clip (s).

    1. Install a nose piece to an air riveter or hand riveter.
    2. Insert the mandrel part of a new No. 3 windshield outside molding clip into the nose piece.
    3. Using the riveter, install the No. 3 windshield outside molding clip (s) shown in the illustration.

      HINT:

      If the rivet cannot be cut, pull it once and cut it.

      Fig 14: Locating No. 3 Windshield Outside Molding Clip
      G05636400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.
        Fig 15: Identifying Riveter Incorrect And Correct Position
        G05636401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Confirm that the riveter are seated properly against the molding.
      • Do not tilt the riveter when installing the rivet to the molding.
      • Do not leave any space between the rivet head and molding.
        Fig 16: Caution For Riveter Position
        G05636402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • Do not leave any space between the molding and body. Firmly hold together the 2 items while installing the rivet.
        Fig 17: Identifying Riveter Incorrect And Correct Position
        G05636403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL NO. 4 WINDSHIELD MOLDING PAD
    1. Install the 4 No. 4 molding pads.

      HINT:

      Use the same procedure to install the 4 windshield molding pads on the other side

      Fig 18: Locating No. 4 Windshield Molding Pads
      G05636379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL WINDSHIELD OUTSIDE MOLDING LH
    1. Attach the 6 clips to install the molding.
    2. Remove the protective tape from the edges of the molding.
    3. Fig 19: Identifying Molding Clips
      G05636405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL WINDSHIELD OUTSIDE MOLDING RH

    HINT:

    Use the same procedures described for the LH side.

  29. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY  (See INSTALLATION )
  30. INSTALL FRONT FENDER MAIN SEAL LH  (See INSTALLATION )
  31. INSTALL FRONT FENDER MAIN SEAL RH  (See INSTALLATION )
  32. INSTALL UPPER RADIATOR SUPPORT SEAL  (See INSTALLATION )
  33. INSTALL ENGINE ROOM SIDE COVER LH  (See INSTALLATION )
  34. INSTALL ENGINE ROOM SIDE COVER RH  (See INSTALLATION )
  35. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  36. INSTALL FRONT WIPER ARM LH  (See INSTALLATION )
  37. INSTALL FRONT WIPER ARM RH  (See INSTALLATION )
