ABS Warning Light does not Come ON: Wiring Diagram

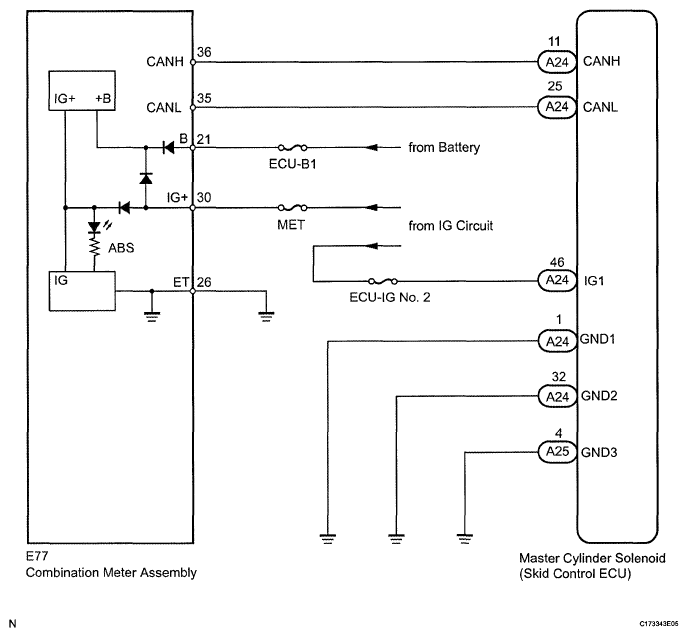

Fig 1: ABS Warning Light Not Come ON - Wiring Diagram
G05761646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
