Brake Warning Light does not Come ON: Wiring Diagram

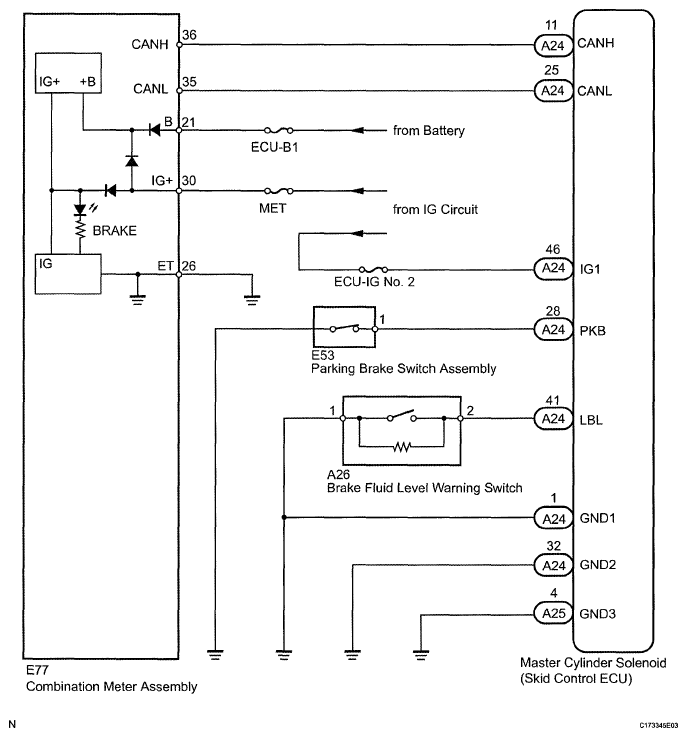

Fig 1: Brake Fluid Level Warning Switch - Wiring Diagram
G05761652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
