Crawl Indicator Light Remains ON: Wiring Diagram

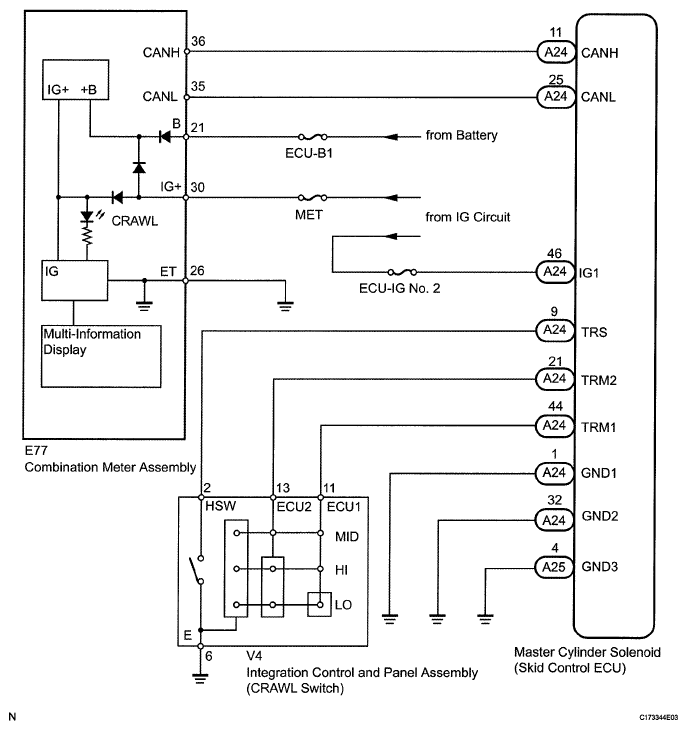

Fig 1: CRAWL Switch - Wiring Diagram (Crawl Indicator Light Remains ON)
G05761650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
