DTC C1231/31 Steering Angle Sensor Circuit Malfunction: Wiring Diagram

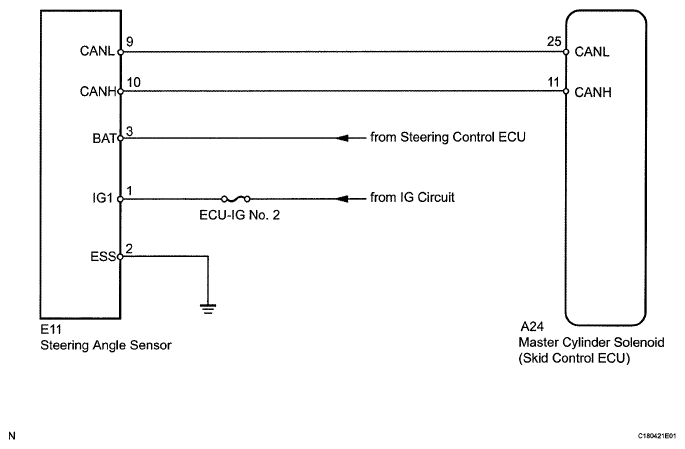

Fig 1: Steering Angle Sensor - Wiring Diagram
G05761606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
