Inspection Procedure
NOTE:
When replacing the master cylinder solenoid, perform zero point calibration (See
CALIBRATION ).

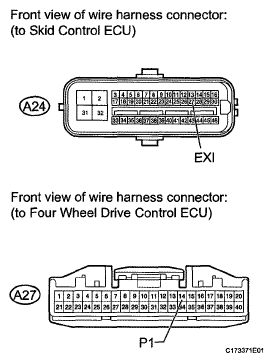

- INSPECT SKID CONTROL ECU (EXI TERMINAL)
- Disconnect the A24 skid control ECU connector.
- Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
VOLTAGE SPECIFICATIONTester Connection Condition Specified Condition A24-27 (EXI) - Body ground Center differential locked (Center differential lock switch on) Below 1.5 V A24-27 (EXI) - Body ground Center differential free (Center differential lock switch off) 11 to 14 V NG: Go to step 2
OK: REPLACE MASTER CYLINDER SOLENOID (See DISASSEMBLY )
- INSPECT CENTER DIFFERENTIAL LOCK SWITCH
- Remove the center differential lock switch (See REMOVAL ).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
RESISTANCE SPECIFICATIONTester Connection Switch Condition Specified Condition 6 (L) - 9 (CPU) Switch pressed and held Below 1 Ω Switch not pressed 10 kΩ or higher NG: REPLACE CENTER DIFFERENTIAL LOCK SWITCH (See REMOVAL )
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: Go to next step
- INSPECT FOUR WHEEL DRIVE CONTROL ECU
- Check the center differential lock system (See INSPECTION ).
NG: REPLACE FOUR WHEEL DRIVE CONTROL ECU (See REMOVAL )
OK: Go to next step

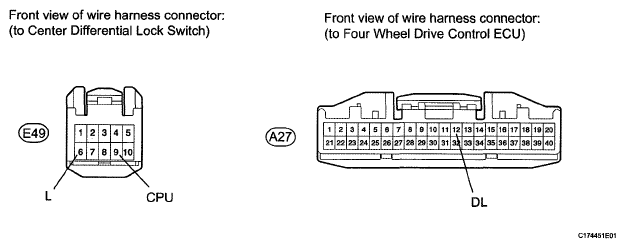

- CHECK HARNESS AND CONNECTOR (FOUR WHEEL DRIVE CONTROL ECU - CENTER DIFFERENTIAL LOCK SWITCH)
- Disconnect the A27 four wheel drive control ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition A27-12 (DL) - E49-9 (CPU) Always Below 1 Ω A27-12 (DL) - Body ground Always 10 kΩ or higher E49-6 (L) - Body ground Always Below 1 Ω NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - FOUR WHEEL DRIVE CONTROL ECU)
- Disconnect the A24 skid control ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition A24-27 (EXI) - A24-14 (P1) Always Below 1 Ω A24-27 (EXI) - Body ground Always 10 kΩ or higher NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK: REPLACE MASTER CYLINDER SOLENOID (See DISASSEMBLY )
