VSC OFF Indicator Light Remains ON: Wiring Diagram

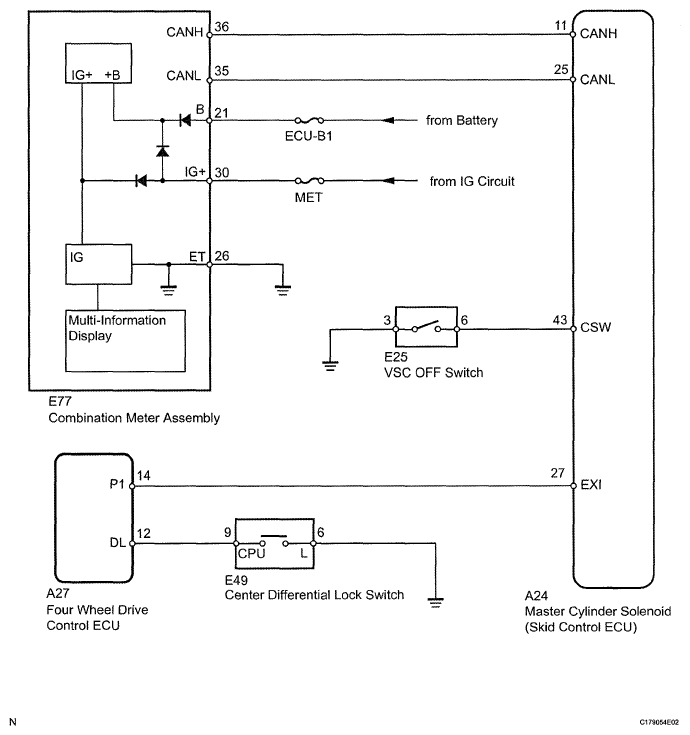

Fig 1: Center Differential Lock Switch - Wiring Diagram
G05761658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
