Yaw Rate And Deceleration Sensor: Installation
- INSTALL YAW RATE SENSOR

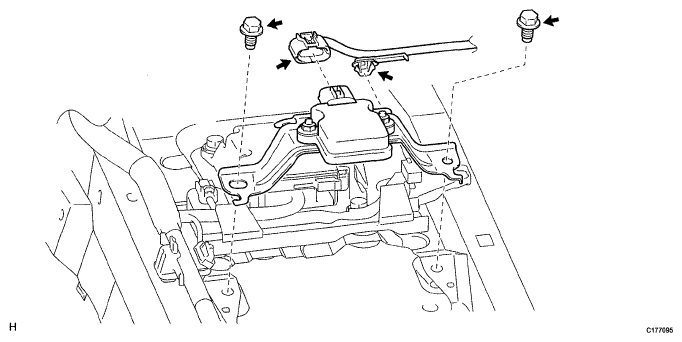

- Connect the sensor connector and then attach the clamp to the hole of the sensor bracket.NOTE: Securely connect the connector.
- Install the yaw rate sensor with the 2 bolts.
Torque: 15 N*m (148 kgf*cm, 11 ft.*lbf)
NOTE:- Make sure that the sensor is oriented correctly.
- If the sensor is dropped, replace it.
- When installing the sensor, make sure to avoid impacts to the sensor.
- Connect the sensor connector and then attach the clamp to the hole of the sensor bracket.
- INSTALL REAR CONSOLE BOX SUB-ASSEMBLY (w/o Cool Box)
- Install the rear console box sub-assembly (See INSTALLATION ).
- INSTALL COOLING BOX ASSEMBLY (w/Cool Box)
- Install the cooling box assembly (See INSTALLATION ).
- INSTALL FRONT SEAT ASSEMBLY LH (w/Cool Box)
- Install the front seat assembly LH (See INSTALLATION ).
- CHARGE REFRIGERANT (w/Cool Box) (See REPLACEMENT )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
- WARM UP ENGINE (w/Cool Box) (See REPLACEMENT )
- CHECK FOR REFRIGERANT GAS LEAK (w/Cool Box) (See REPLACEMENT )
- INSTALL UPPER RADIATOR SUPPORT SEAL (w/Cool Box) (See INSTALLATION )
- INSTALL ENGINE ROOM SIDE COVER RH (w/Cool Box) (See INSTALLATION )
- INSTALL ENGINE ROOM SIDE COVER LH (w/Cool Box) (See INSTALLATION )
- PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
- Perform the yaw rate sensor zero point calibration (See CALIBRATION ).
- CHECK YAW RATE SENSOR SIGNAL
- Check the yaw rate sensor signal (See TEST MODE PROCEDURE ).
