Front Fog Light: Notes

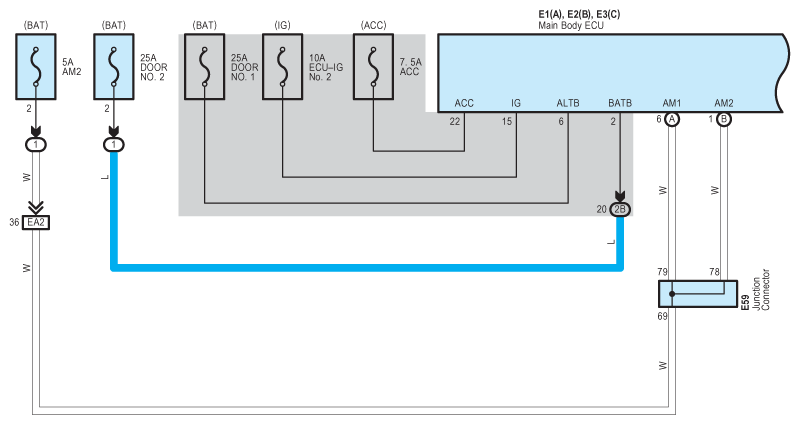

Fig 1: Front Fog Light - Circuit Diagram (1 Of 4)
G07596813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

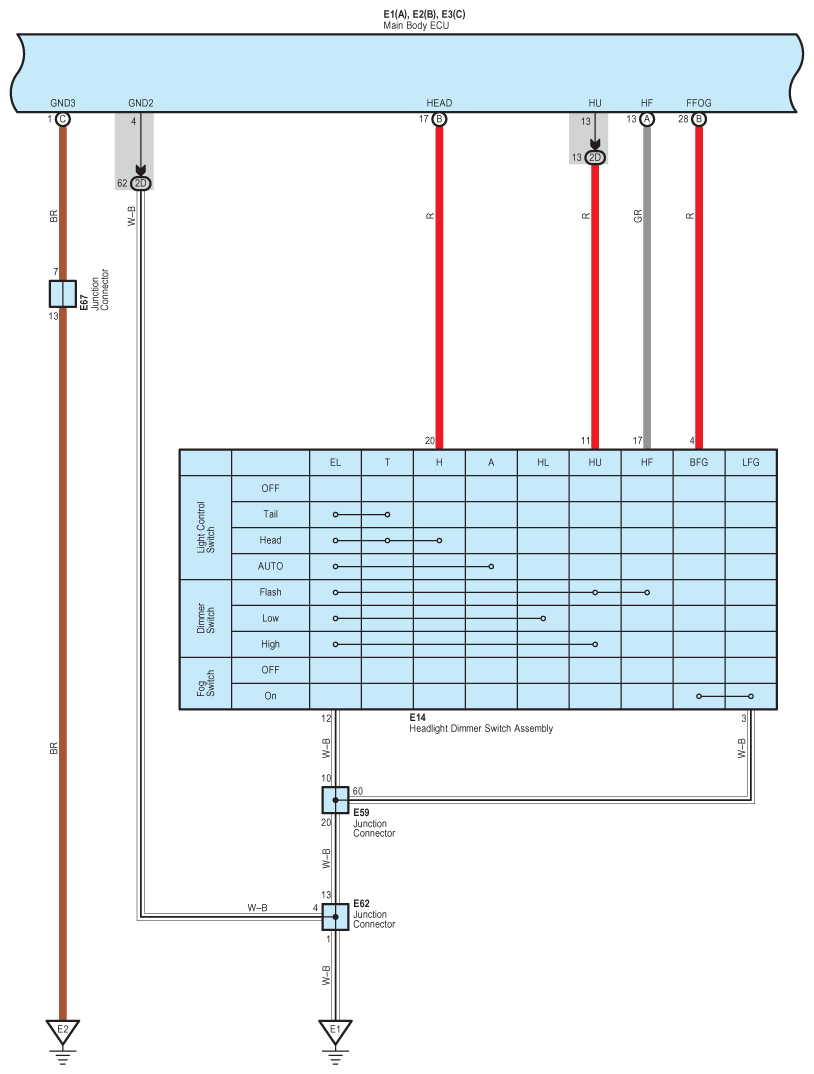

Fig 2: Front Fog Light - Circuit Diagram (2 Of 4)
G07596814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

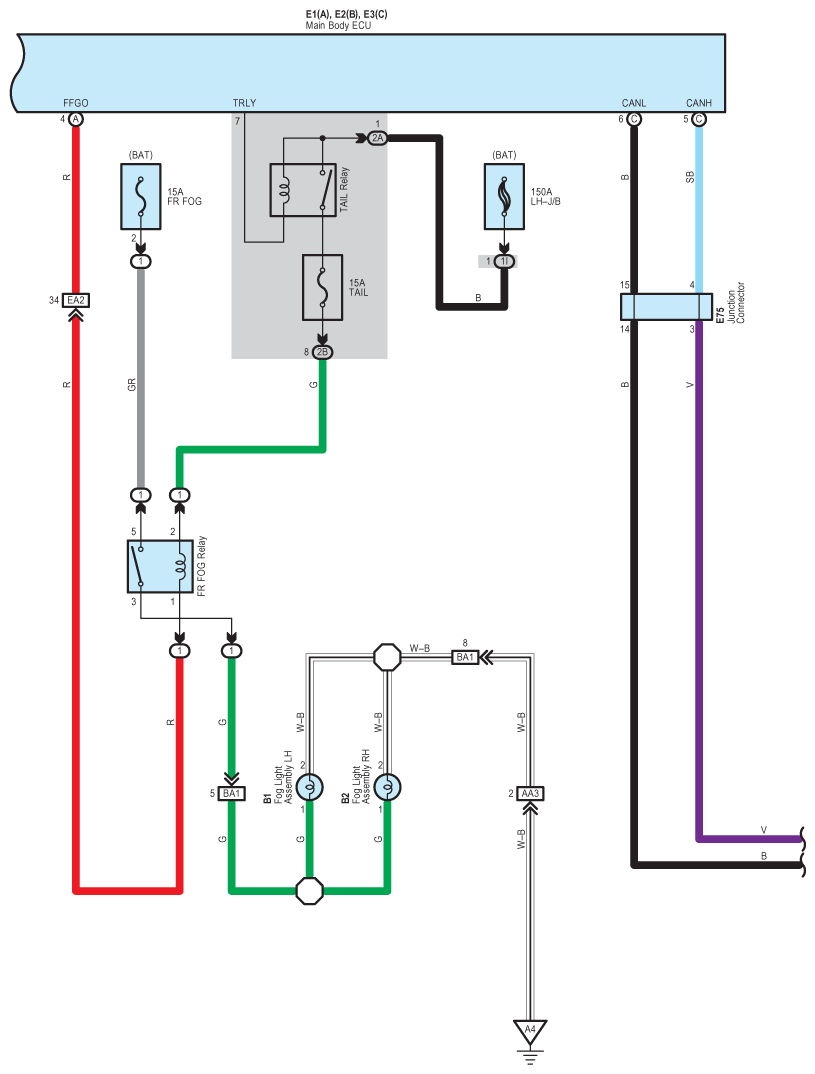

Fig 3: Front Fog Light - Circuit Diagram (3 Of 4)
G07596815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

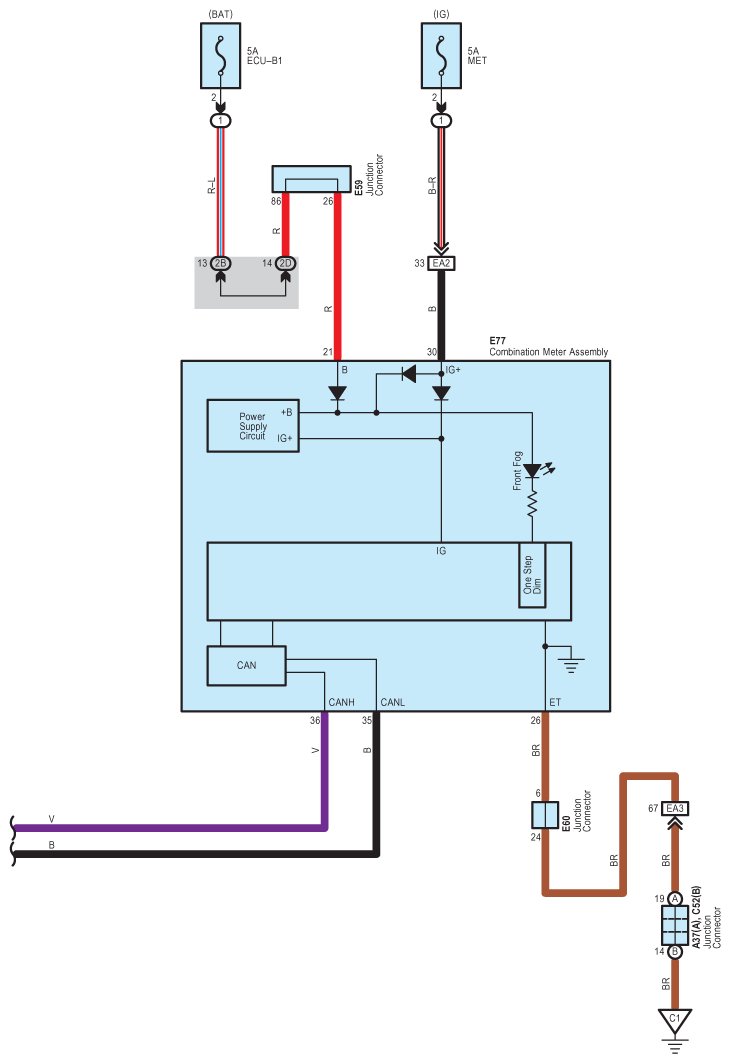

Fig 4: Front Fog Light - Circuit Diagram (4 Of 4)
G07596816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
