Multi Mode 4WD: Notes

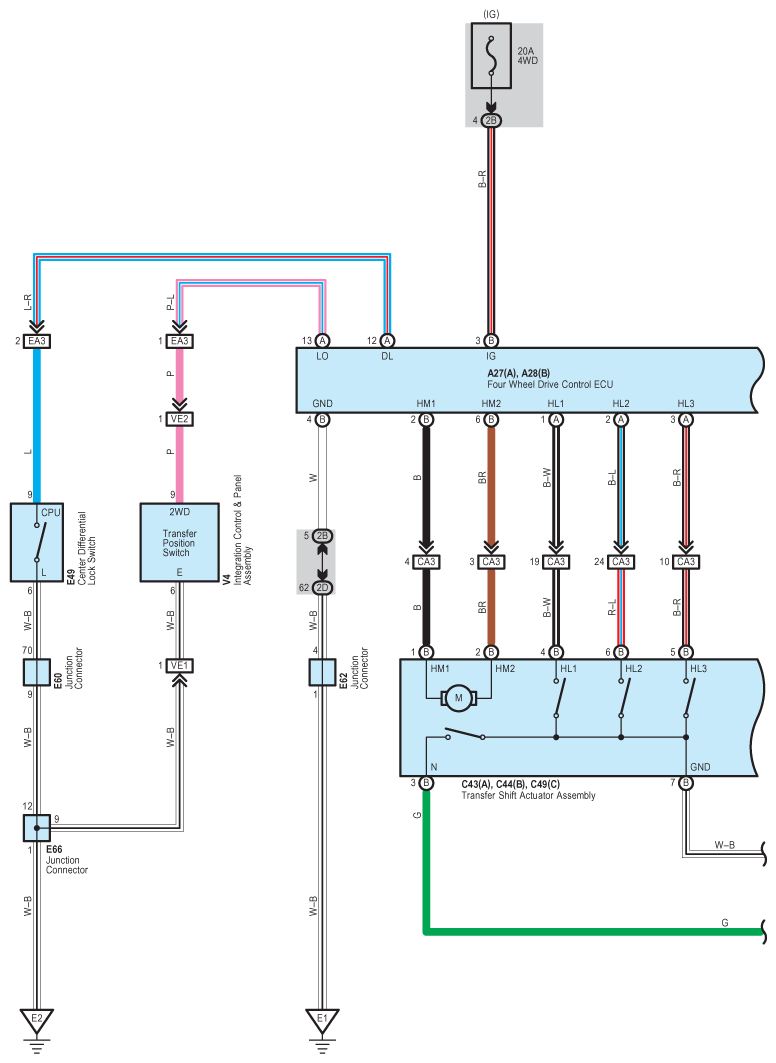

Fig 1: Multi Mode 4WD - Circuit Diagram (1 Of 7)

G07596899

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

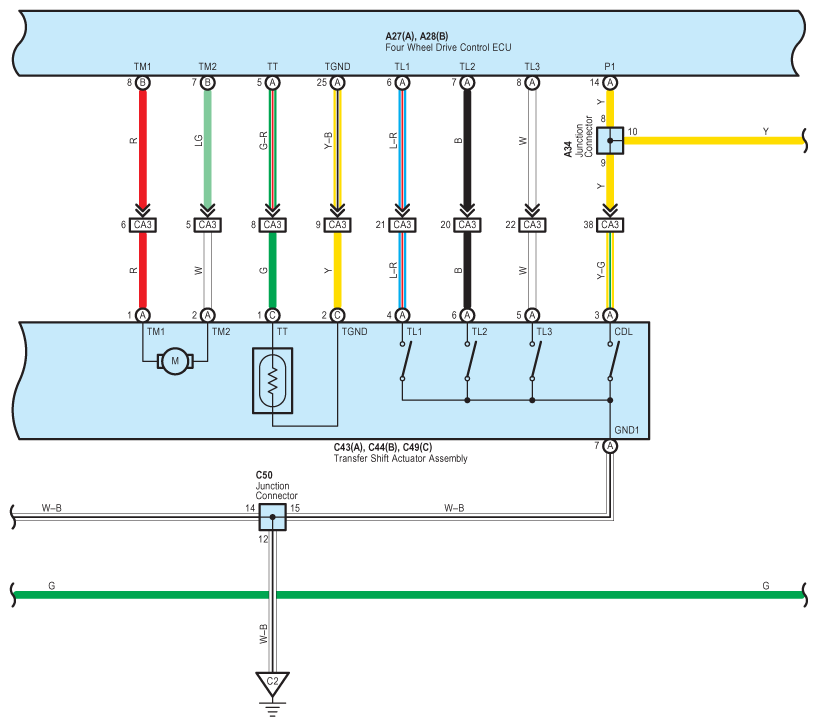

Fig 2: Multi Mode 4WD - Circuit Diagram (2 Of 7)

G07596900

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

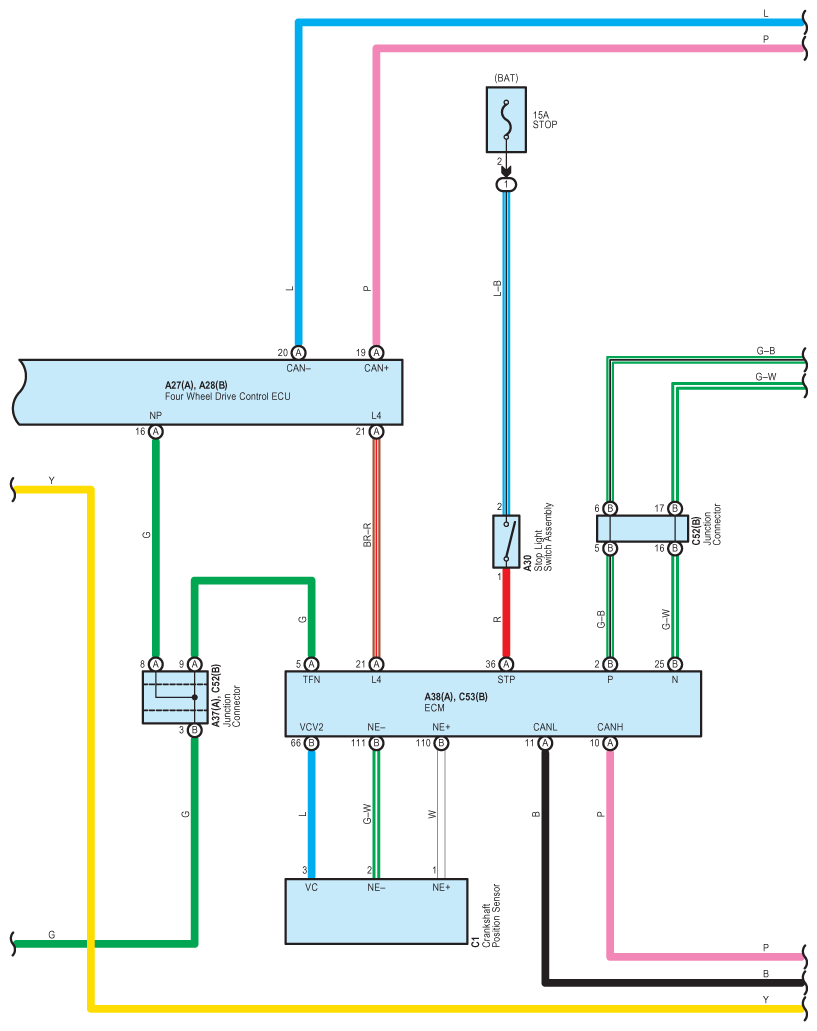

Fig 3: Multi Mode 4WD - Circuit Diagram (3 Of 7)

G07596901

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

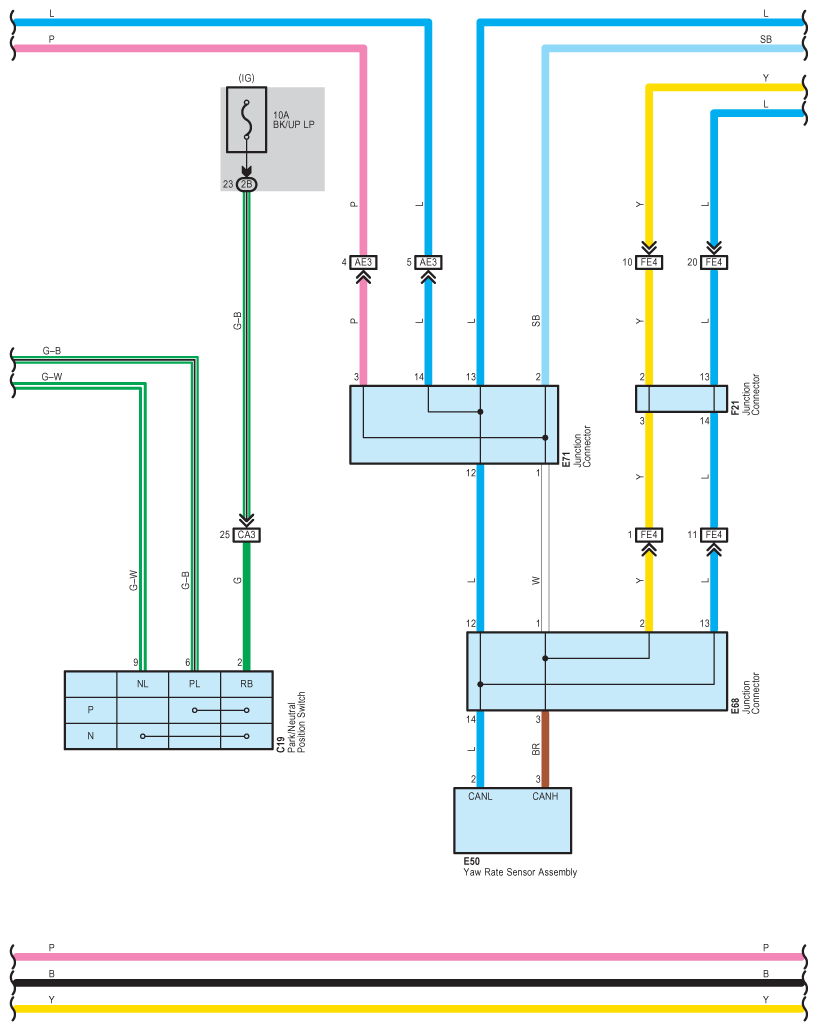

Fig 4: Multi Mode 4WD - Circuit Diagram (4 Of 7)

G07596902

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

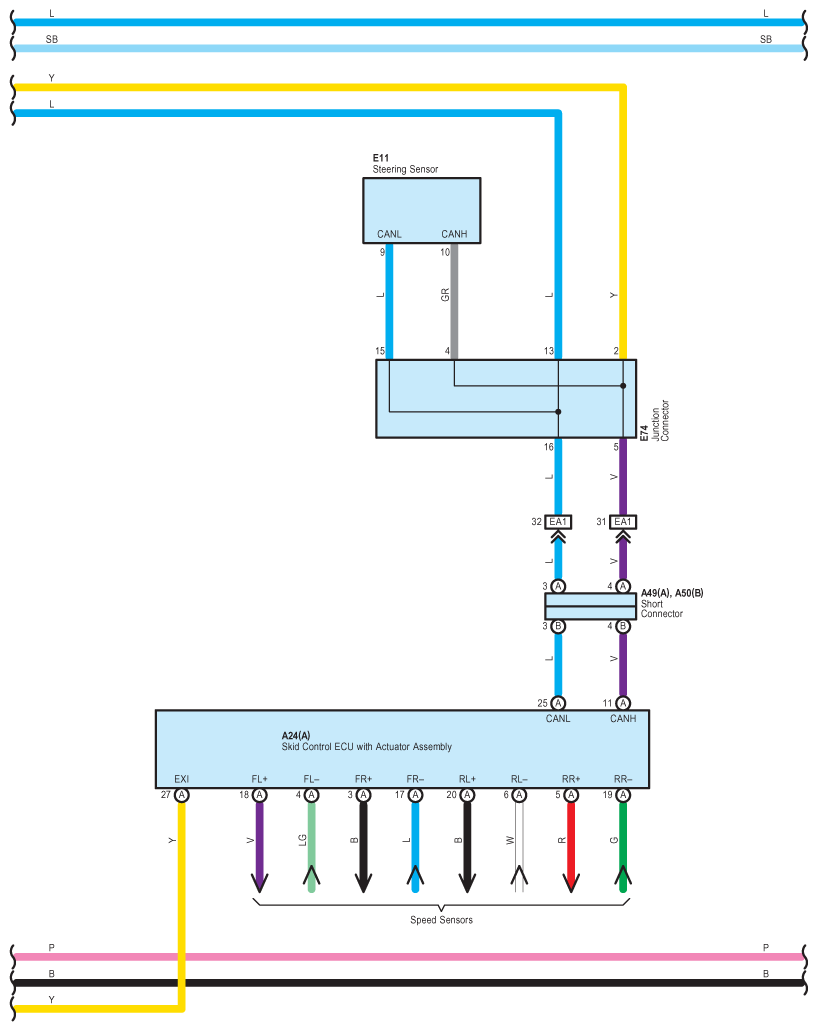

Fig 5: Multi Mode 4WD - Circuit Diagram (5 Of 7)

G07596903

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

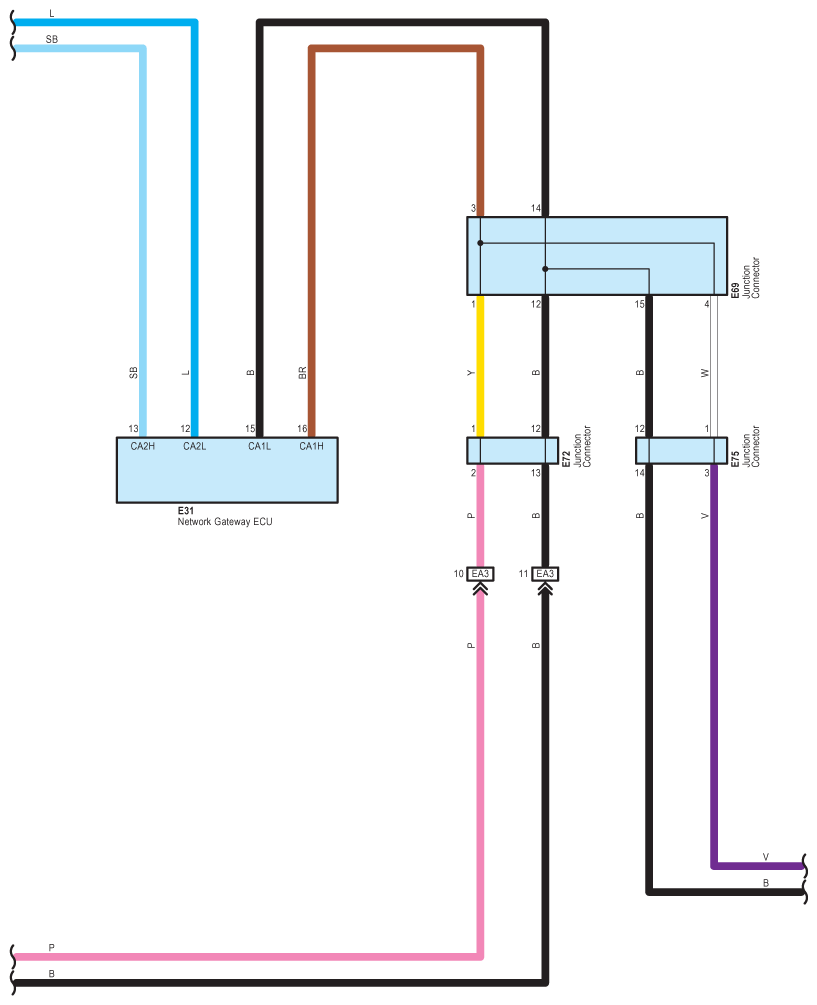

Fig 6: Multi Mode 4WD - Circuit Diagram (6 Of 7)

G07596904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

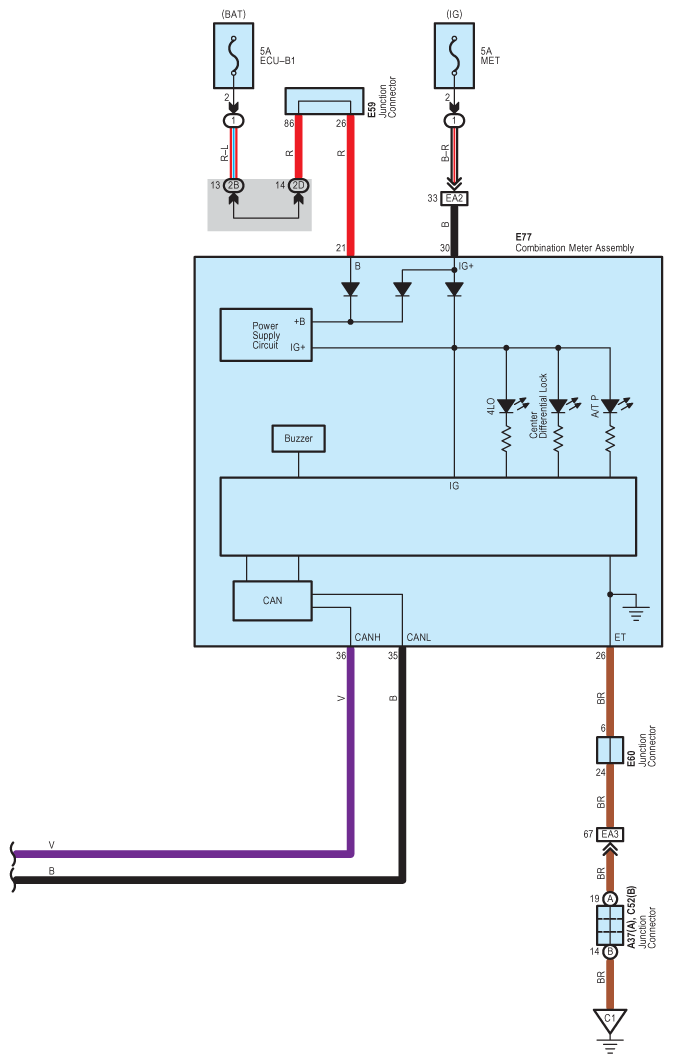

Fig 7: Multi Mode 4WD - Circuit Diagram (7 Of 7)

G07596905

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
