Fuel Sender Gauge Assembly: Components

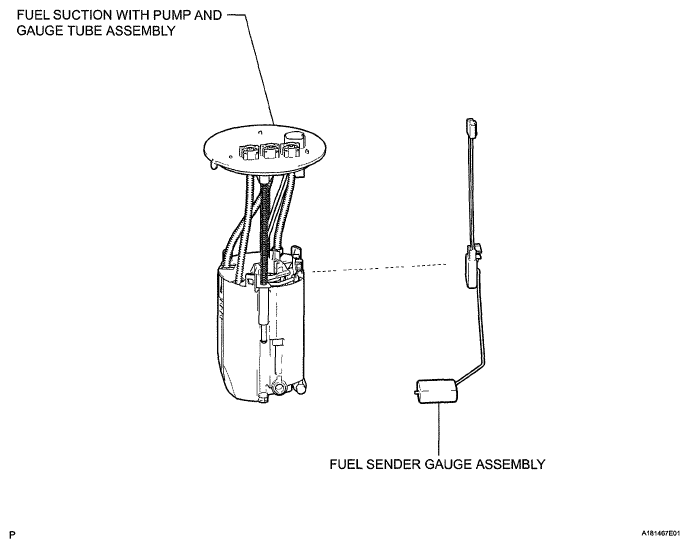

Fig 1: Identifying Fuel Sender Gauge Assembly
G05759644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
