DTC P0500 Vehicle Speed Sensor "A": Description

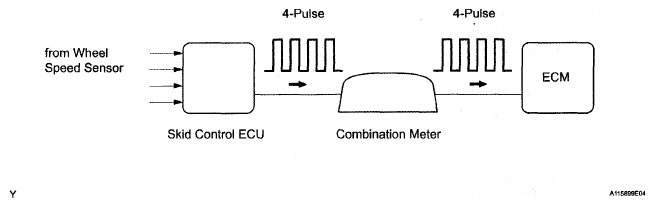

The speed sensor detects the wheel speed and sends the appropriate signals to the skid control ECU. The skid control ECU converts these wheel speed signals into a 4-pulse signal and outputs it to the ECM via the combination meter. The ECM determines the vehicle speed based on the frequency of these pulse signals.
DTC DETECTION CONDITION CHART
| DTC Code | DTC Detection Condition | Trouble Area |
|---|---|---|
| P0500 | While the vehicle is being driven, no vehicle speed sensor signal is transmitted to the ECM (2 trip detection logic). |
|
