System Diagram

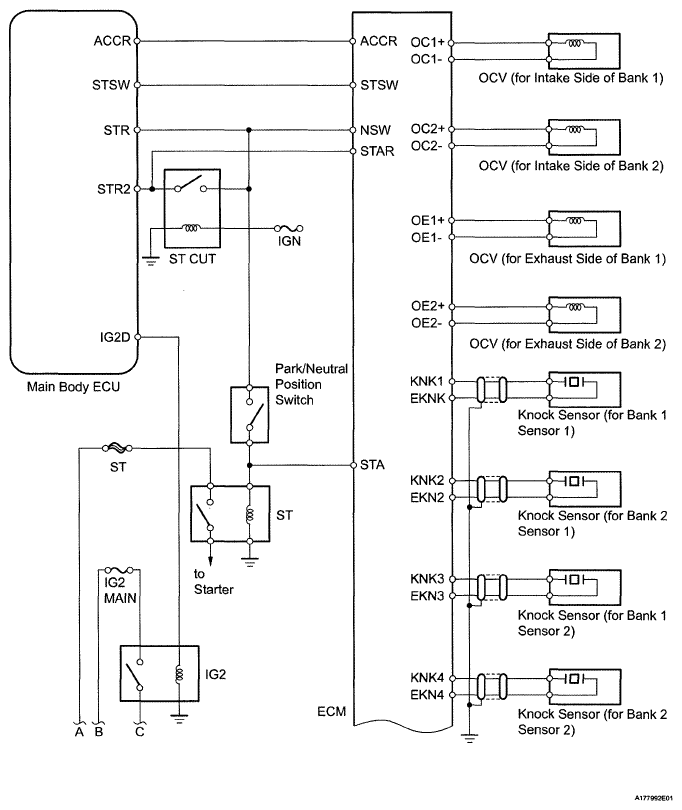

Fig 1: SFI System Diagram (1 Of 6)
G05627803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

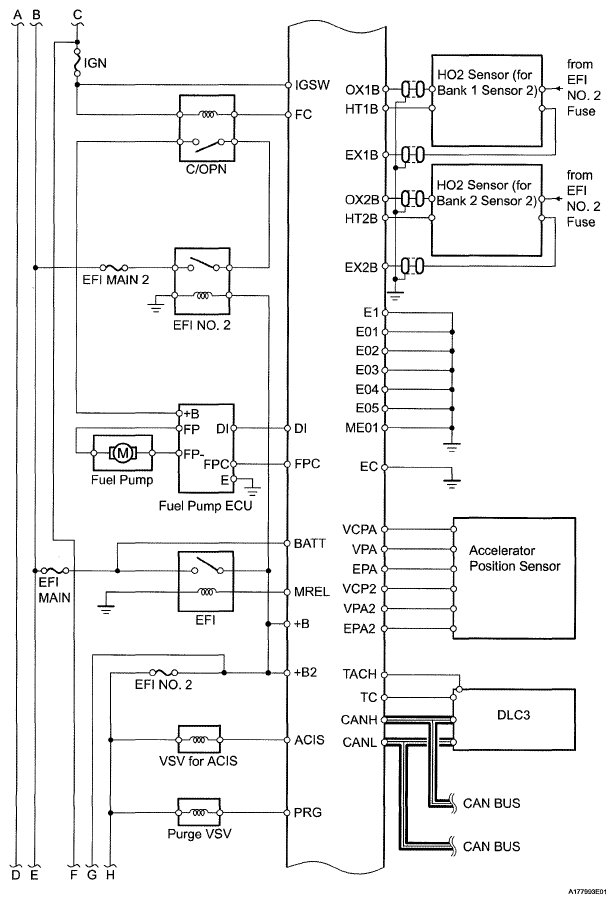

Fig 2: SFI System Diagram (2 Of 6)
G05627804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

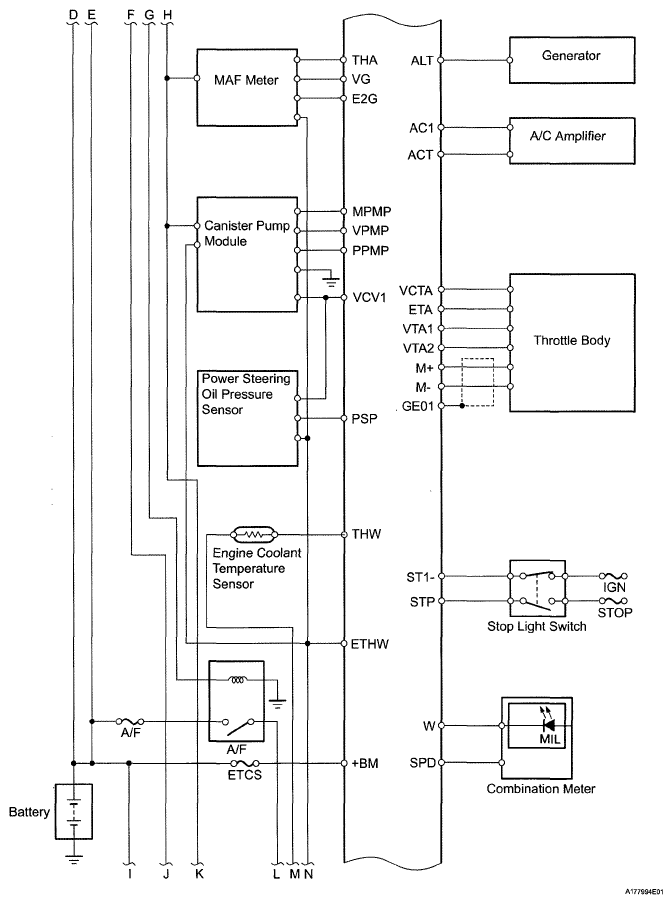

Fig 3: SFI System Diagram (3 Of 6)
G05627805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

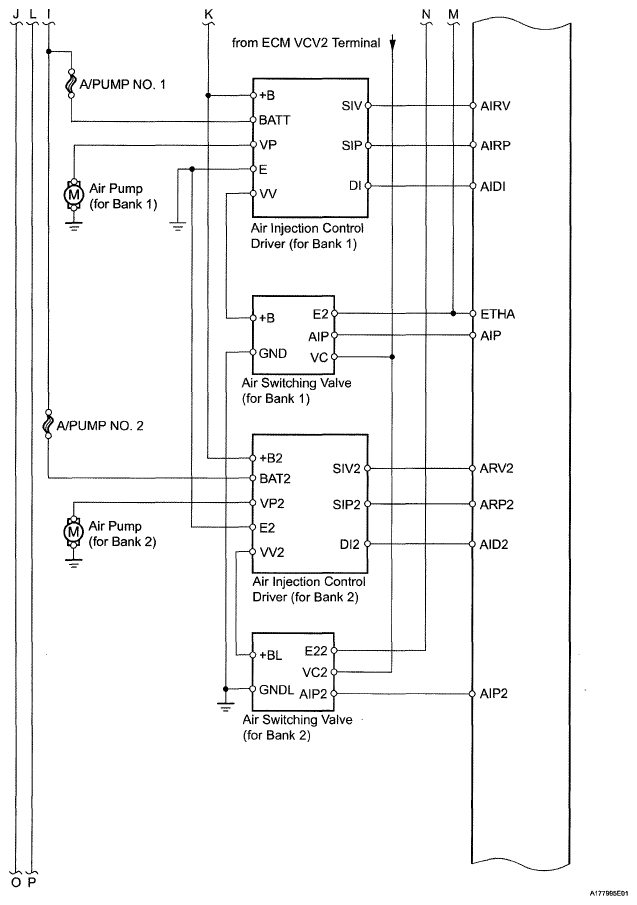

Fig 4: SFI System Diagram (4 Of 6)
G05627806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

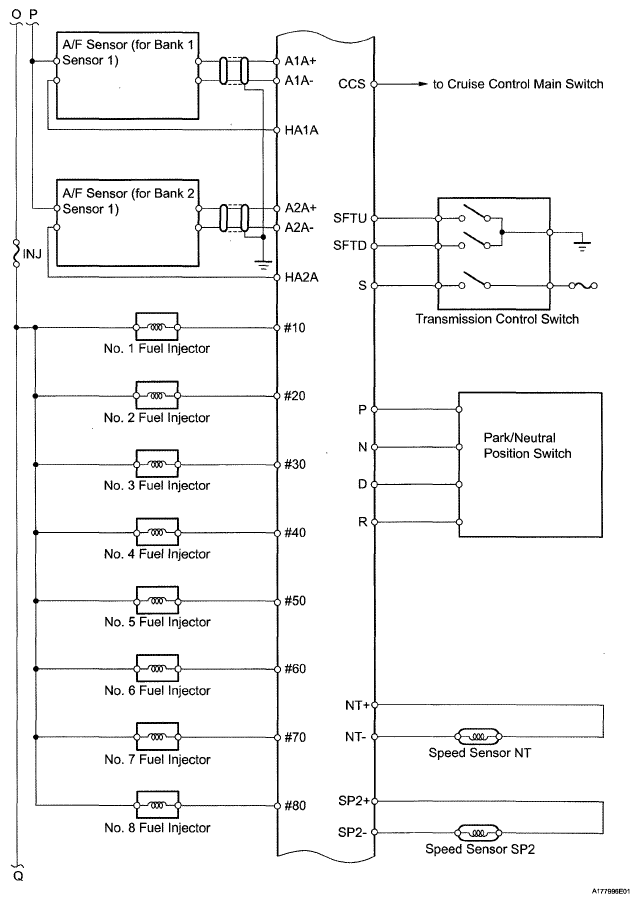

Fig 5: SFI System Diagram (5 Of 6)
G05627807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

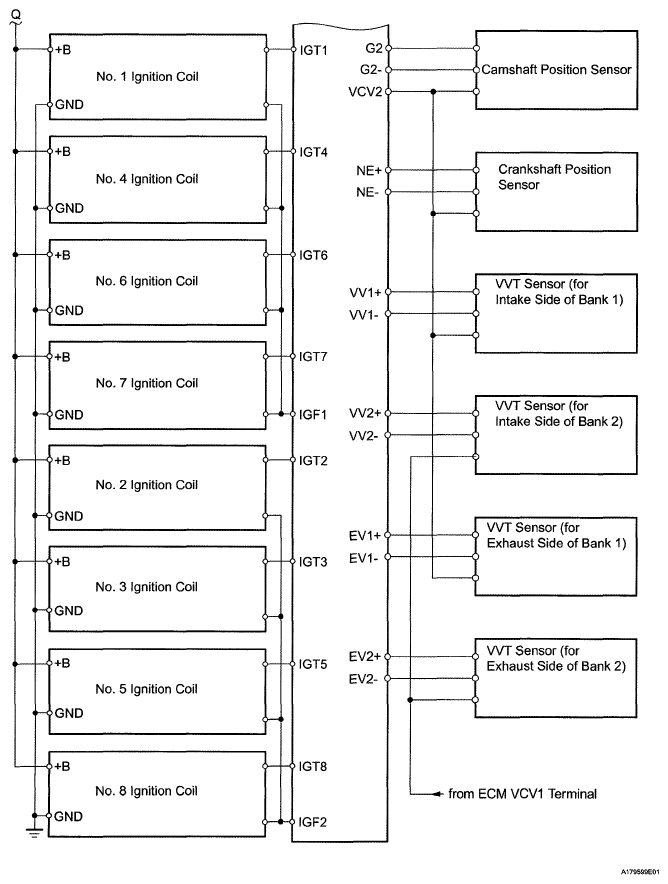

Fig 6: SFI System Diagram (6 Of 6)
G05627808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
