Cranking Holding Function Circuit: Wiring Diagram

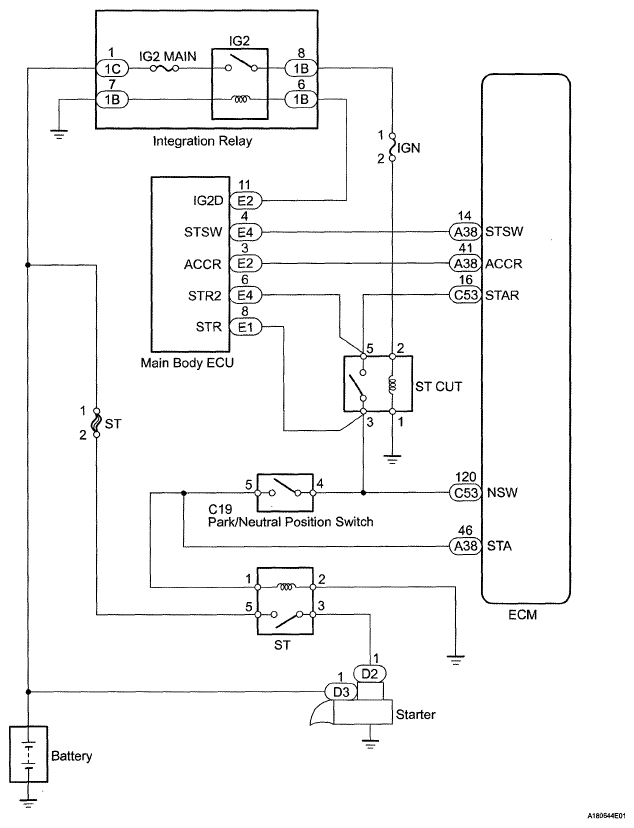

Fig 1: Cranking Holding Control System - Wiring Diagram
G05628039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
