Ignition Coil And Spark Plug: Installation

INSTALL SPARK PLUG
1. Install the 8 spark plugs.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
INSTALL IGNITION COIL ASSEMBLY
1. Install the 8 ignition coils with the 8 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

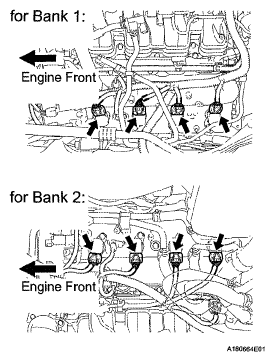

  Fig 1: Locating Ignition Coil Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 8 ignition coil connectors.

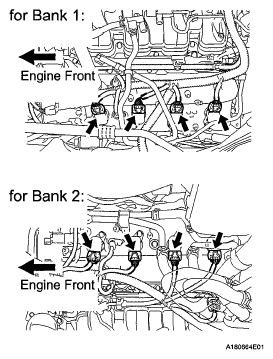

  Fig 2: Locating Ignition Coil Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT WATER BY-PASS PIPE ASSEMBLY
1. Connect the water by-pass pipe to the cylinder head cover and automatic transmission with the 3 bolts.
  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  Fig 3: Locating Water Bypass Pipe Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the water by-pass pipe to the cylinder head cover and timing chain cover with the 2 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
INSTALL AIR CLEANER ASSEMBLY (See INSTALLATION )
INSTALL AIR CLEANER HOSE ASSEMBLY (See INSTALLATION )
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL UPPER RADIATOR SUPPORT SEAL (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER RH (See INSTALLATION )

Fig 4: Locating Water By-Pass Pipe Assembly Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE ROOM SIDE COVER LH (See INSTALLATION )
INSTALL NO. 2 ENGINE UNDER COVER (See INSTALLATION )
