Power Steering Oil Pressure Switch: Components

Fig 1: Power Steering Oil Pressure Switch Replacement Components With Torque Specifications (1 Of 2)
G05757927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

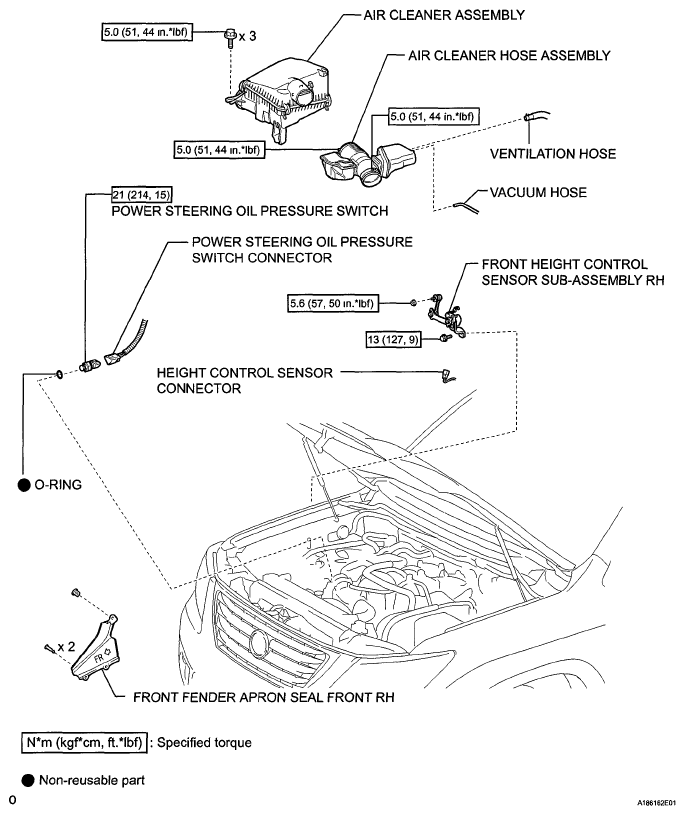

Fig 2: Power Steering Oil Pressure Switch Replacement Components With Torque Specifications (2 Of 2)
G05757928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
