Front Seat Inner Belt Assembly: Inspection

  1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH
    1. Check the buckle switch.

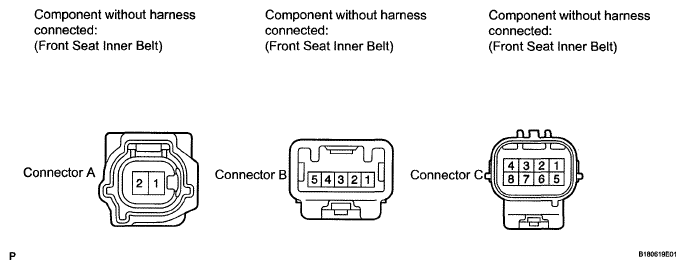

      Fig 1: Identifying Front Seat Inner Belt Connector End View Terminal LH
      G05632168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value (s) in the table below.

        Standard Resistance

        RESISTANCE REFERENCE

        Tester Connection Condition Specified Condition
        B-4 - B-5 Seat belt fastened (Buckle switch is on) Below 1 Ω
        Seat belt unfastened (Buckle switch is off) 1 MΩ or higher
        A-1 - C-4 Always Below 1 Ω
        A-2 - C-8 Always Below 1 Ω

        If the result is not as specified, replace the inner belt assembly.

  2. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH
    1. Check the buckle switch.

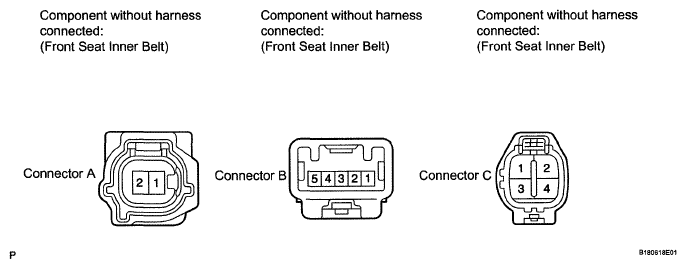

      Fig 2: Identifying Front Seat Inner Belt Connector End View Terminal RH
      G05632169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value (s) in the table below

        Standard Resistance

        RESISTANCE REFERENCE

        Tester Connection Condition Specified Condition
        B-4 - B-5 Seat belt fastened (Buckle switch is on) Below 1 Ω
        Seat belt unfastened (Buckle switch is off) 1 MΩ or higher
        A-1 - C-3 Always Below 1 Ω
        A-2 - C-4 Always Below 1 Ω

        If the result is not as specified, replace the inner belt assembly.

  3. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH (w/ Climate Control Seat System)
    1. Check the buckle switch.

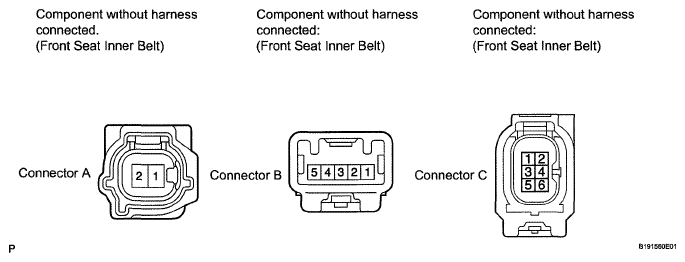

      Fig 3: Identifying Front Seat Inner Belt Connector End View Terminal RH
      G05766359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Measure the resistance according to the value (s) in the table below.

        Standard Resistance

        RESISTANCE REFERENCE

        Tester Connection Condition Specified Condition
        B-4 - B-S Seat belt fastened (Buckle switch is on) Below 1 Ω
        Seat belt unfastened (Buckle switch is off) 1 MΩ or higher
        A-1 - C-3 Always Below 1 Ω
        A-2 - C-4 Always Below 1 Ω

        If the result is not as specified, replace the inner belt assembly.
