Indicator Circuit: Description

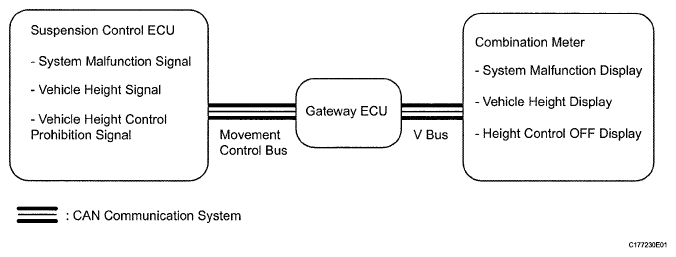

The multi-information display in the combination meter displays the vehicle height, the state of the height control OFF switch, and system malfunctions. To display items, the multi-information display uses CAN communication between the combination meter and suspension control ECU via the gateway ECU.
