Control Valve Assembly: Components

Fig 1: Identifying Control Valve Assembly Replacement Components With Torque Specifications (1 Of 2)
G05638701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

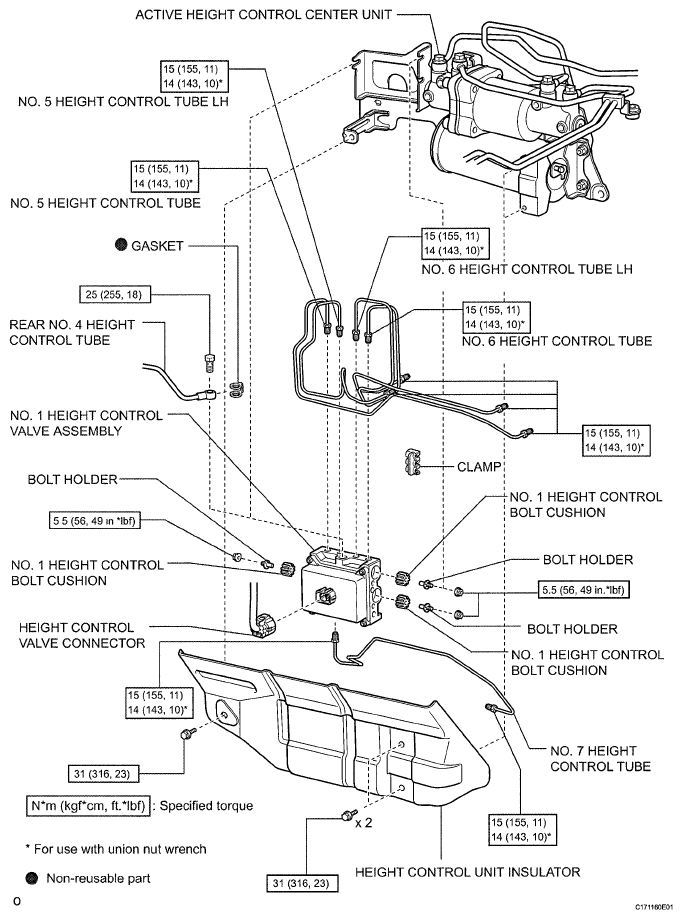

Fig 2: Identifying Control Valve Assembly Replacement Components With Torque Specifications (2 Of 2)
G05761385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
