DAMPING FORCE CONTROL ACTUATOR (for Front Side): Components

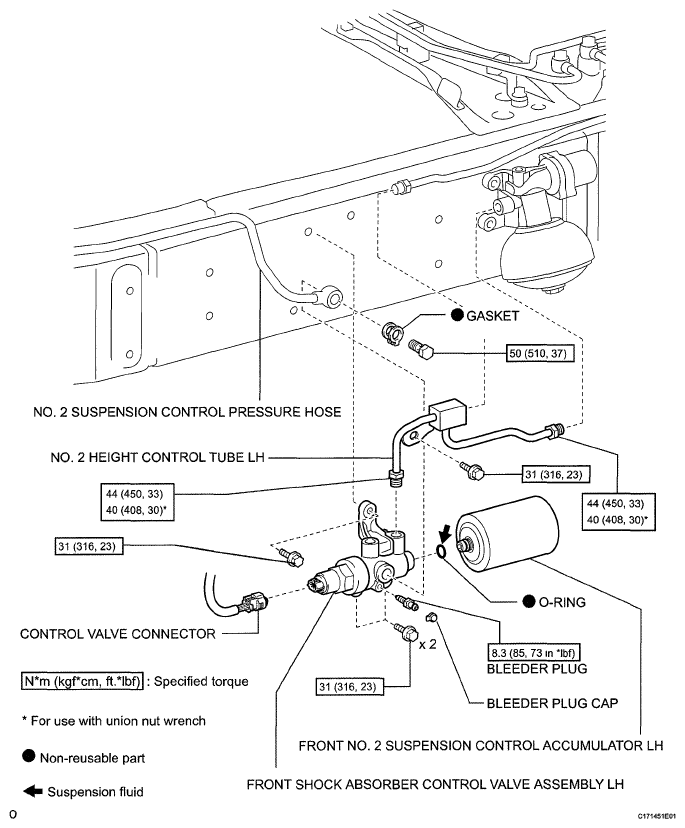

Fig 1: Identifying Damping Force Control Actuator [For Front Side] Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

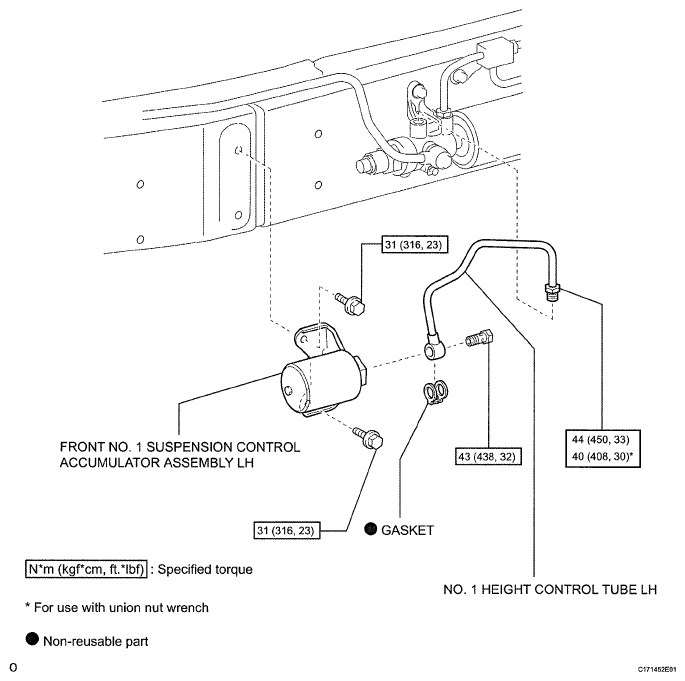

Fig 2: Identifying Damping Force Control Actuator [For Front Side] Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

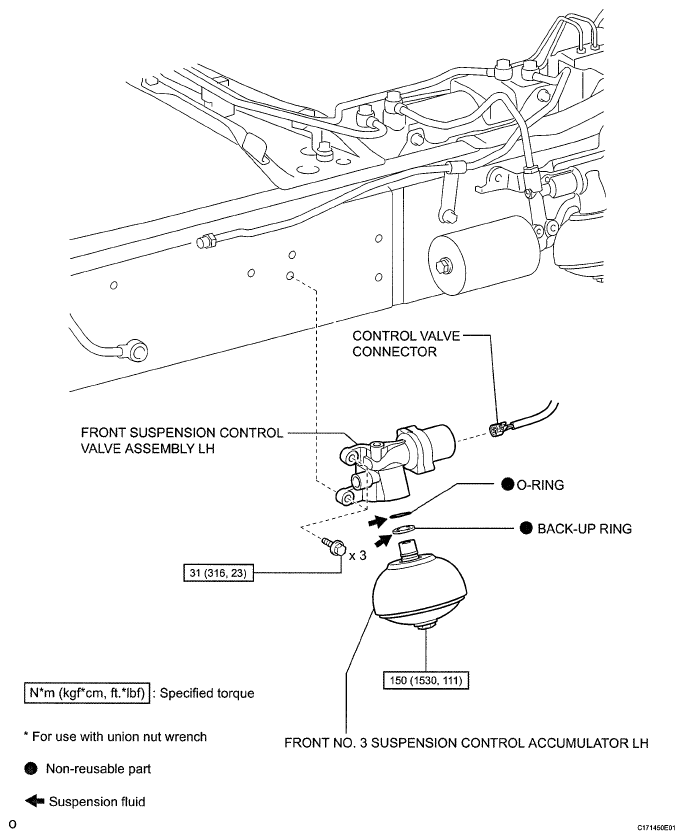

Fig 3: Identifying Damping Force Control Actuator [For Front Side] Replacement Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Damping Force Control Actuator [For Front Side] Replacement Components With Torque Specifications (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
