Suspension Control Cylinder: Components

Fig 1: Identifying Suspension Control Cylinder Replacement Components With Torque Specifications (1 Of 5)
G05761407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

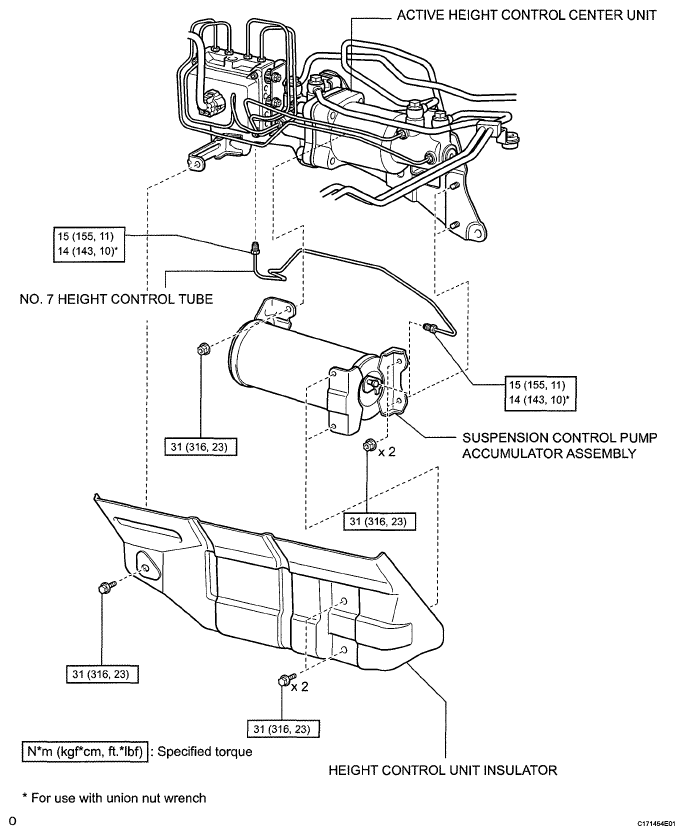

Fig 2: Identifying Suspension Control Cylinder Replacement Components With Torque Specifications (2 Of 5)
G05761408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

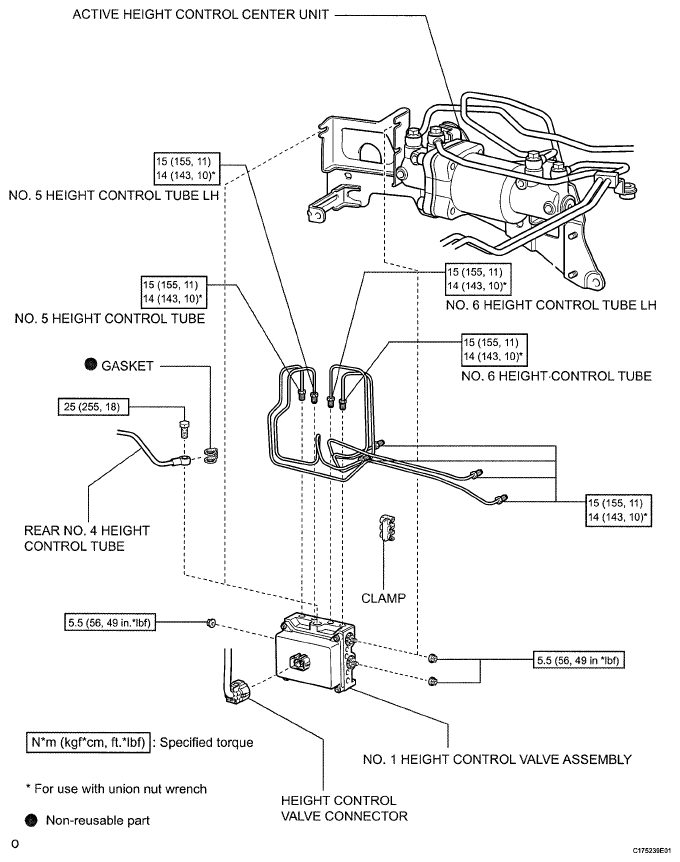

Fig 3: Identifying Suspension Control Cylinder Replacement Components With Torque Specifications (3 Of 5)
G05761409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

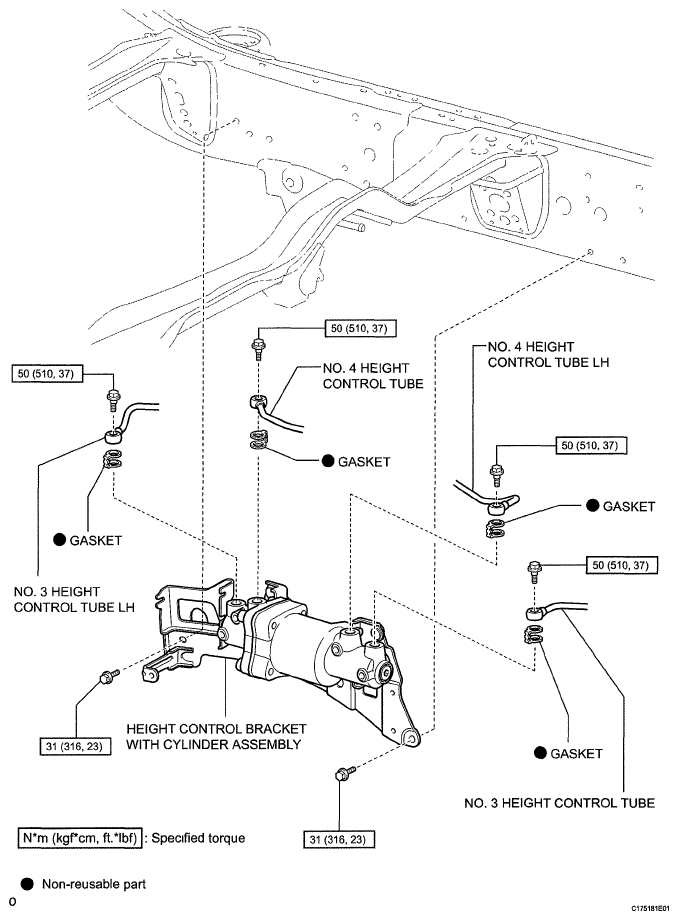

Fig 4: Identifying Suspension Control Cylinder Replacement Components With Torque Specifications (4 Of 5)
G05761410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

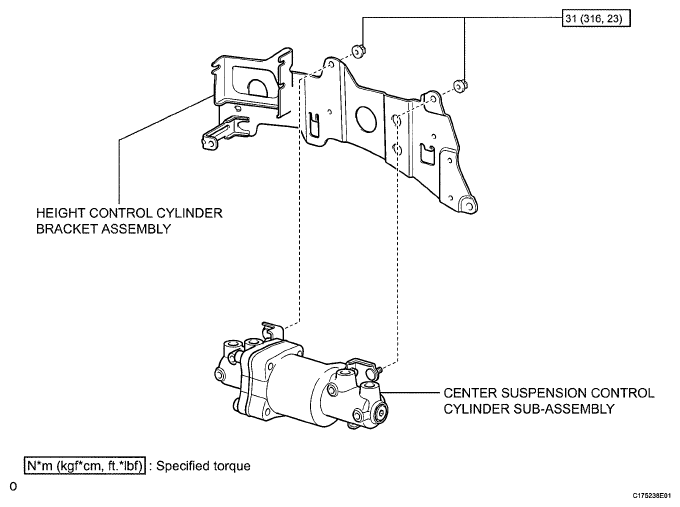

Fig 5: Identifying Suspension Control Cylinder Replacement Components With Torque Specifications (5 Of 5)
G05761411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
