Transmission Control Switch Circuit: Wiring Diagram

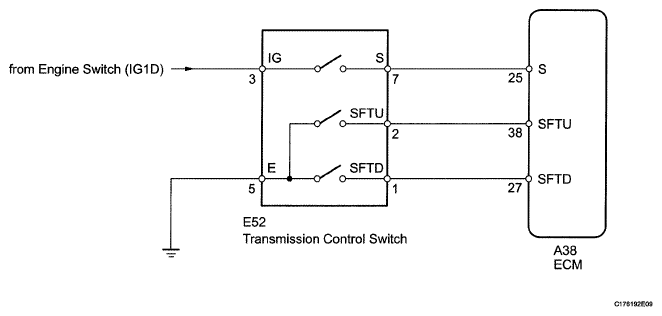

Fig 1: Transmission Control Switch Wiring Diagram
G05760571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
