Oil Cooler: Components

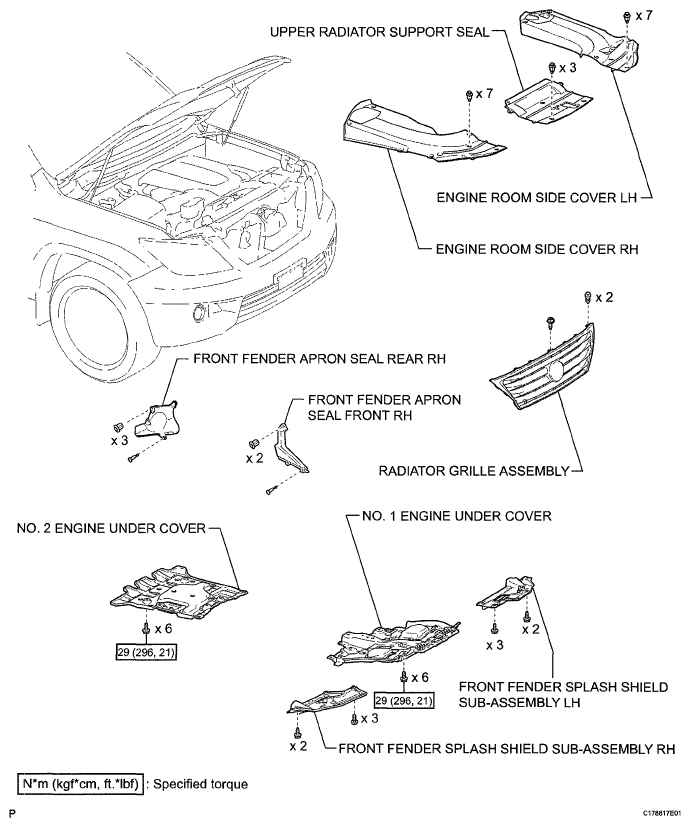

Fig 1: Identifying Oil Cooler Replacement Components With Torque Specifications (1 Of 3)
G05760664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

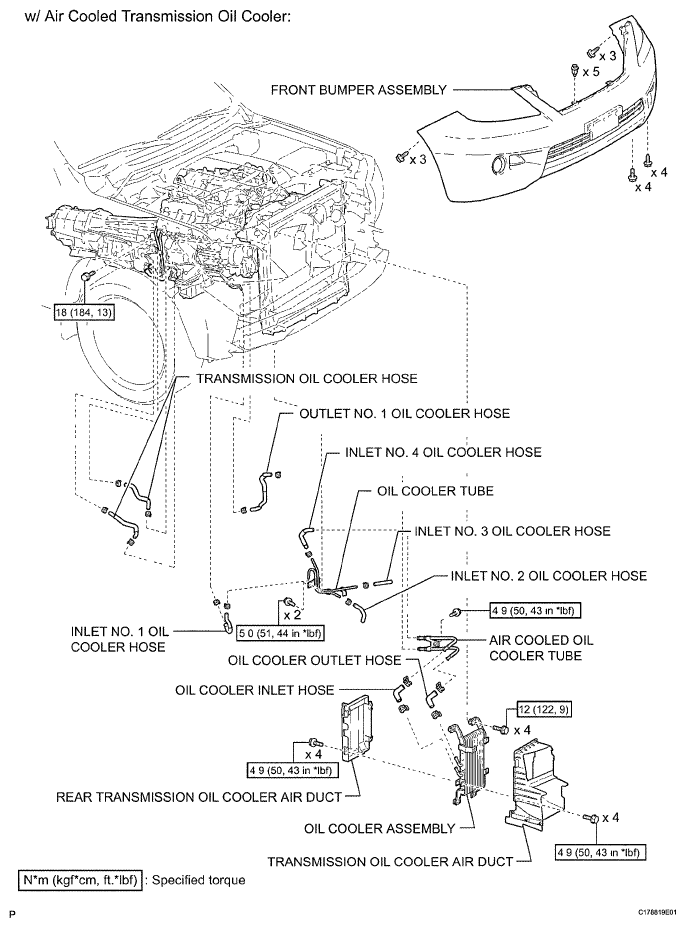

Fig 2: Identifying Oil Cooler Replacement Components With Torque Specifications (2 Of 3)
G05760665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

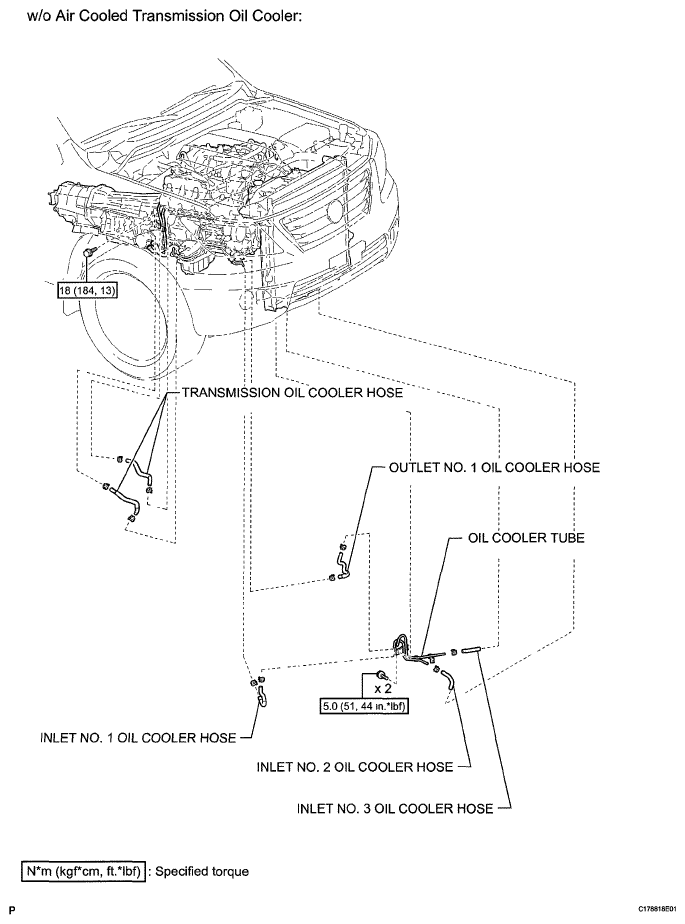

Fig 3: Identifying Oil Cooler Replacement Components With Torque Specifications (3 Of 3)
G05760666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
