Shift Lever: Components

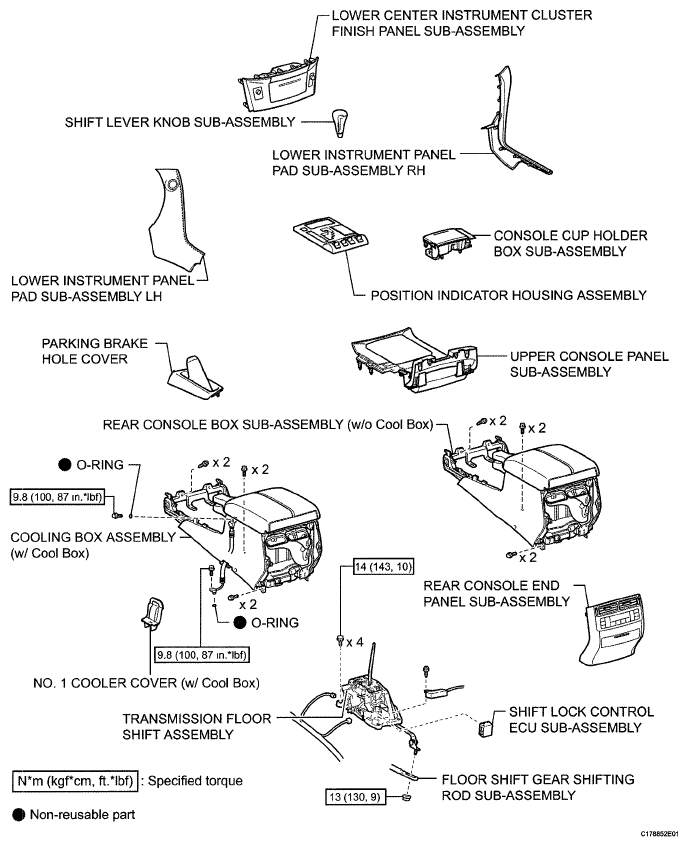

Fig 1: Identifying Shift Lever Replacement Components With Torque Specifications (1 Of 2)
G05760686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

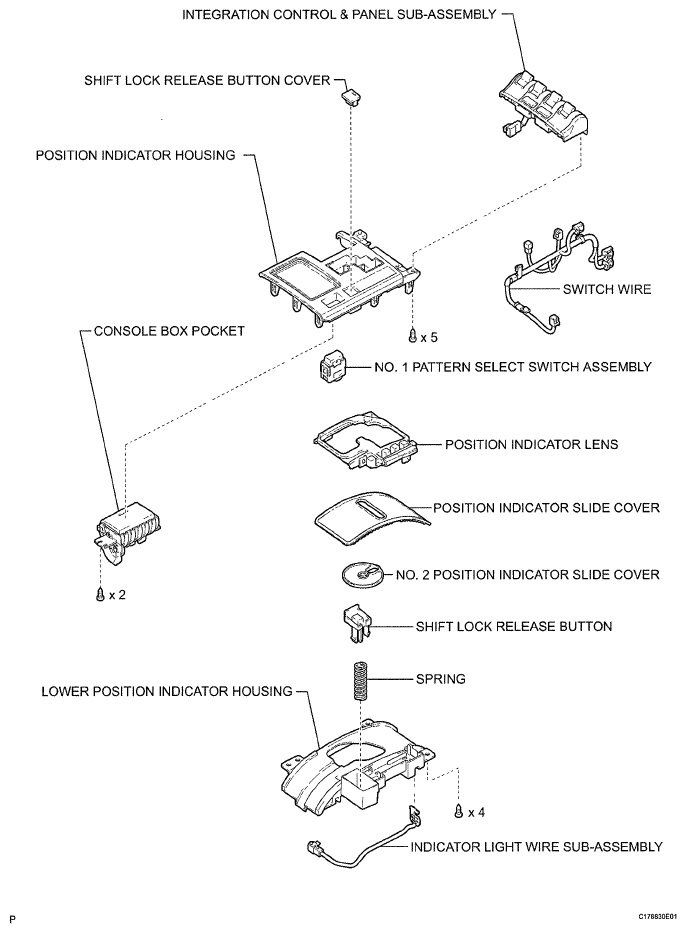

Fig 2: Identifying Shift Lever Replacement Components (2 Of 2)
G05760687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
