Valve Body Assembly: Components

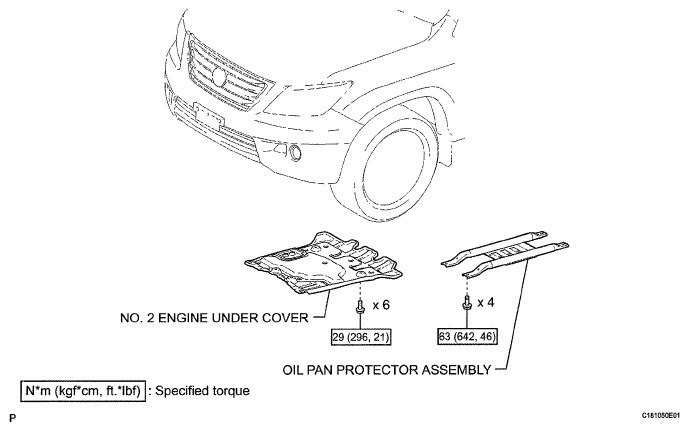

Fig 1: Transmission Wire Replacement Components With Torque Specifications (1 Of 2)
G05760597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

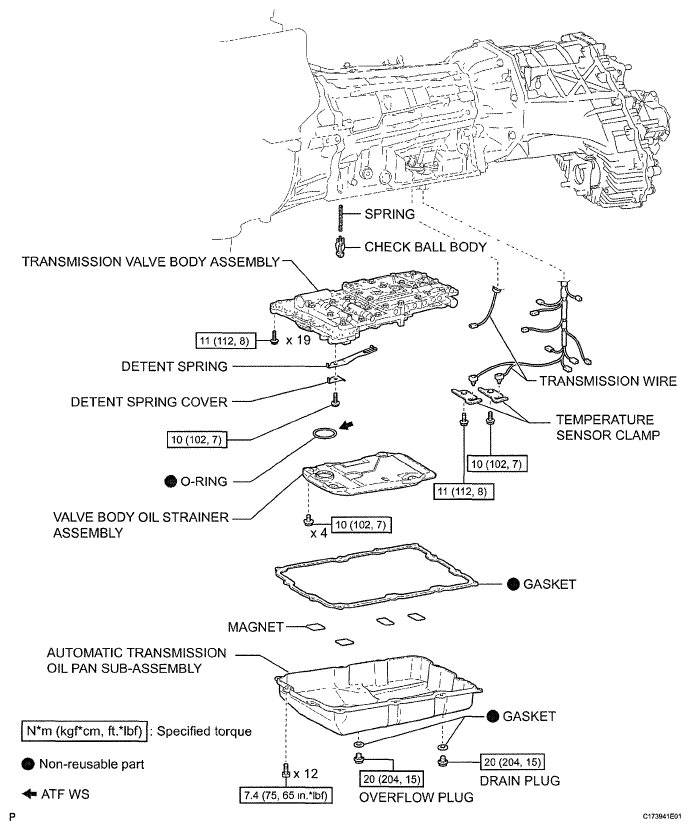

Fig 2: Identifying Valve Body Assembly Replacement Components With Torque Specifications (2 Of 3)
G05760614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

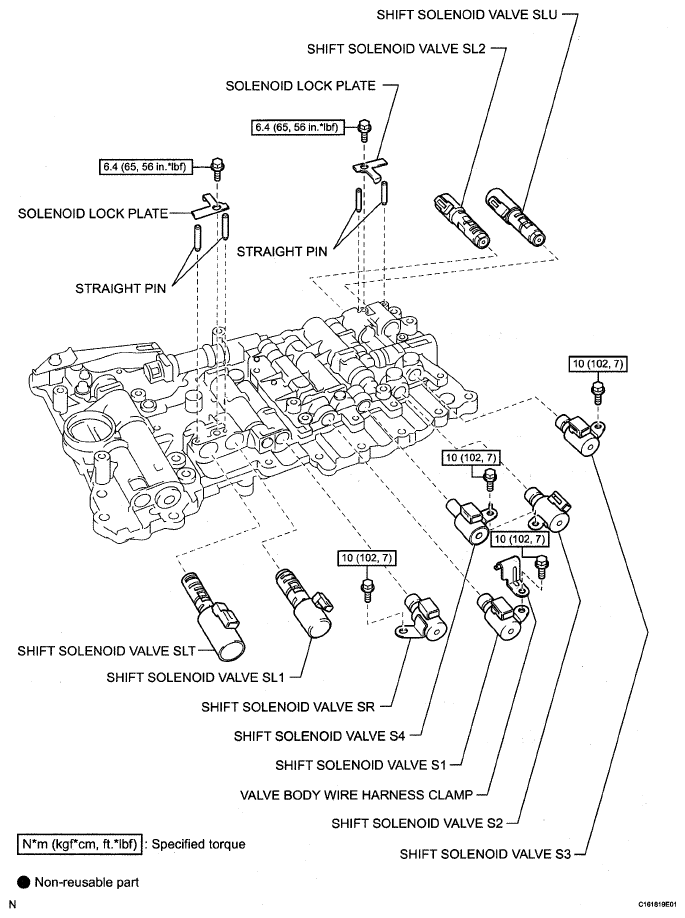

Fig 3: Identifying Valve Body Assembly Replacement Components With Torque Specifications (3 Of 3)
G05154848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
