Inspection Procedure

1. Remove the power window motor.
   Fig 1: Checking Operation Of Power Window Motor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply battery voltage to the motor connector according to the table below.
   NOTE: Do not apply battery to any terminals except terminals 1 and 2.

   Standard

   VOLTAGE SPECIFICATION TABLE



   Measurement Condition	Specified Condition
   Battery positive (+) → Terminal 1 (D) Battery negative (-) → Terminal 2 (U)	Motor gear rotates clockwise
   Battery positive (+) → Terminal 2 (U) Battery negative (-) → Terminal 1 (D)	Motor gear rotates counterclockwise

NG: REPLACE POWER WINDOW REGULATOR MOTOR

OK: Go to next step.

1. Disconnect the P20 and P25 connectors.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE SPECIFICATION TABLE



   Tester Connection	Condition	Specified Condition
   P20-1 (DN) - P25-1 (D)	Always	Below 1 Ω
   P20-6 (UP) - P25-2 (U)	Always	Below 1 Ω
   P20-1 (DN) - Body ground	Always	10 kΩ or higher
   P20-6 (UP) - Body ground	Always	10 kΩ or higher

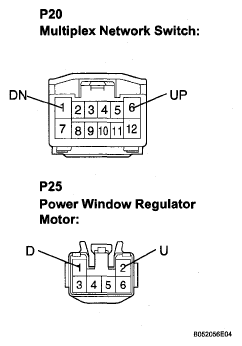

   Fig 2: Identifying P20 & P25 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
