Engine Control System - DTC P0230 - P050B
>>
DTC P050B Cold Start Ignition Timing Performance
>>
Monitor Description
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Monitor Description

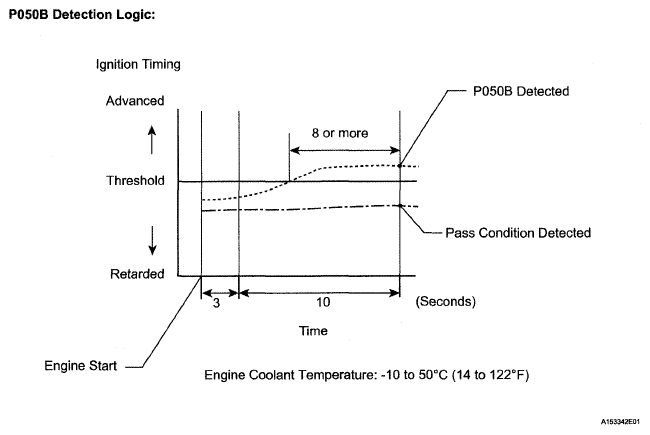

Fig 1: Monitor Description - Engine Coolant Temperature
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
