Transmission Control Switch Circuit: Wiring Diagram

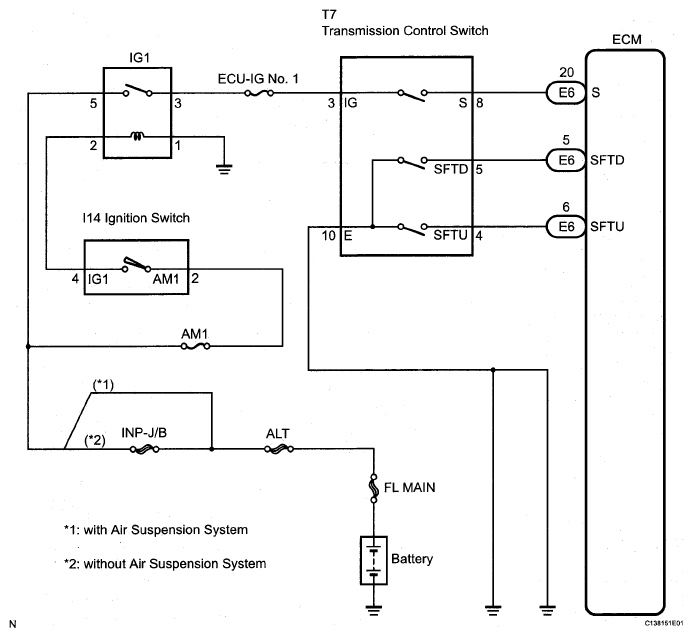

Fig 1: Transmission Control Switch Circuit - Wiring Diagram
G05271807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
