Differential Case: Components

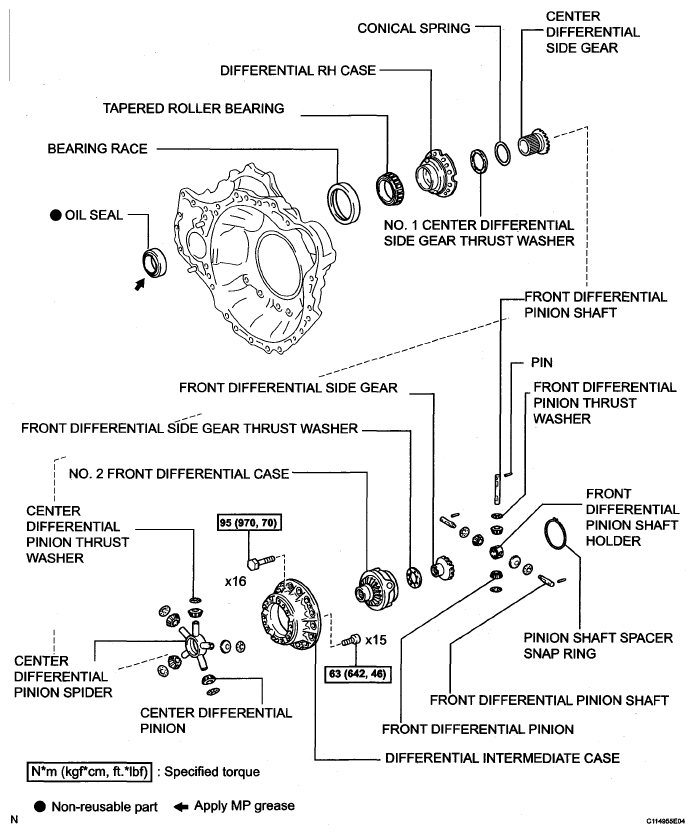

Fig 1: Differential Case Replacement Components With Torque Specifications (1 Of 2)
G05269241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

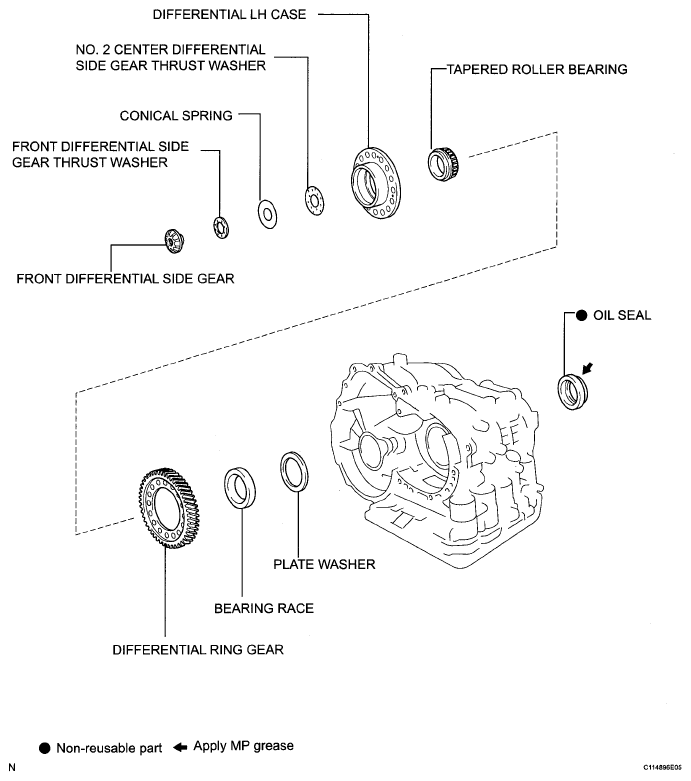

Fig 2: Identifying Differential Case Components (2 Of 2)
G05841762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
