Second Brake Piston: Components

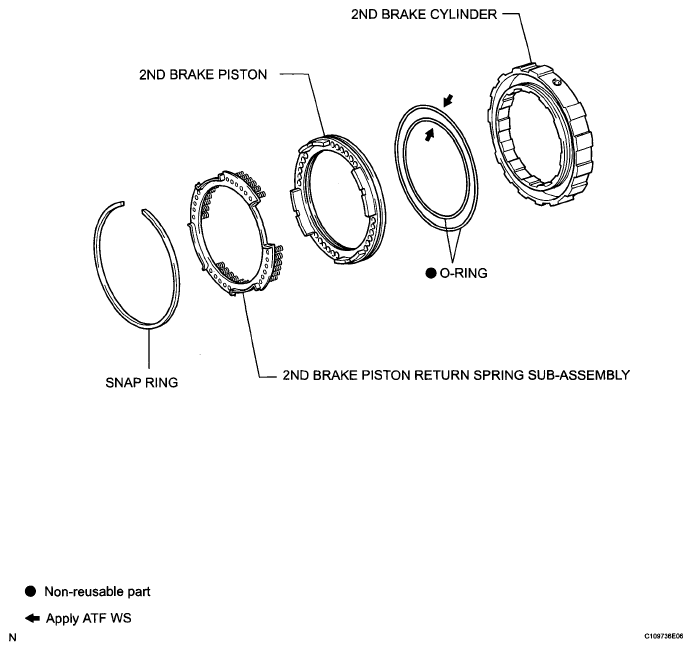

Fig 1: Identifying Second Brake Piston Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
