Shift Lever: Disassembly

REMOVE POSITION INDICATOR HOUSING
1. Disengage the 6 claws and remove the position indicator housing from the shift lever assembly.

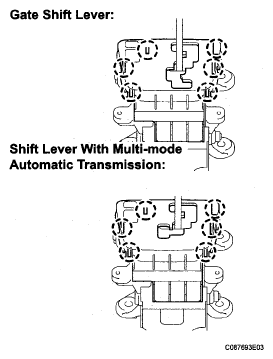

  Fig 1: Locating Position Indicator Housing Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER CAP
1. Using a screwdriver, remove the shift lever cap from the position indicator housing.

  Fig 2: Locating Shift Lever Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 PATTERN SELECT SWITCH ASSEMBLY
1. Remove the No. 1 pattern select switch assembly from the position indicator housing.

  Fig 3: Locating Pattern Select Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 SHIFT LOCK RELEASE LINK
1. Remove the shift lock release link, spring, and cover from the position indicator housing.

  Fig 4: Identifying Shift Lock Release Link, Spring And Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR LIGHT GUIDE
1. Remove the indicator light wire sub-assembly from the shift lever assembly.

  Fig 5: Removing Indicator Light Wire Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 4 claws and remove the position indicator light guide from the shift lever assembly.

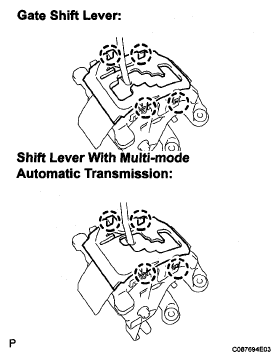

  Fig 6: Identifying Position Indicator Light Guide Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover from the position indicator housing lower.

  Fig 7: Identifying Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover from the No. 2 position indicator slide cover.

  Fig 8: Identifying Position Indicator Slide Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR HOUSING LOWER
1. Remove the position indicator housing lower from the shift lock control unit.

  Fig 9: Identifying Position Indicator Housing Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Gate shift lever:
  1. Remove the connector from the shift lever assembly.

    Fig 10: Identifying Indicator Light Wire
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Shift lever with multi-mode automatic transmission:
  1. Remove the connector from the shift lever assembly.
  2. Using a screwdriver, release the stopper of the connector.
  3. Using a screwdriver, disengage the locking lug of terminals (1) and (6), and pull the terminals out from the back of the connector.

    Fig 11: Identifying Multi-Mode Automatic Transmission Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
