Transmission Wire: Components

Fig 1: Identifying Transmission Wire Replacement Components (1 Of 2)
G05268718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

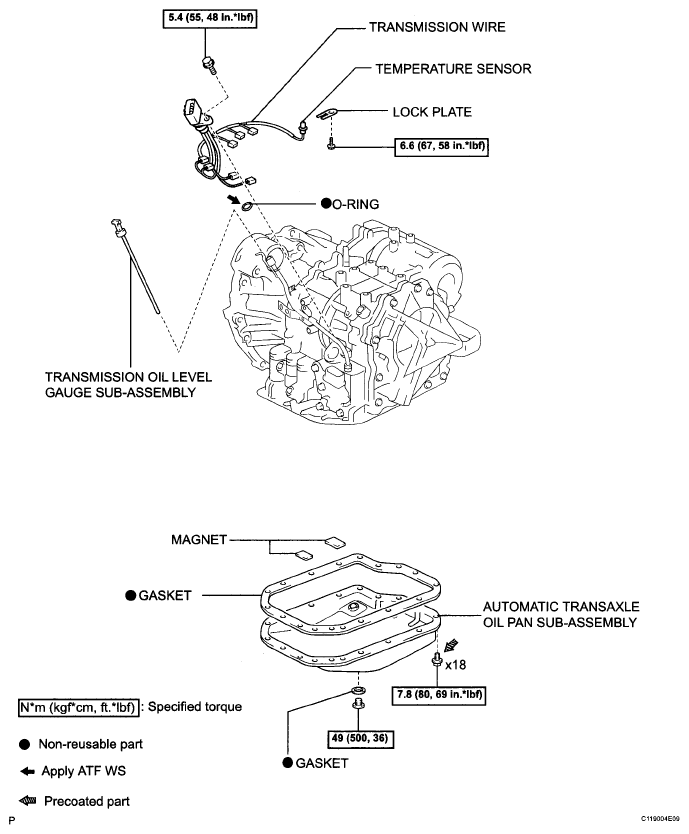

Fig 2: Transmission Wire Replacement Components With Torque Specifications (2 Of 2)
G05840560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
