UNDERDRIVE Planetary Gear: Components

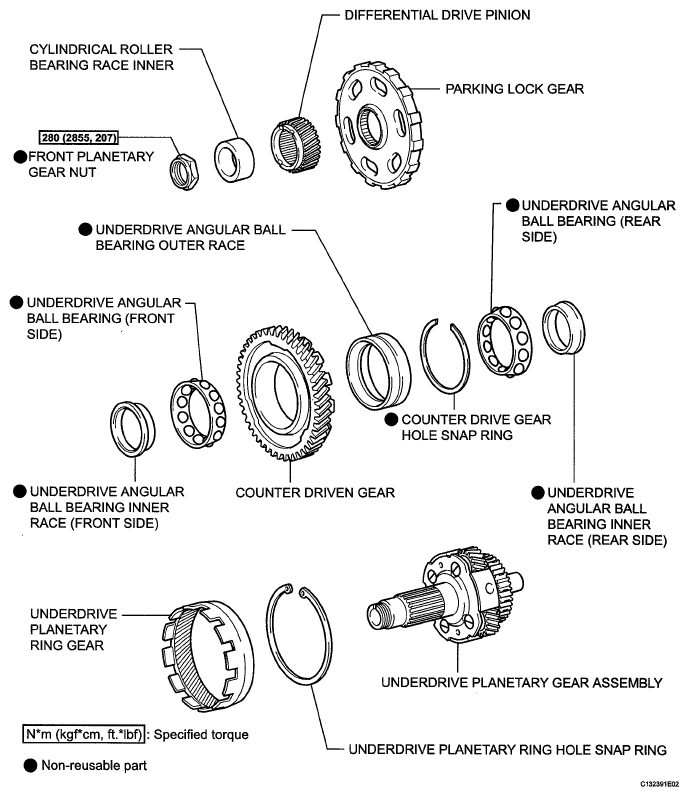

Fig 1: Identifying Underdrive Planetary Gear Components
G05416087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
