Valve Body Assembly: Components

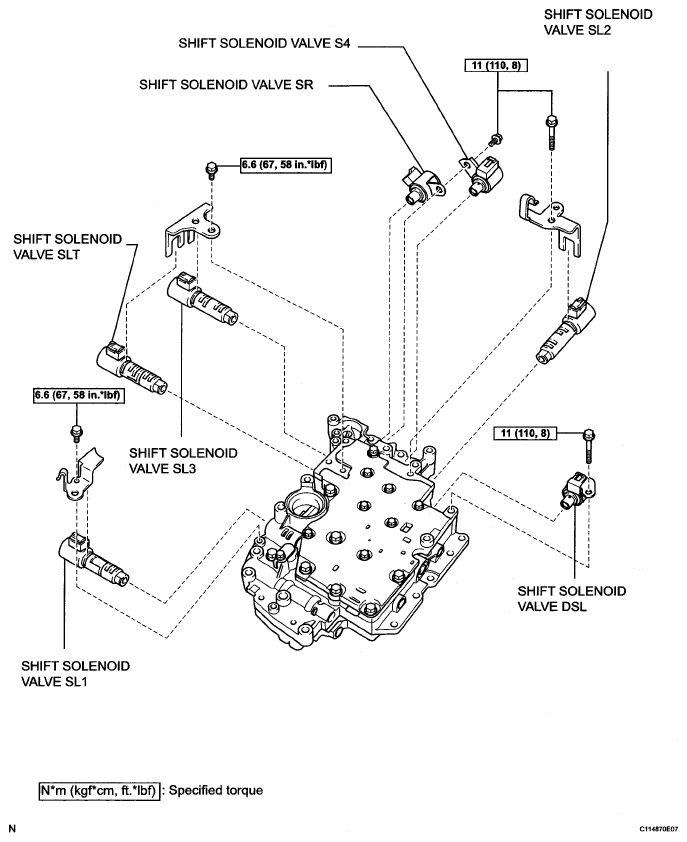

Fig 1: Identifying Valve Body Assembly Replacement Components With Torque Specification (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

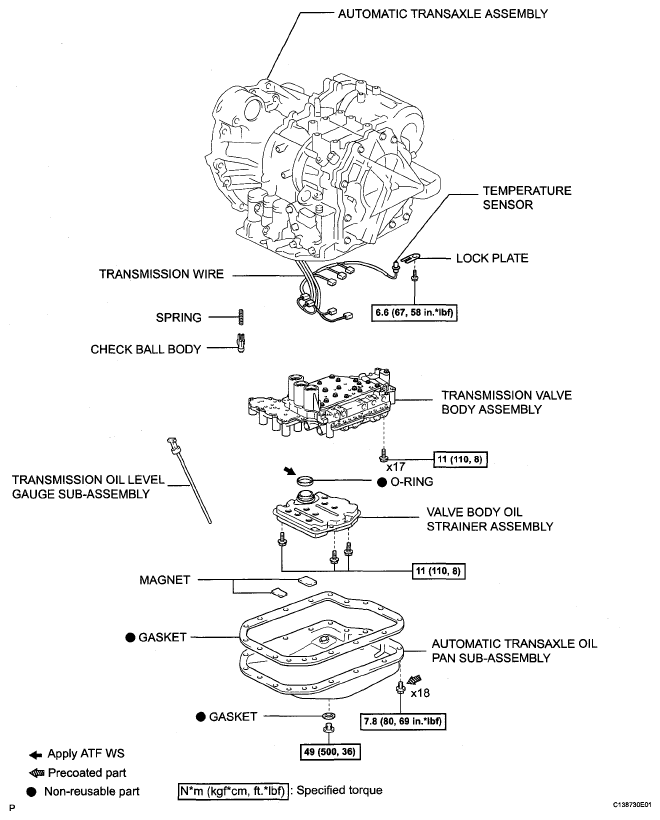

Fig 2: Identifying Valve Body Assembly Replacement Components (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Valve Body Assembly Replacement Components With Torque Specification (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Valve Body Assembly Replacement Components With Torque Specification (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Valve Body Assembly Replacement Components With Torque Specification (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Valve Body Assembly Replacement Components With Torque Specification (6 Of 9)

Fig 7: Automatic Transaxle Assembly Replacement Components With Torque Specifications (7 Of 8)

Fig 8: Valve Body Assembly Replacement Components With Torque Specifications (8 Of 9)

Fig 9: Valve Body Assembly Replacement Components With Torque Specifications (9 Of 9)
