VVT Sensor: Components

Fig 1: Air Cleaner Assembly Replacement Components With Torque Specifications
G05268269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

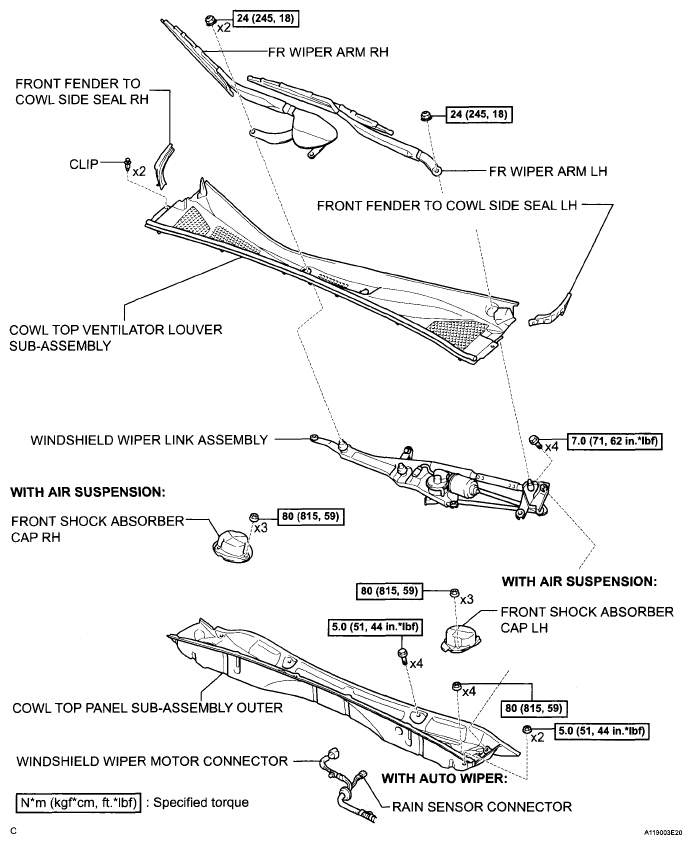

Fig 2: Windshield Wiper Assembly Replacement Components With Torque Specifications
G05840358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

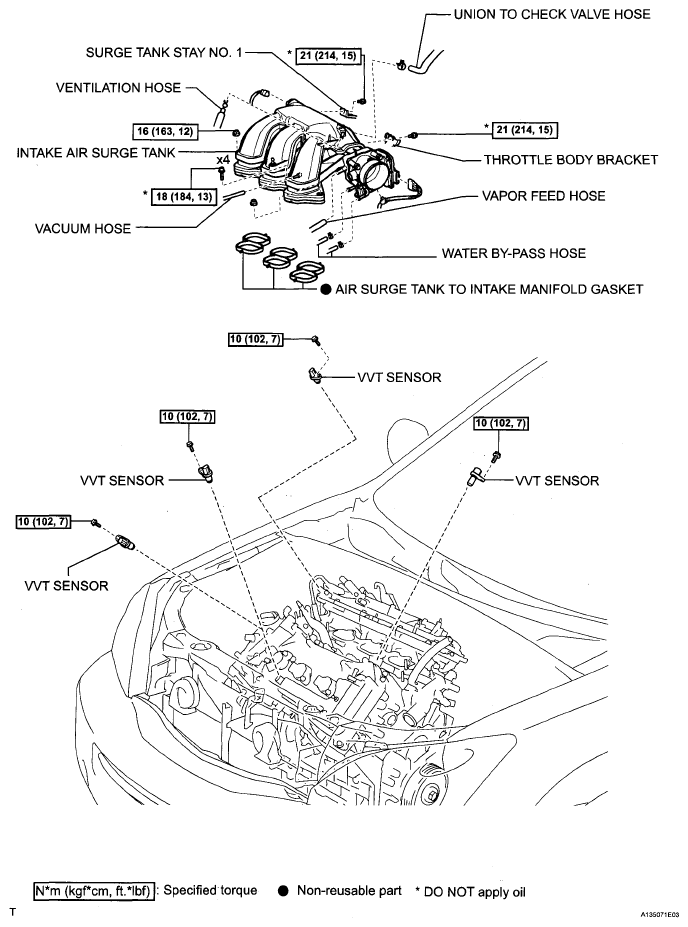

Fig 3: VVT Sensor Replacement Components With Torque Specifications
G05840405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
