Windshield Glass: Components

Fig 1: Identifying Windshield Glass Replacement Components With Torque Specifications (1 Of 2)
G05274269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

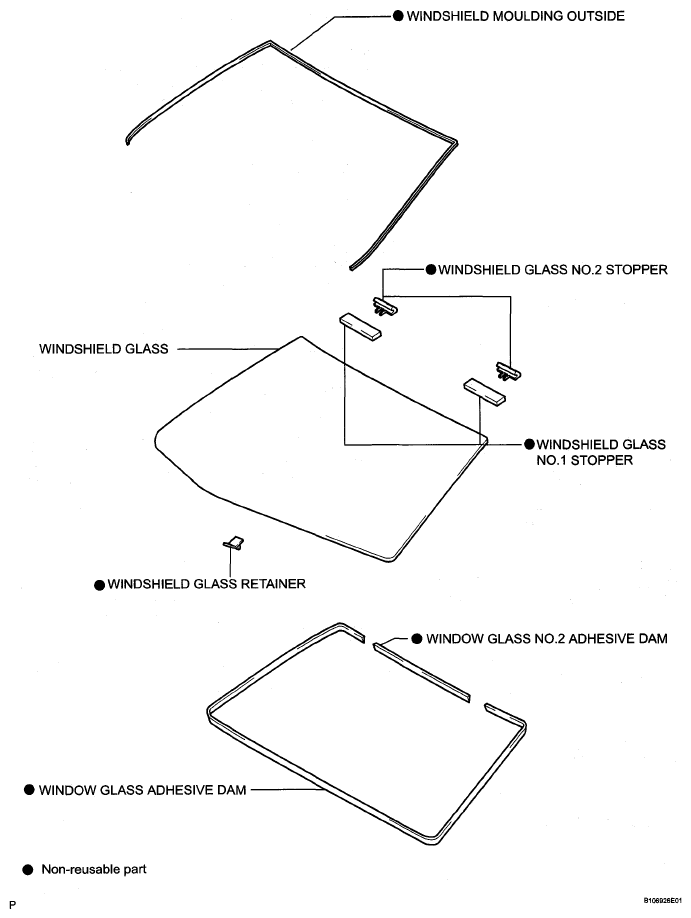

Fig 2: Identifying Windshield Glass Replacement Components (2 Of 2)
G05274270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
