Dynamic Laser Cruise Control: Notes

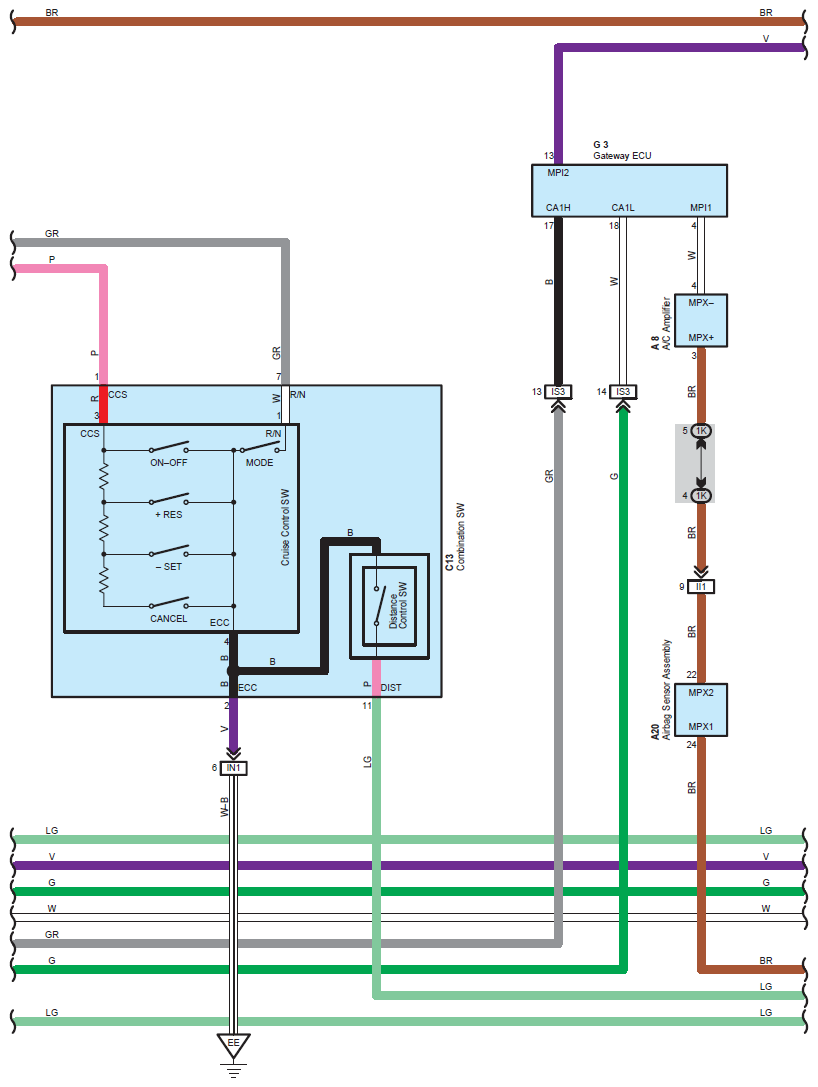

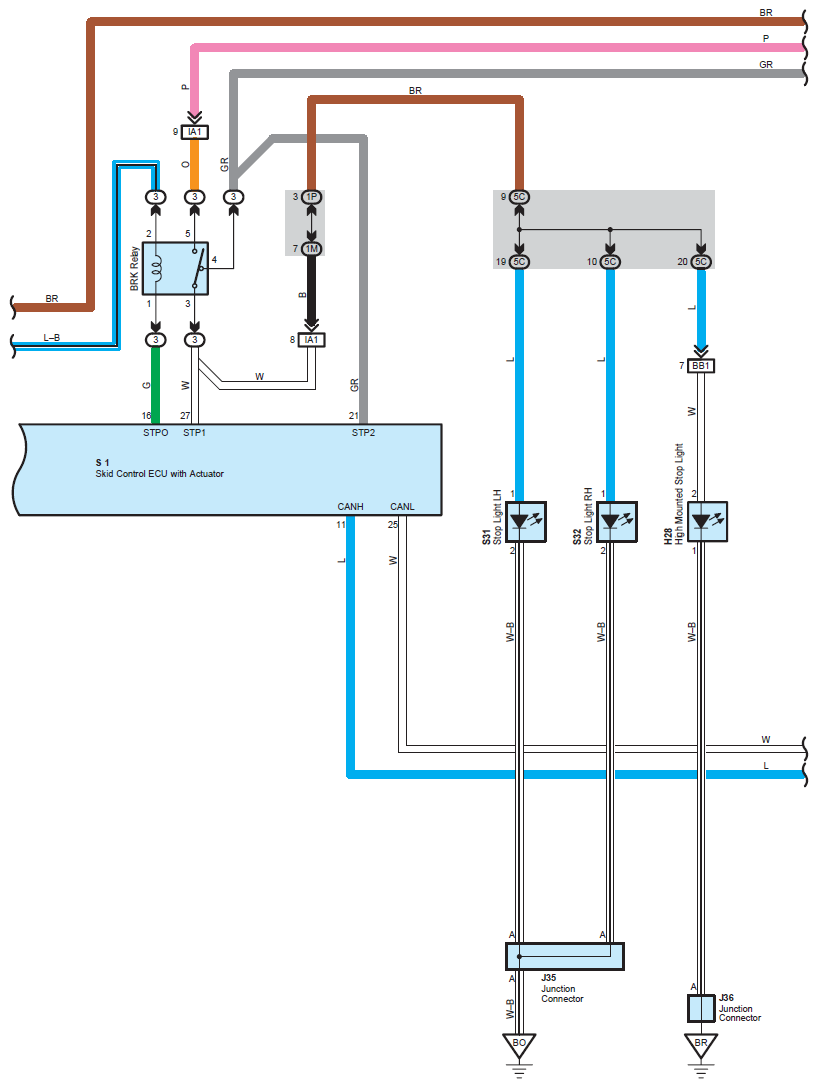

Fig 1: Dynamic Laser Cruise Control - Circuit Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

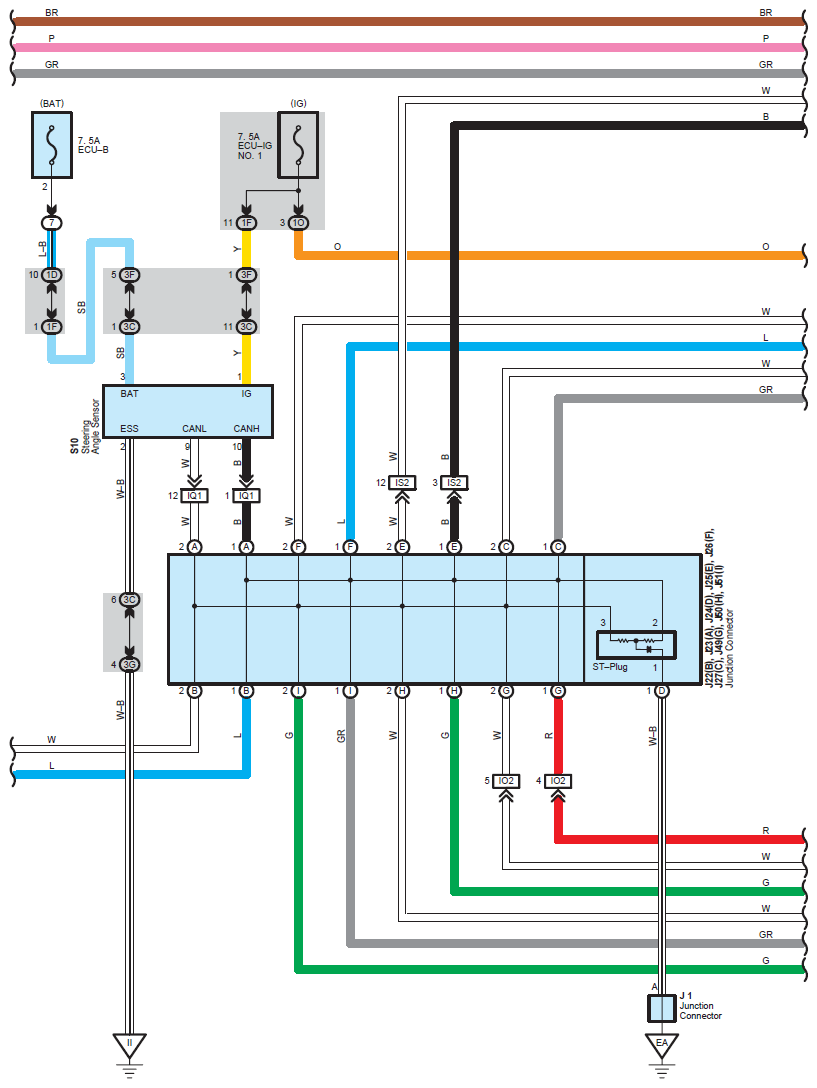

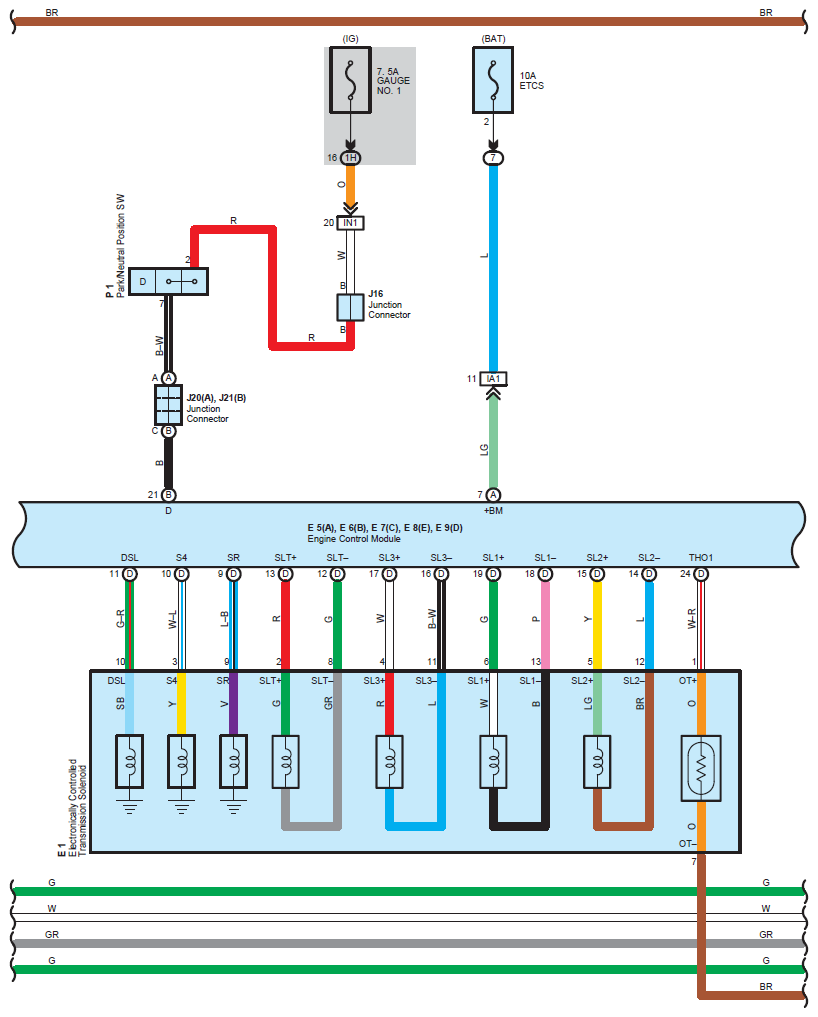

Fig 2: Dynamic Laser Cruise Control - Circuit Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

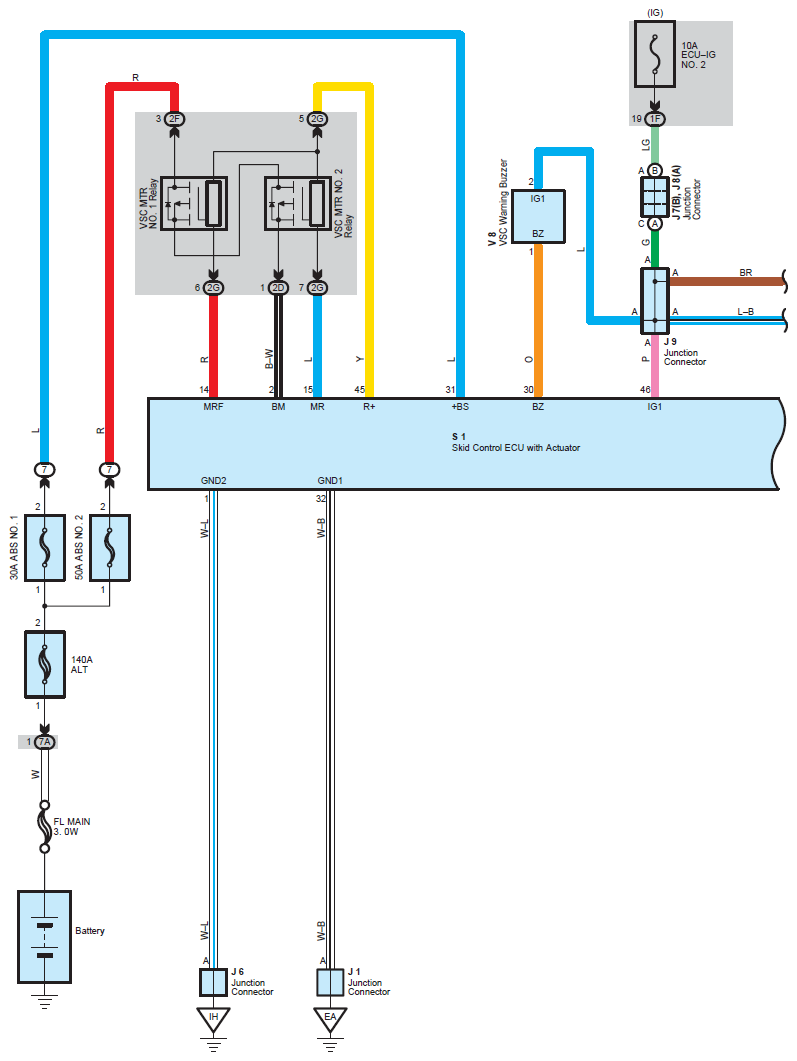

Fig 3: Dynamic Laser Cruise Control - Circuit Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

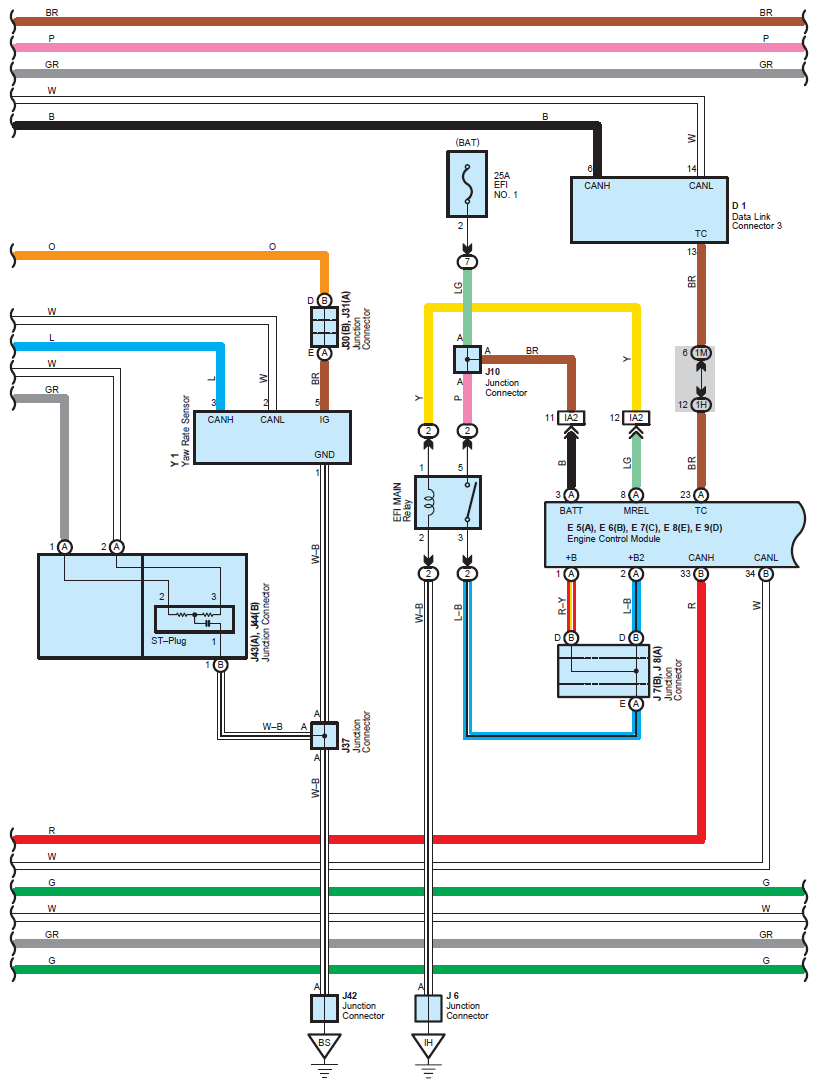

Fig 4: Dynamic Laser Cruise Control - Circuit Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

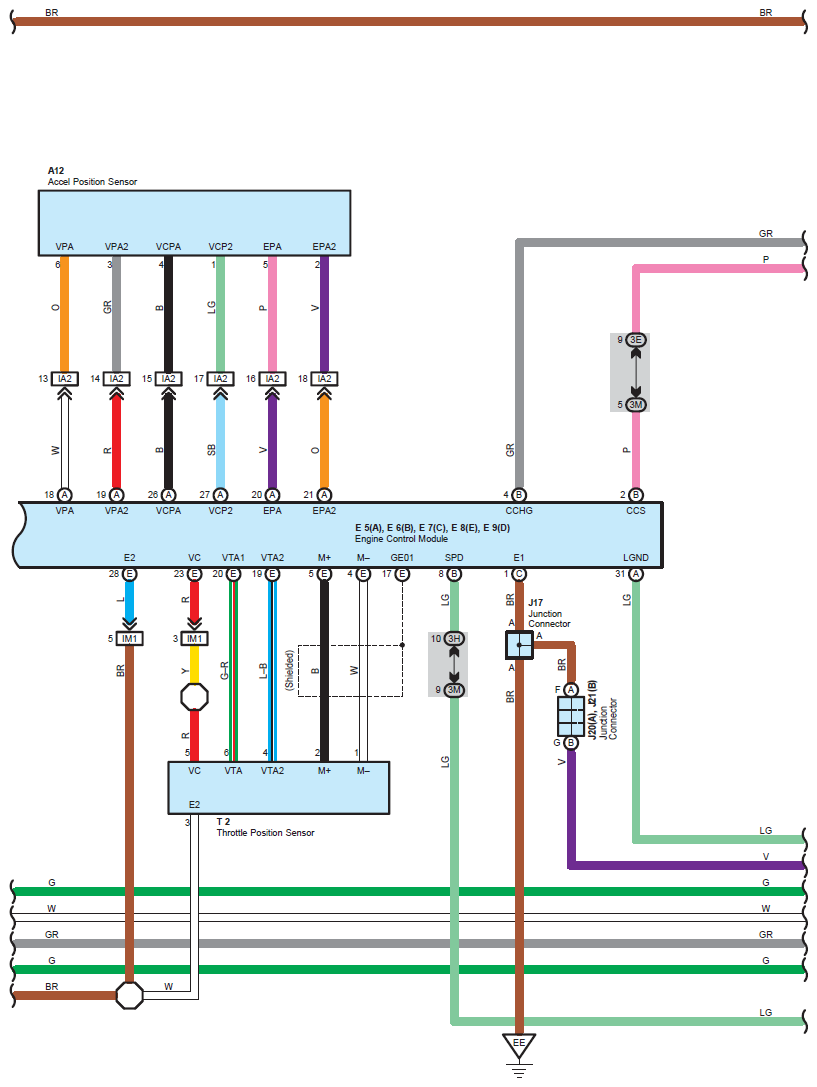

Fig 5: Dynamic Laser Cruise Control - Circuit Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

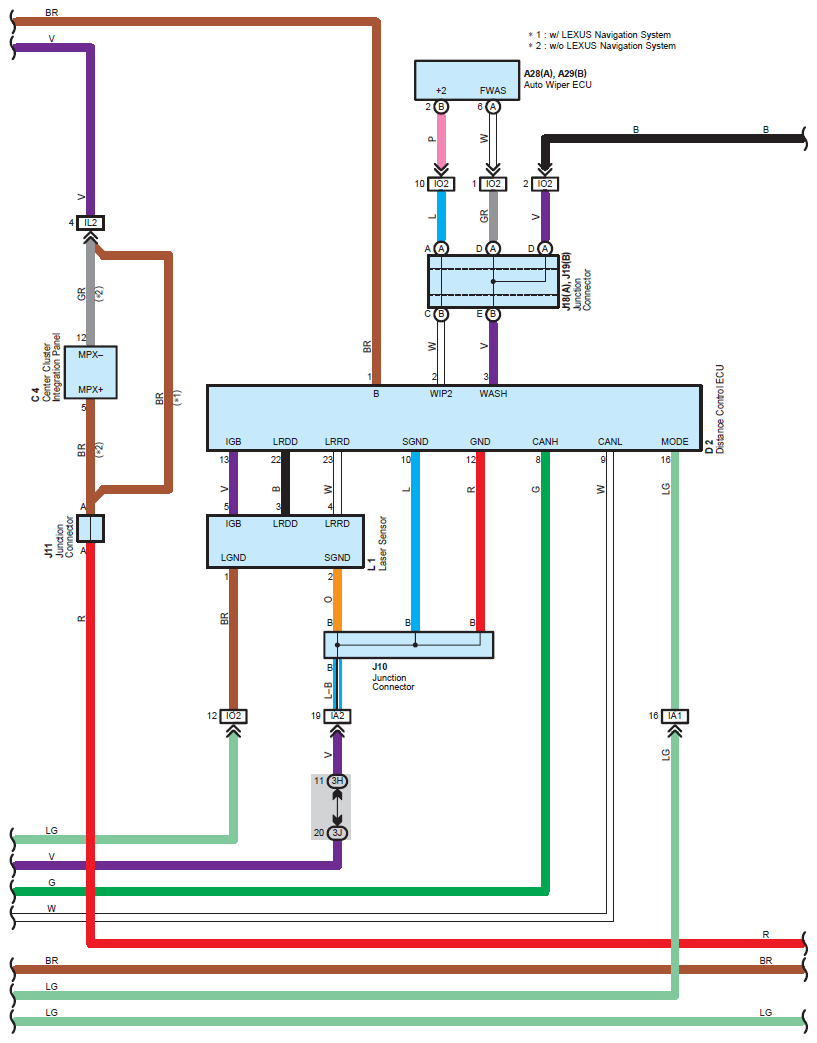

Fig 6: Dynamic Laser Cruise Control - Circuit Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

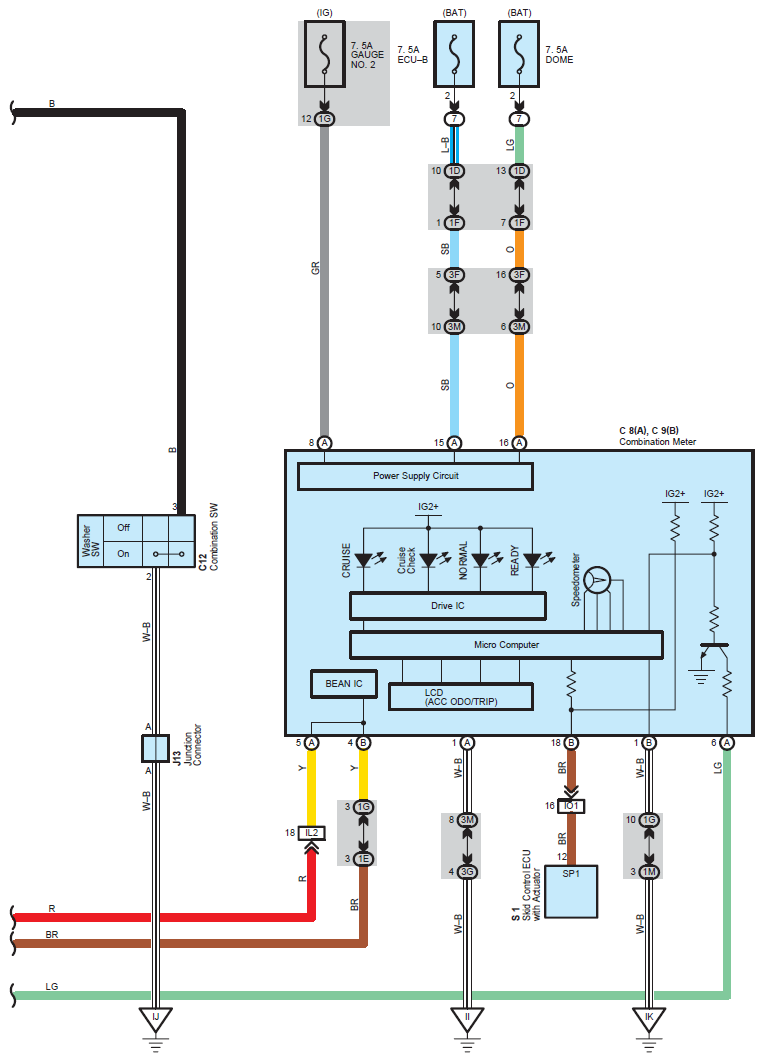

Fig 7: Dynamic Laser Cruise Control - Circuit Diagram (7 Of 10)

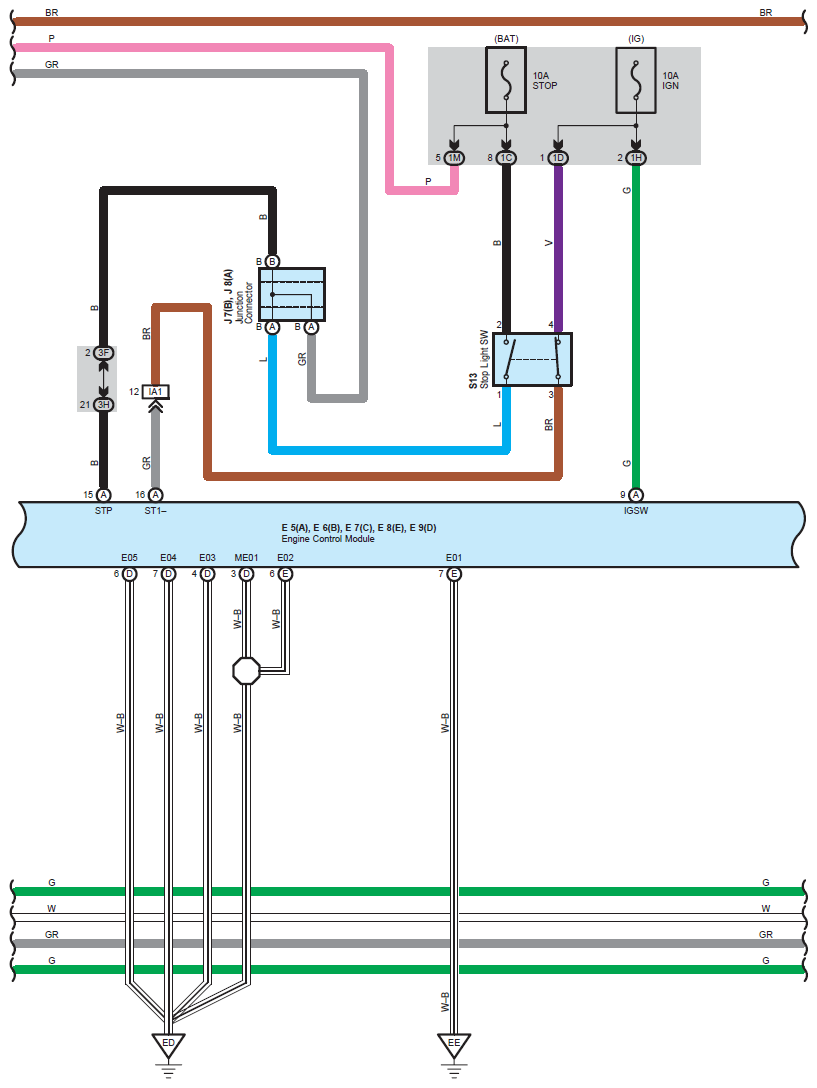

Fig 8: Dynamic Laser Cruise Control - Circuit Diagram (8 Of 10)

Fig 9: Dynamic Laser Cruise Control - Circuit Diagram (9 Of 10)

Fig 10: Dynamic Laser Cruise Control - Circuit Diagram (10 Of 10)
