Multiplex Communication System - BEAN: Notes

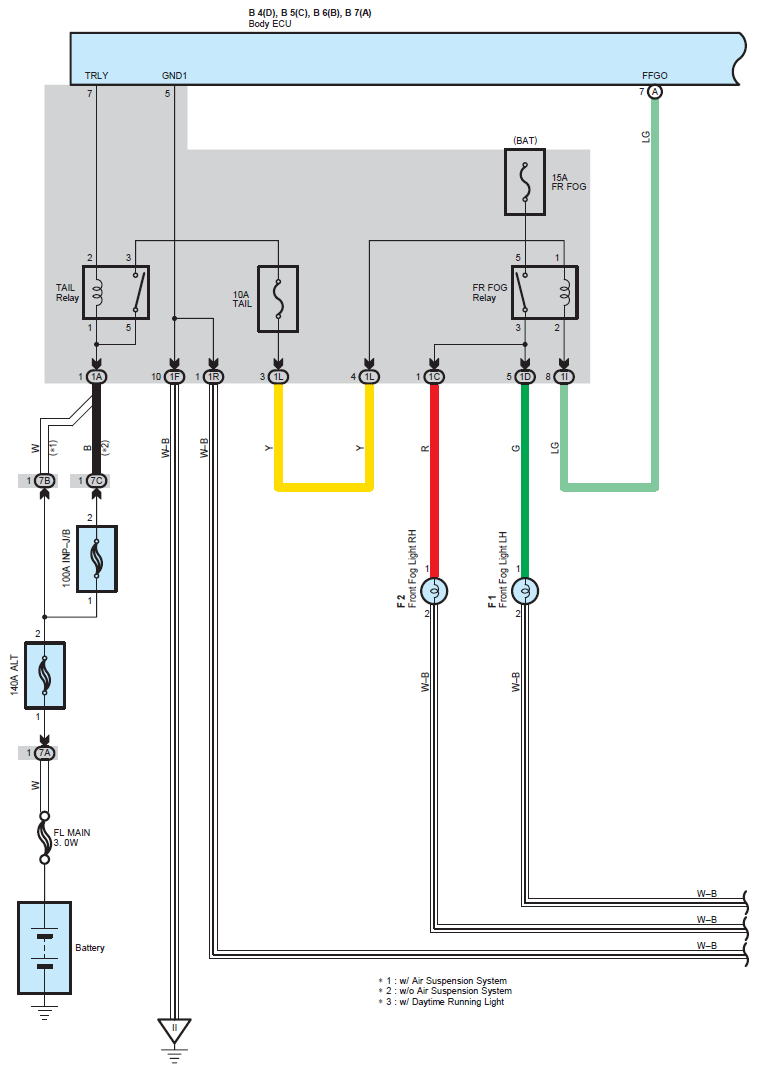

Fig 1: Multiplex Communication System (BEAN) - Circuit Diagram (1 Of 25)

G07602820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

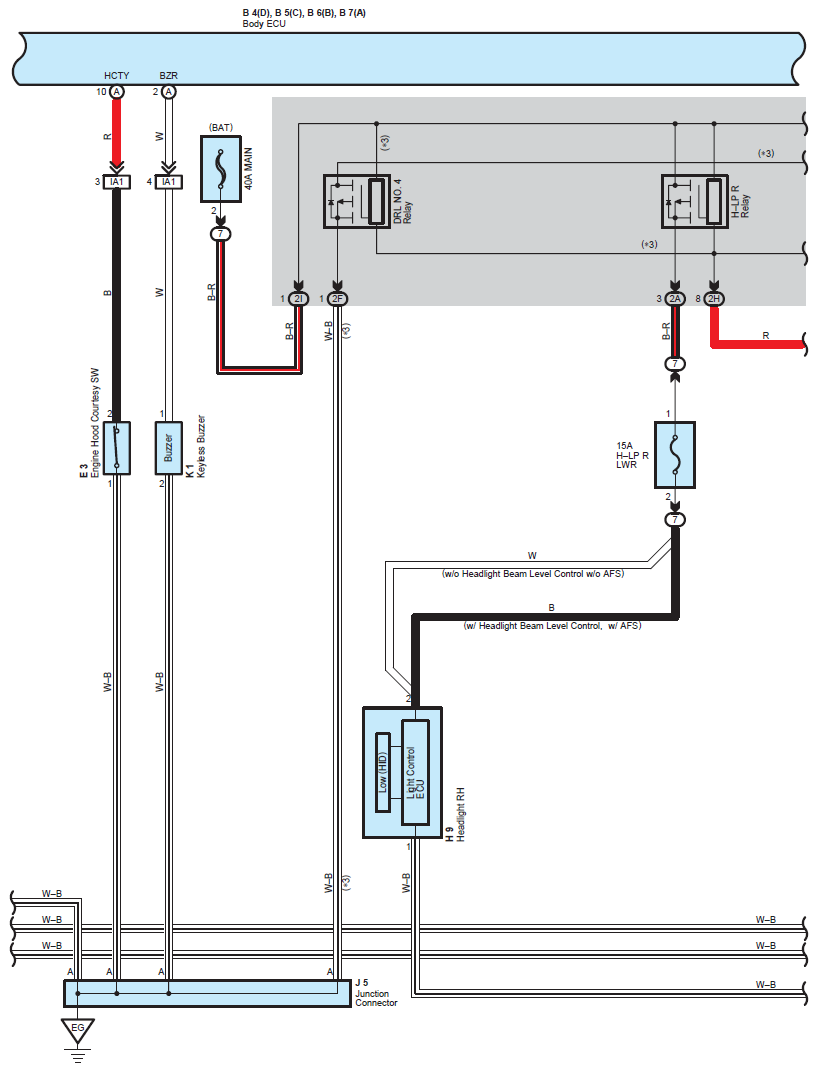

Fig 2: Multiplex Communication System (BEAN) - Circuit Diagram (2 Of 25)

G07602821

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

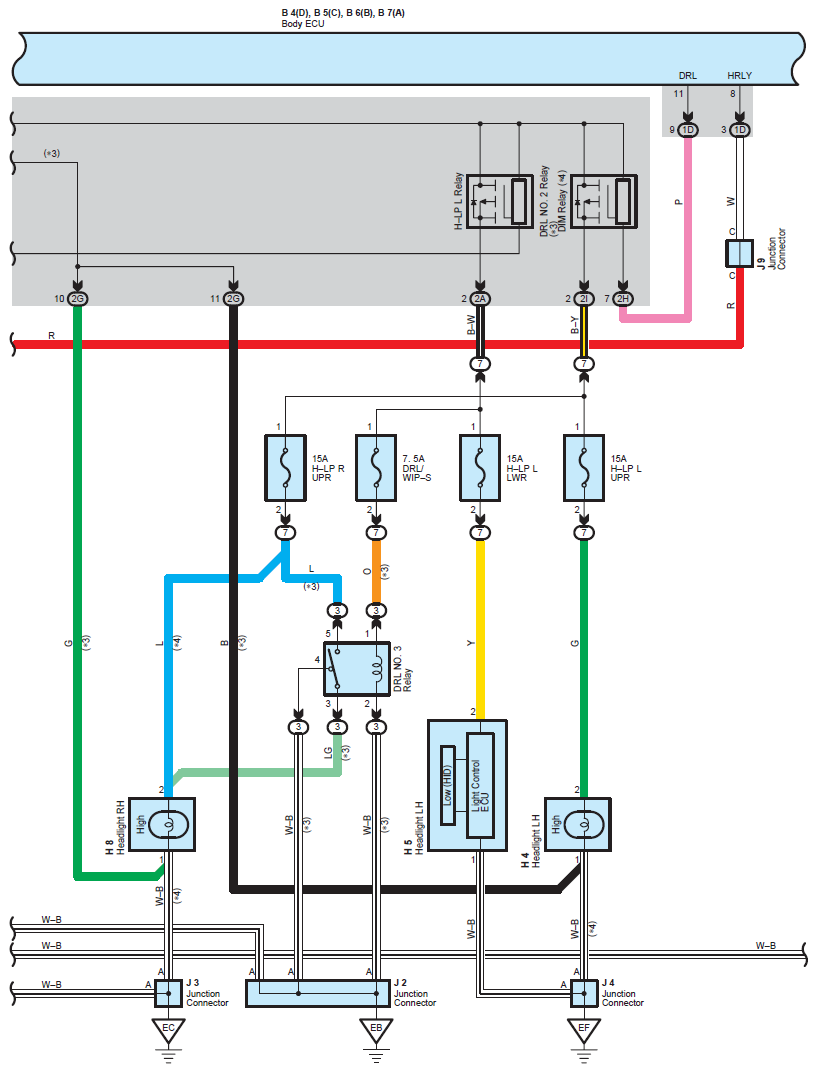

Fig 3: Multiplex Communication System (BEAN) - Circuit Diagram (3 Of 25)

G07602822

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Multiplex Communication System (BEAN) - Circuit Diagram (4 Of 25)

G07602823

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

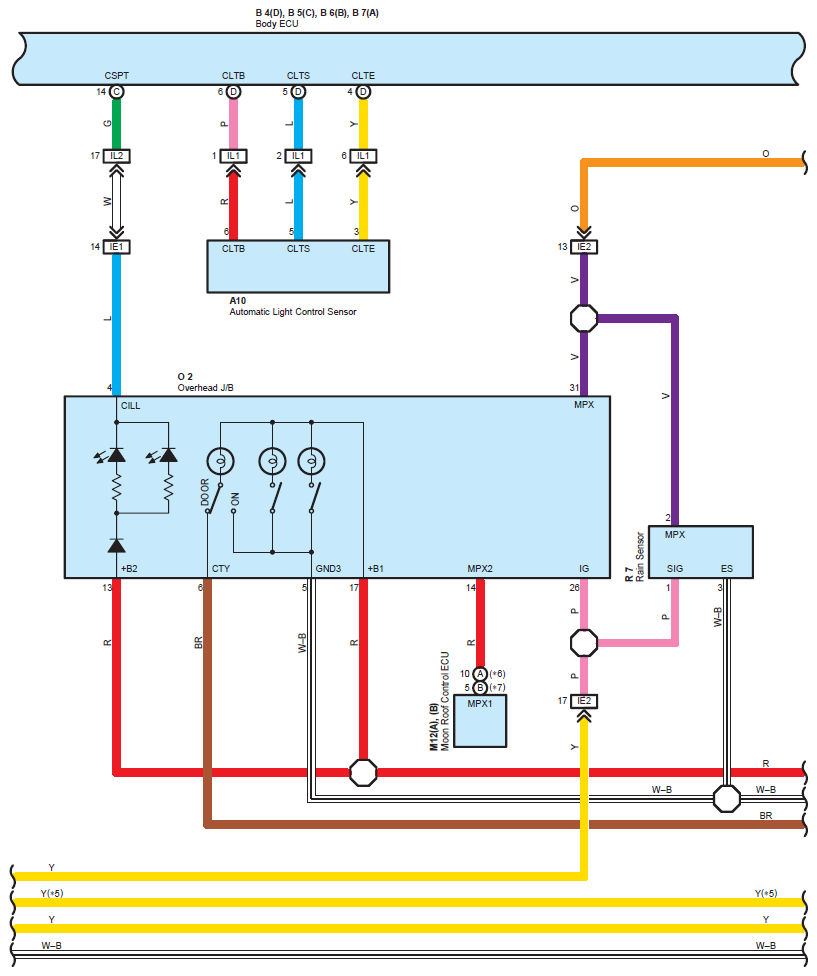

Fig 5: Multiplex Communication System (BEAN) - Circuit Diagram (5 Of 25)

G07602824

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

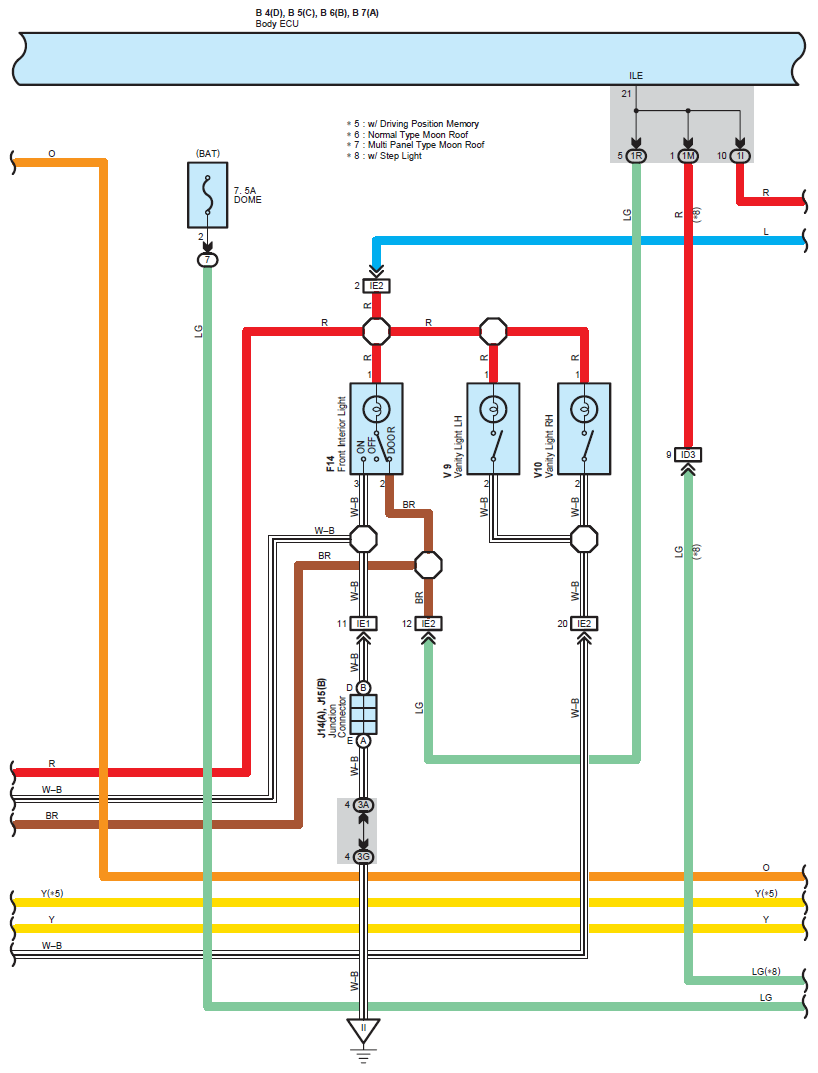

Fig 6: Multiplex Communication System (BEAN) - Circuit Diagram (6 Of 25)

G07602825

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

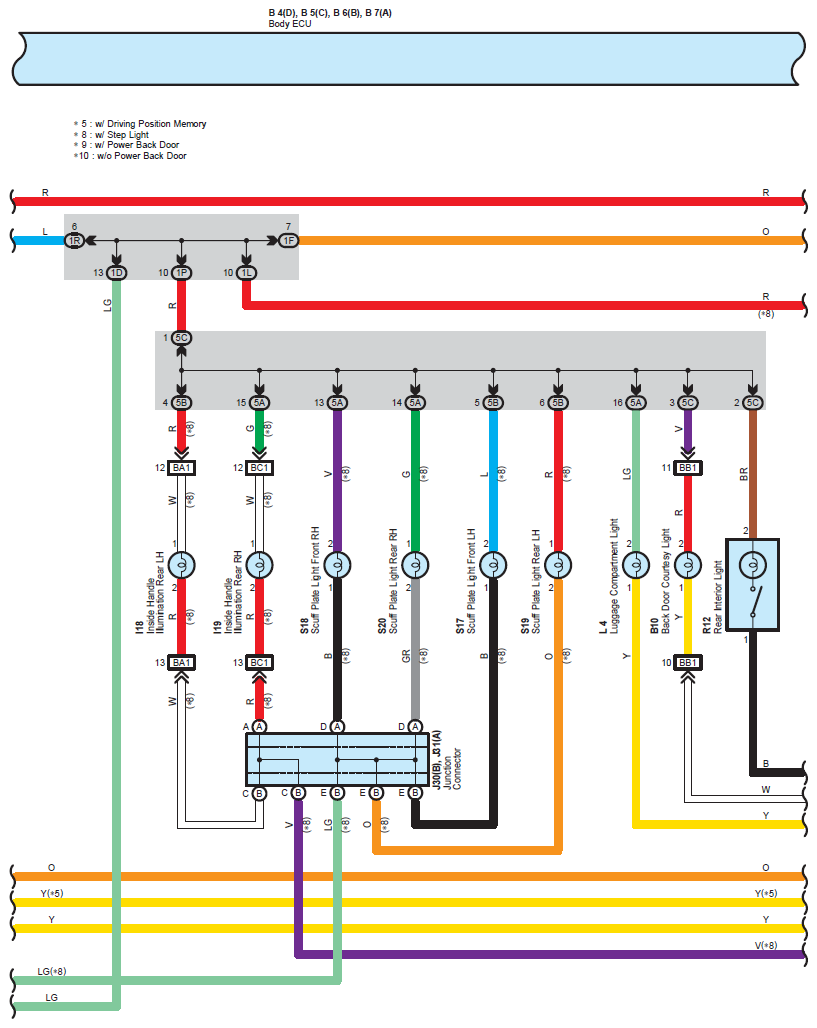

Fig 7: Multiplex Communication System (BEAN) - Circuit Diagram (7 Of 25)

G07602826

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

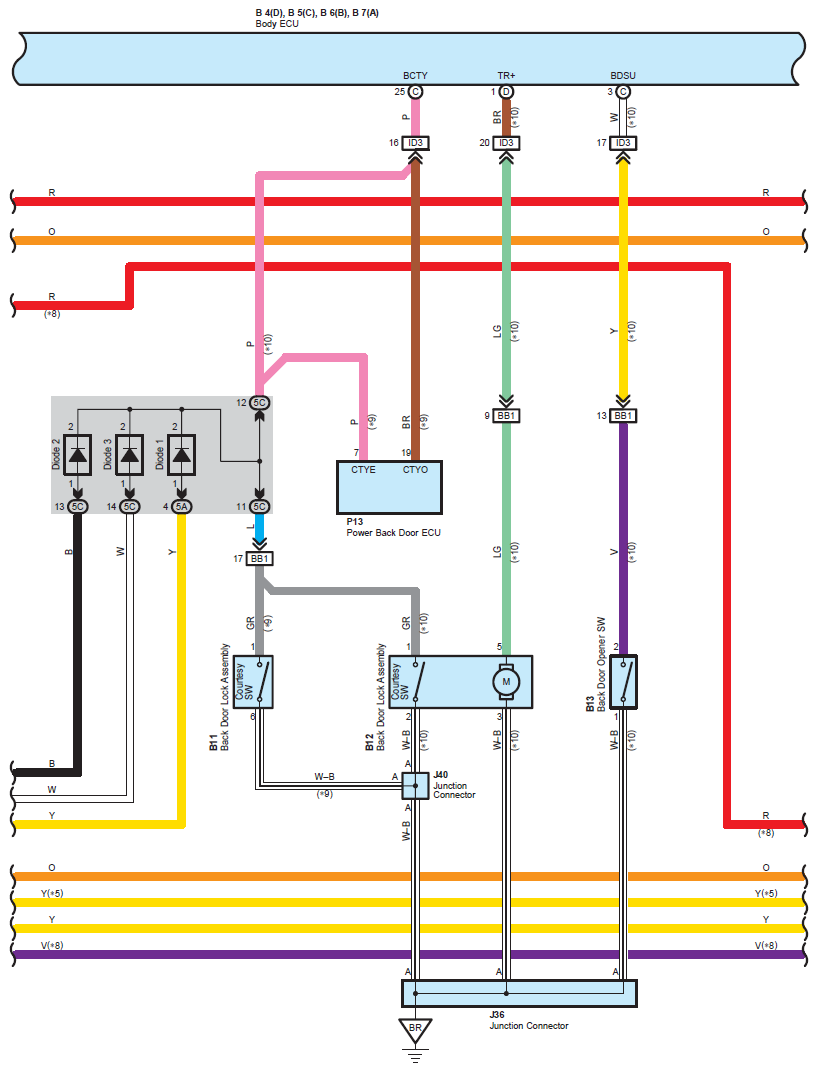

Fig 8: Multiplex Communication System (BEAN) - Circuit Diagram (8 Of 25)

G07602827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

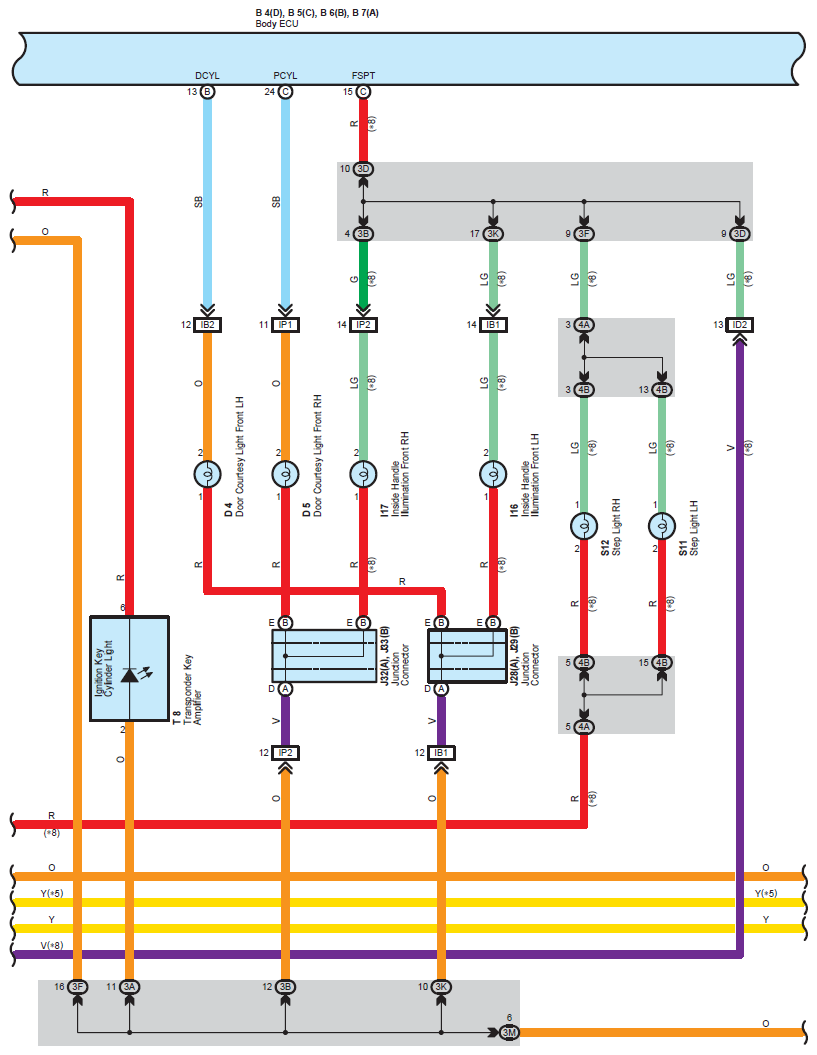

Fig 9: Multiplex Communication System (BEAN) - Circuit Diagram (9 Of 25)

G07602828

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

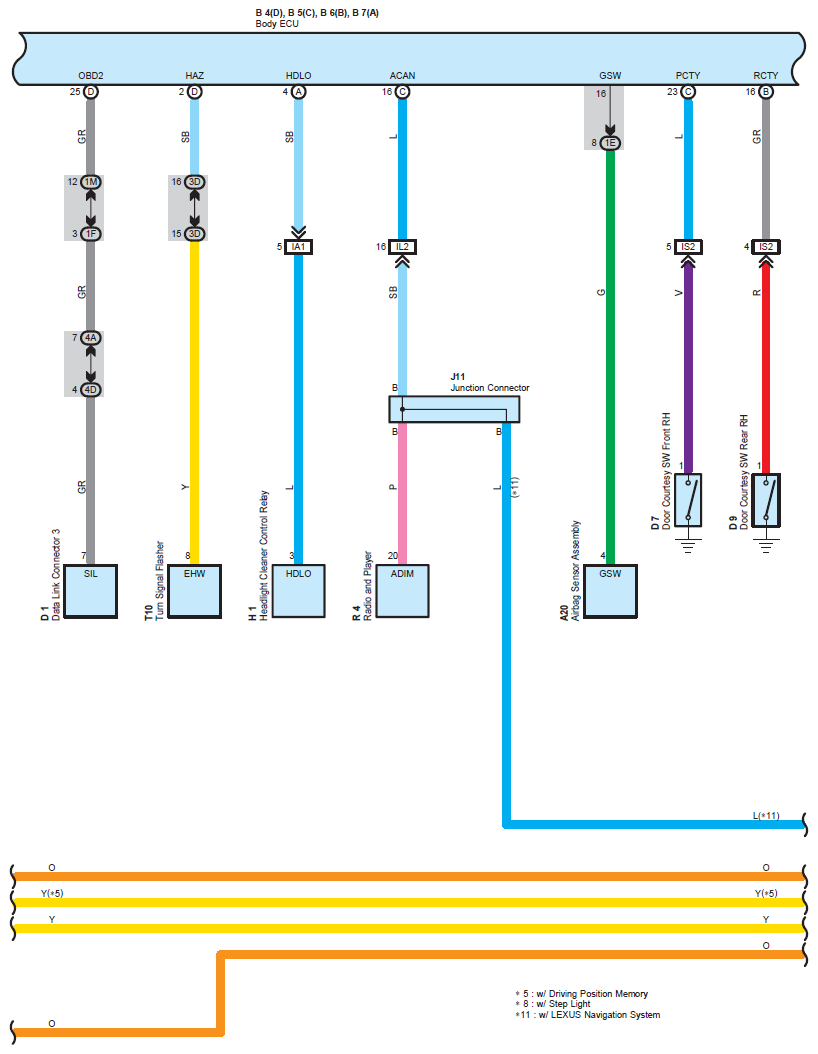

Fig 10: Multiplex Communication System (BEAN) - Circuit Diagram (10 Of 25)

G07602829

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

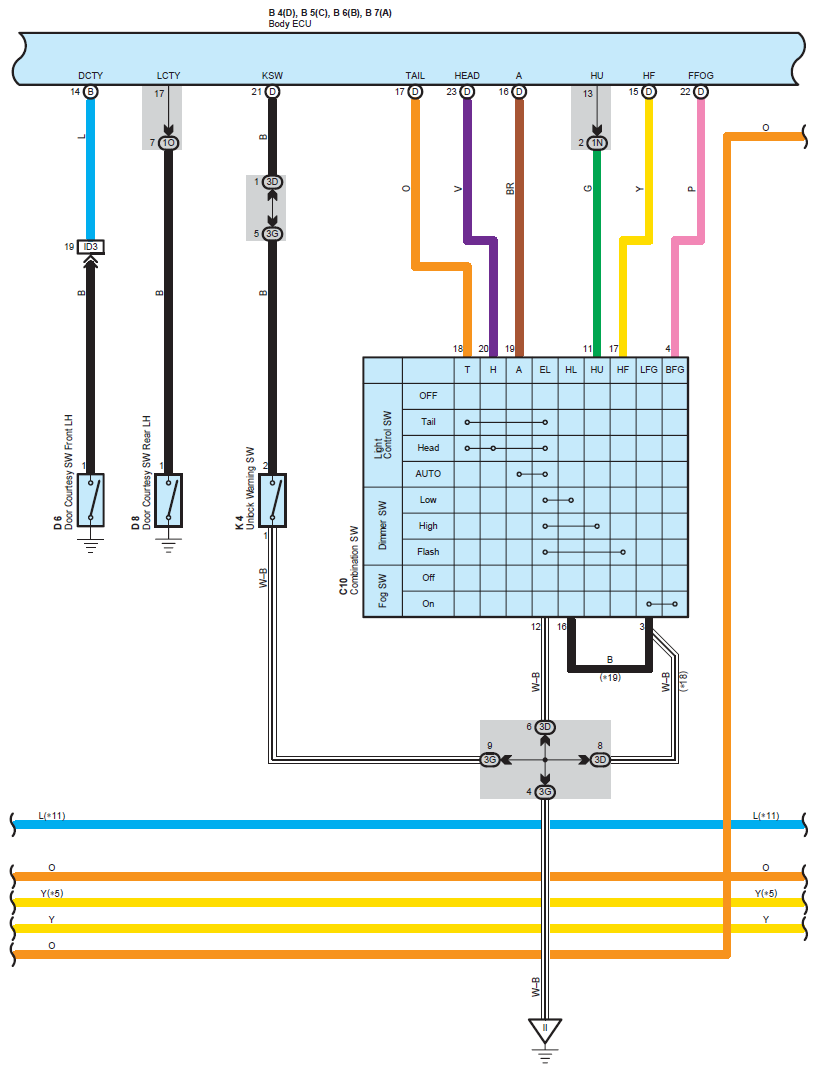

Fig 11: Multiplex Communication System (BEAN) - Circuit Diagram (11 Of 25)

G07602830

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

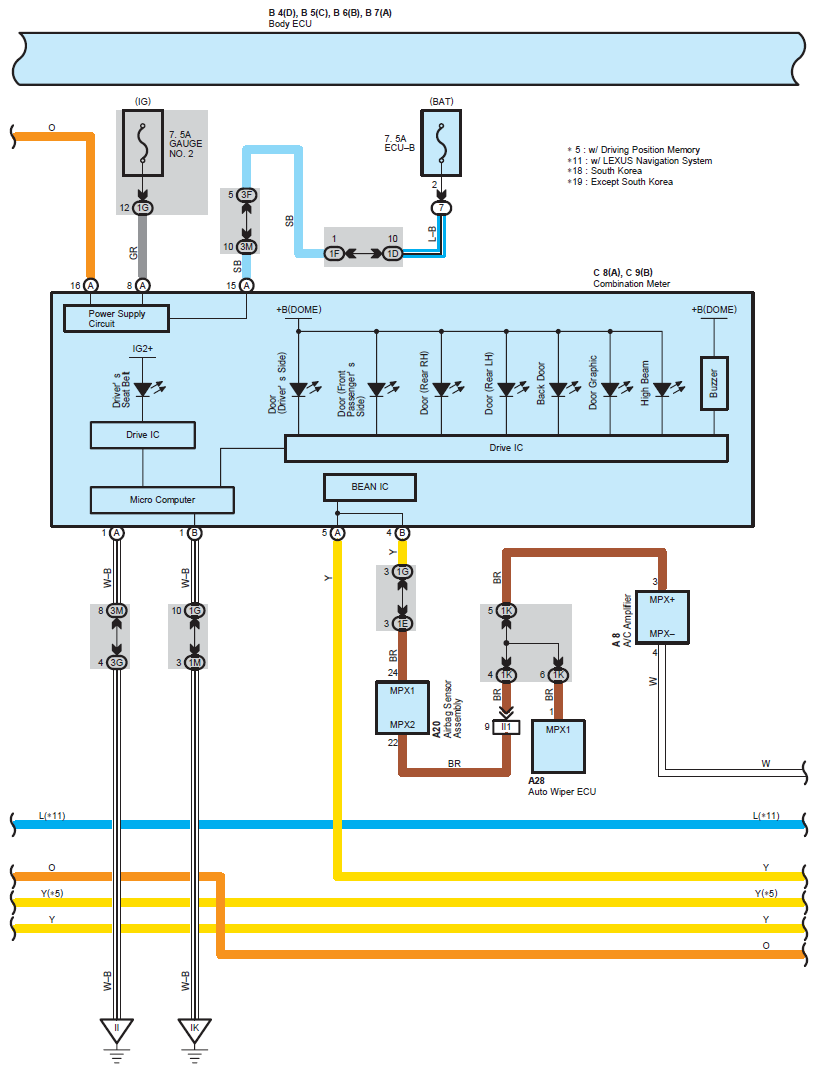

Fig 12: Multiplex Communication System (BEAN) - Circuit Diagram (12 Of 25)

G07602831

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

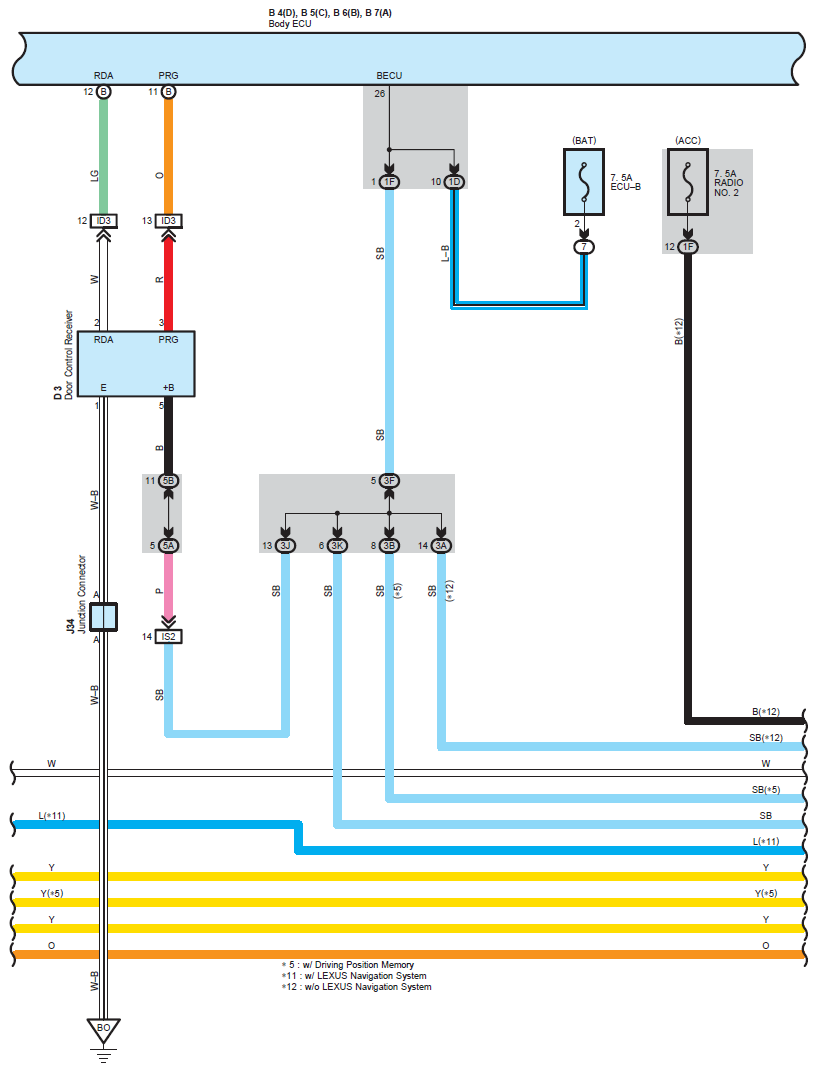

Fig 13: Multiplex Communication System (BEAN) - Circuit Diagram (13 Of 25)

G07602832

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

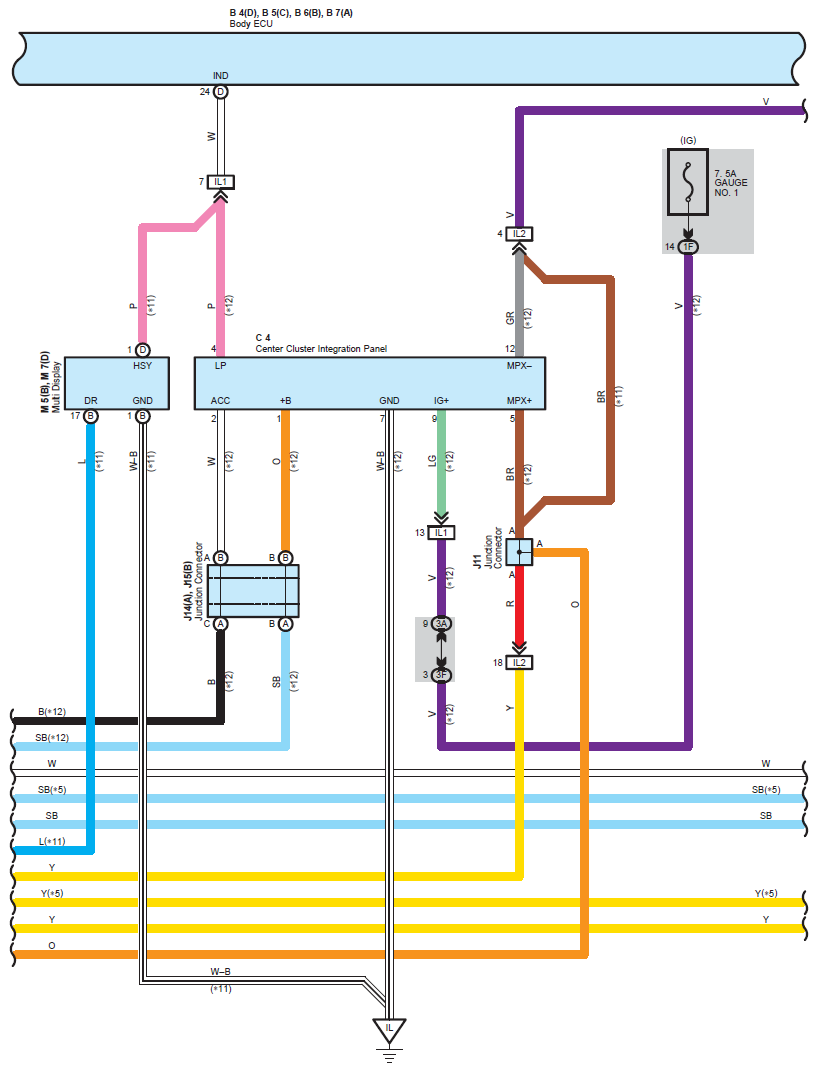

Fig 14: Multiplex Communication System (BEAN) - Circuit Diagram (14 Of 25)

G07602833

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

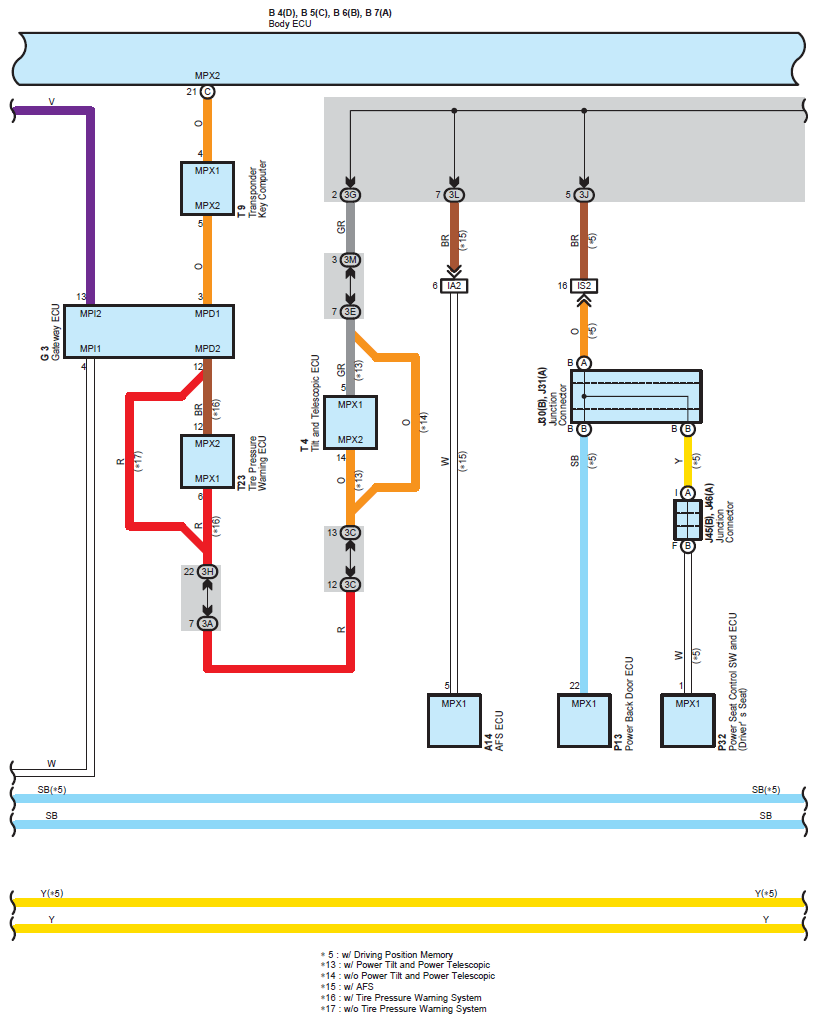

Fig 15: Multiplex Communication System (BEAN) - Circuit Diagram (15 Of 25)

G07602834

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

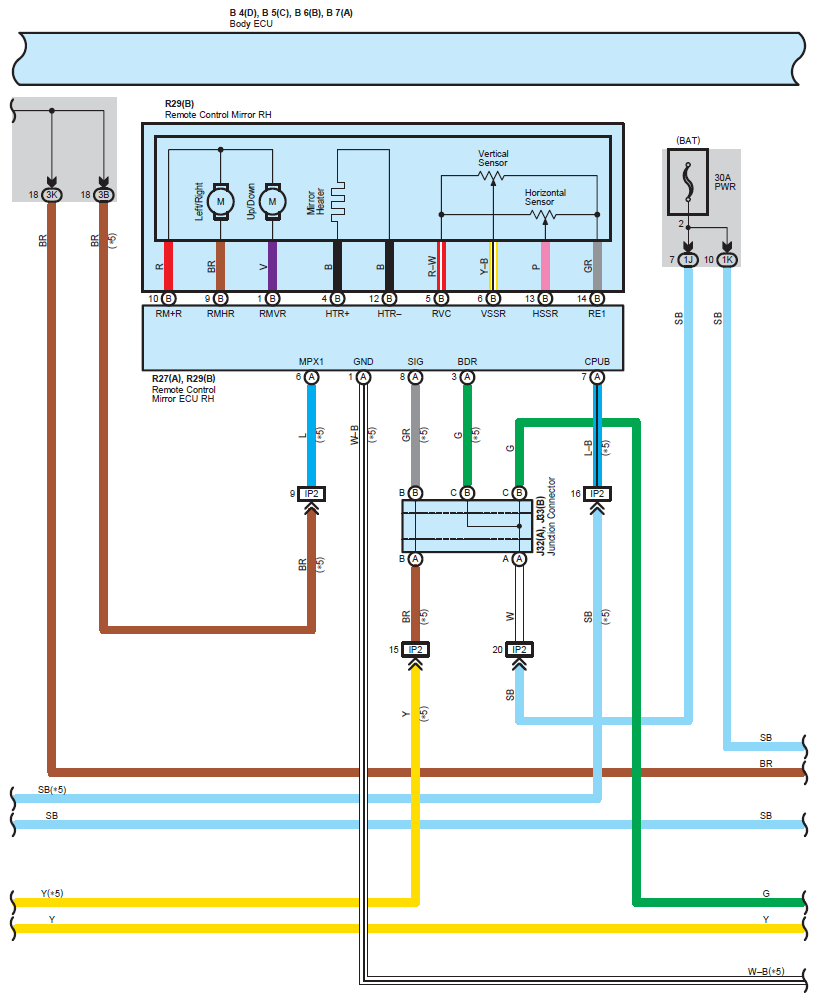

Fig 16: Multiplex Communication System (BEAN) - Circuit Diagram (16 Of 25)

G07602835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

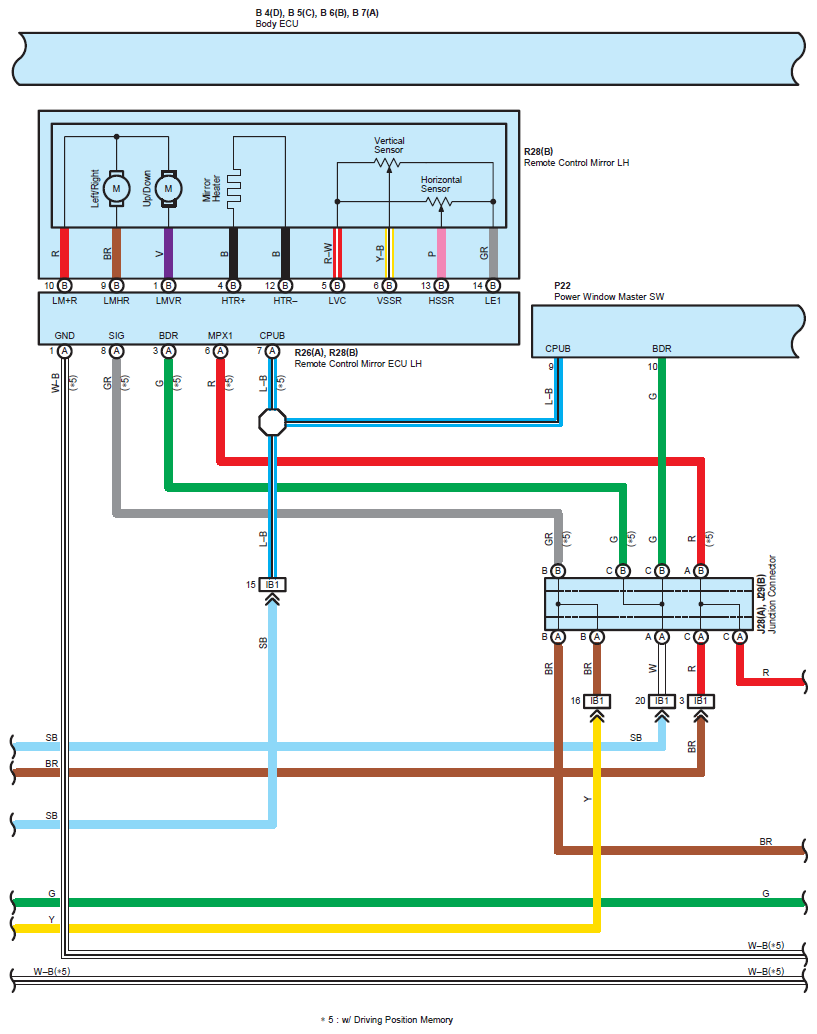

Fig 17: Multiplex Communication System (BEAN) - Circuit Diagram (17 Of 25)

G07602836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

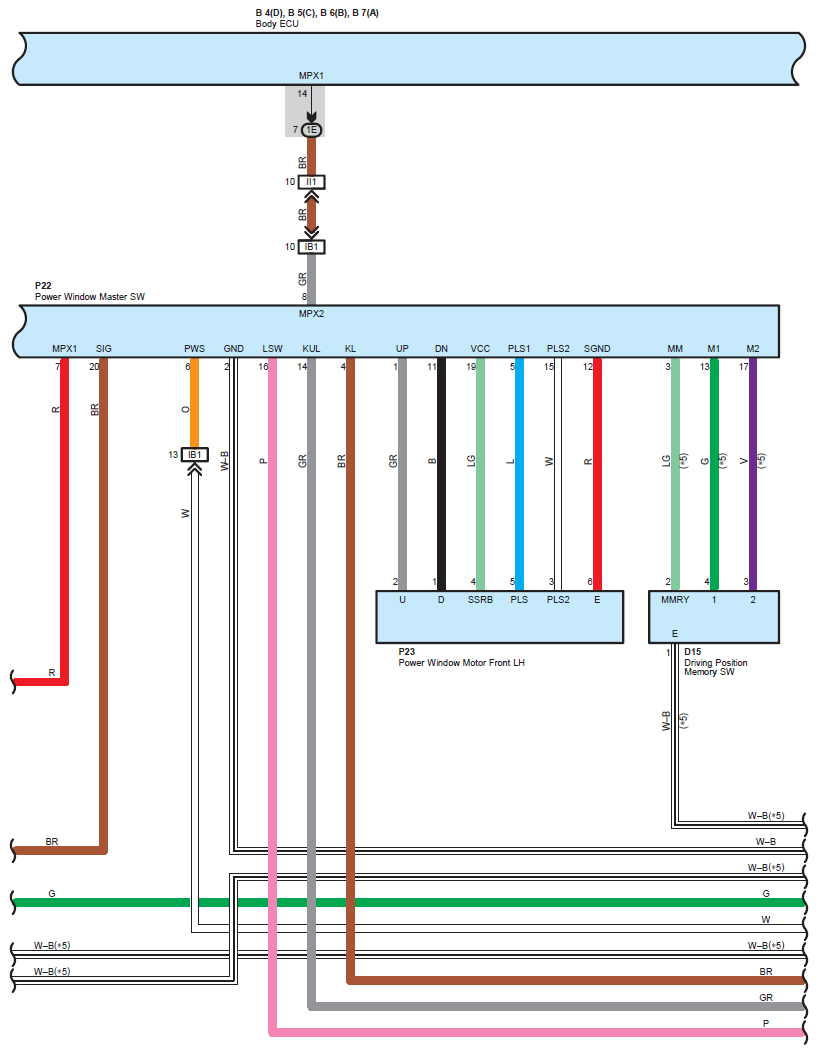

Fig 18: Multiplex Communication System (BEAN) - Circuit Diagram (18 Of 25)

G07602837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Multiplex Communication System (BEAN) - Circuit Diagram (19 Of 25)

G07602838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

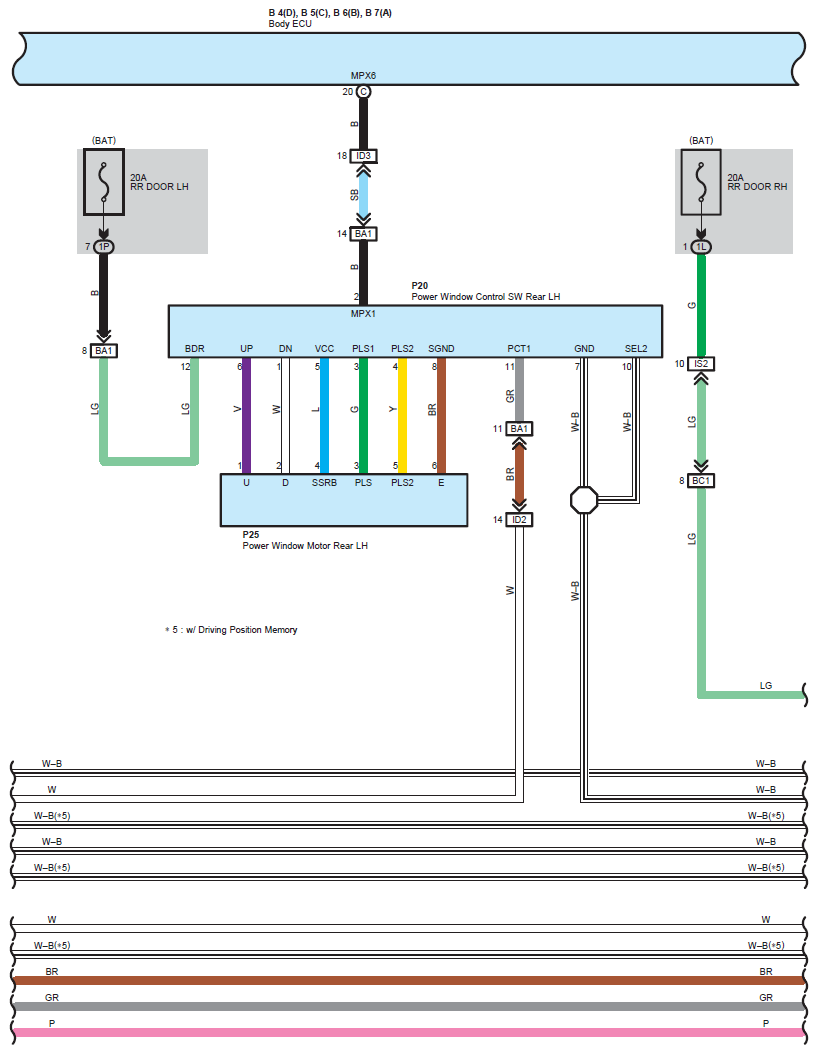

Fig 20: Multiplex Communication System (BEAN) - Circuit Diagram (20 Of 25)

G07602839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

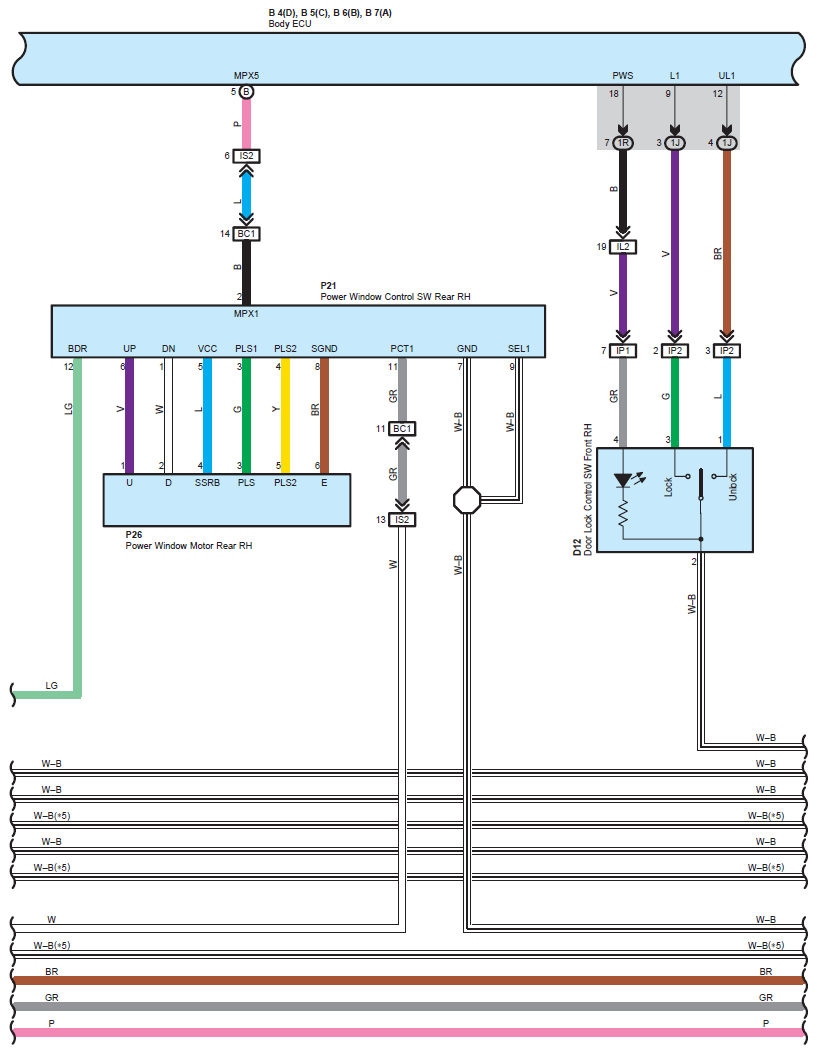

Fig 21: Multiplex Communication System (BEAN) - Circuit Diagram (21 Of 25)

G07602840

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

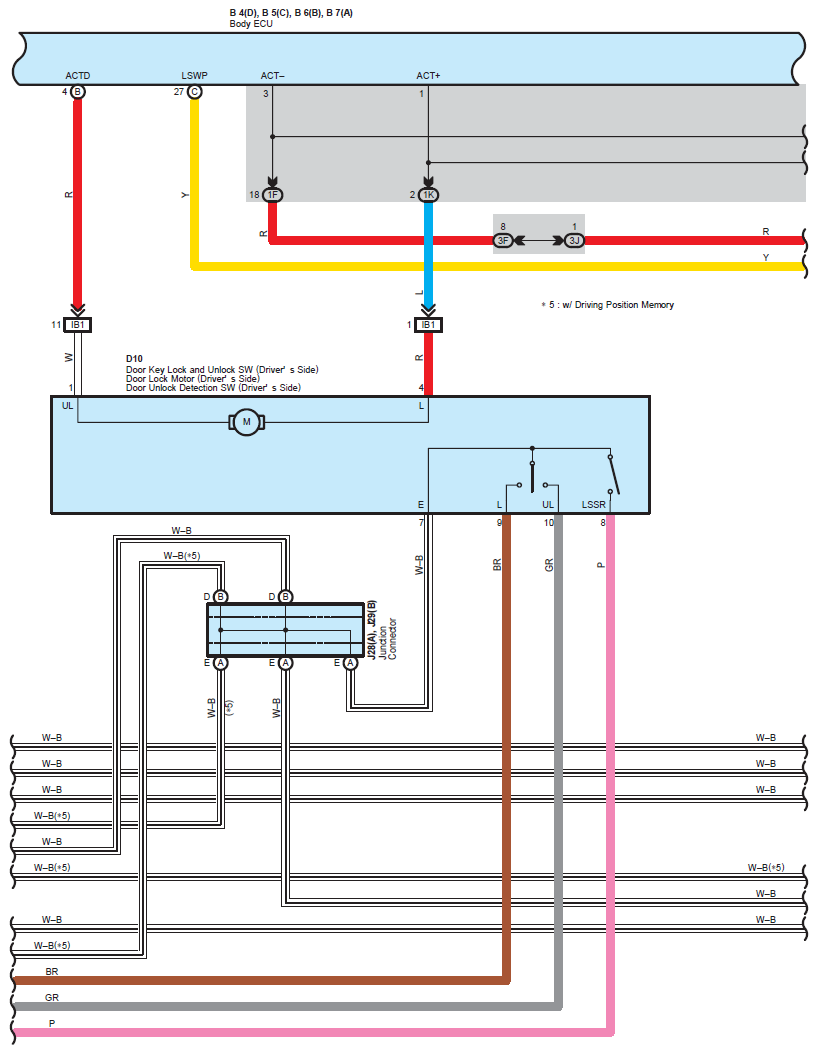

Fig 22: Multiplex Communication System (BEAN) - Circuit Diagram (22 Of 25)

G07602841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

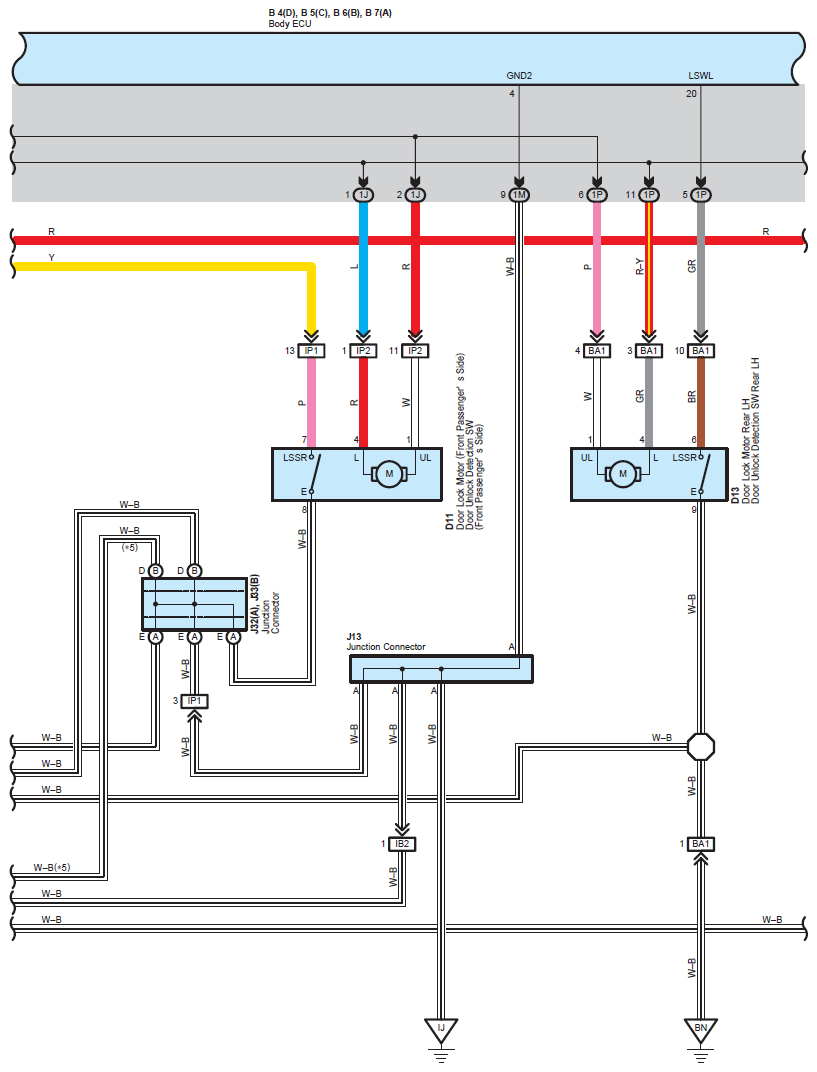

Fig 23: Multiplex Communication System (BEAN) - Circuit Diagram (23 Of 25)

G07602842

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

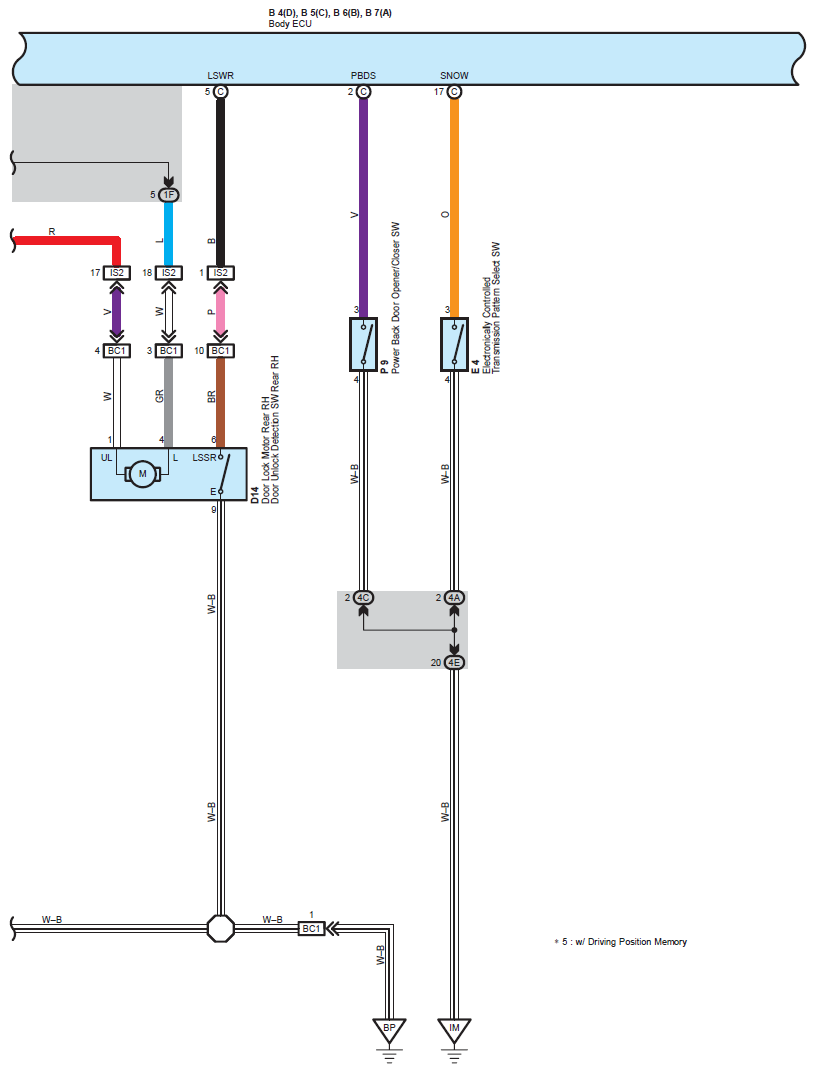

Fig 24: Multiplex Communication System (BEAN) - Circuit Diagram (24 Of 25)

G07602843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

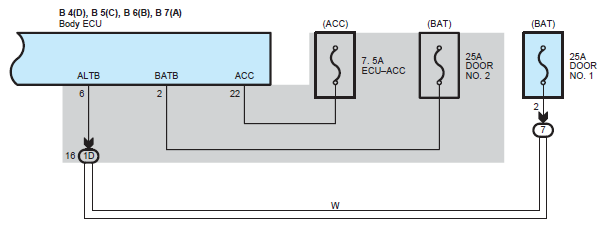

Fig 25: Multiplex Communication System (BEAN) - Circuit Diagram (25 Of 25)

G07602844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
