Power Back Door: Notes

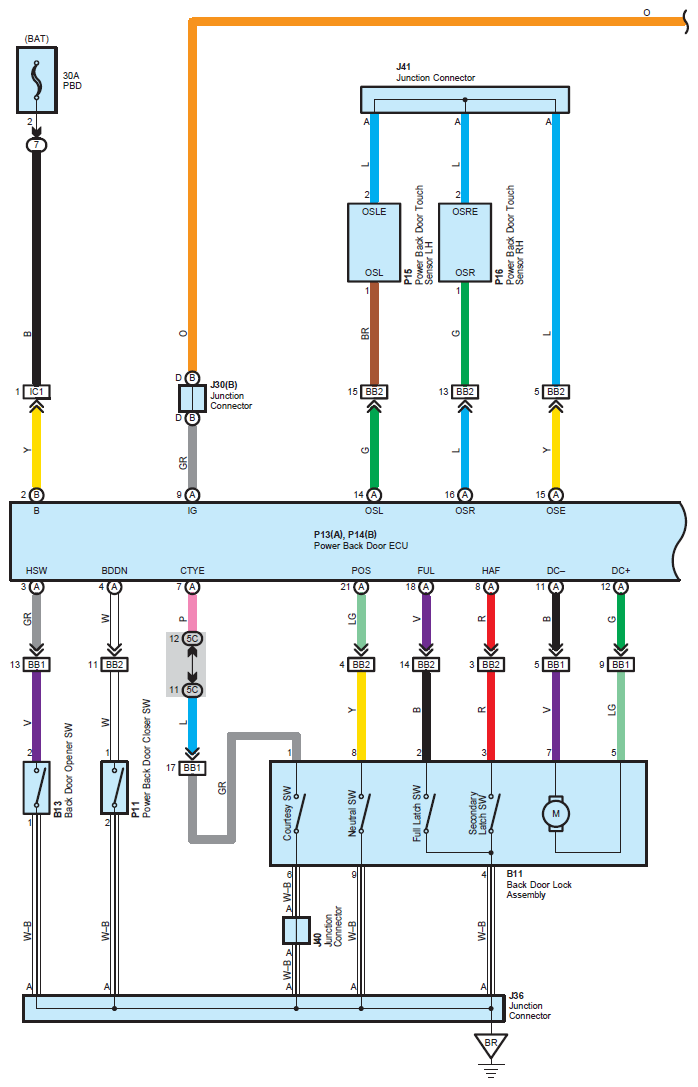

Fig 1: Power Back Door - Circuit Diagram (1 Of 4)
G07602912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

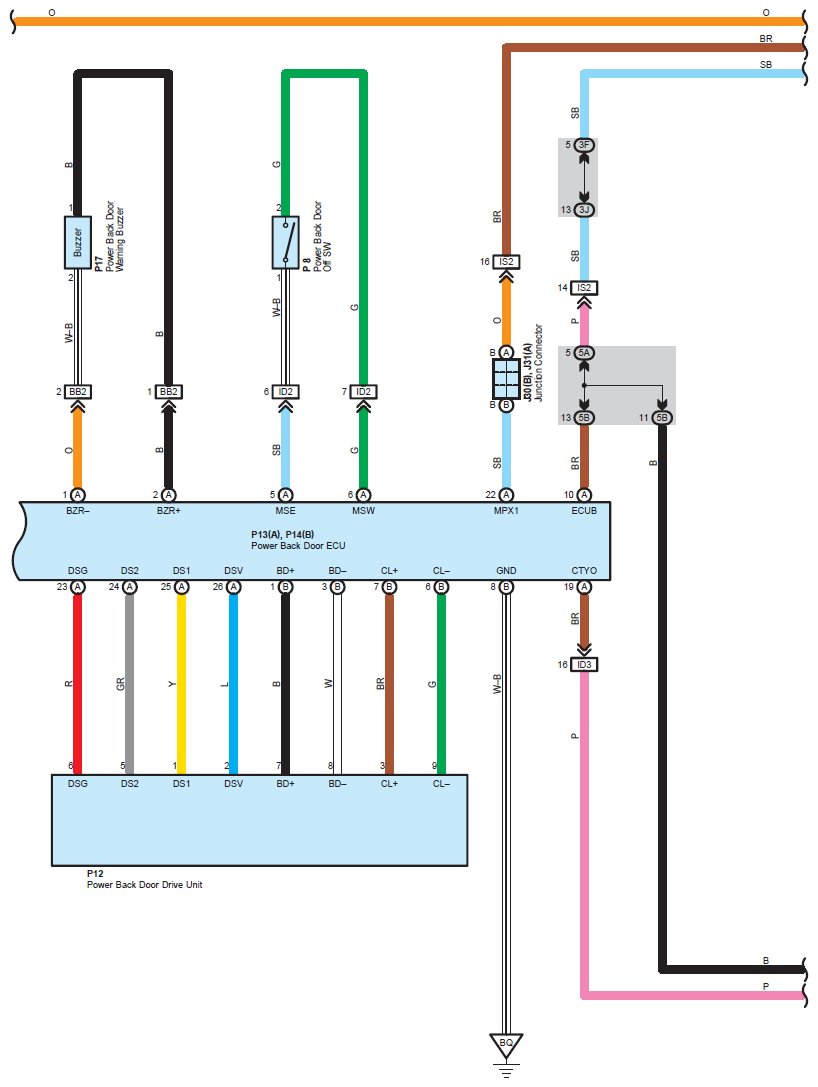

Fig 2: Power Back Door - Circuit Diagram (2 Of 4)
G07602913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

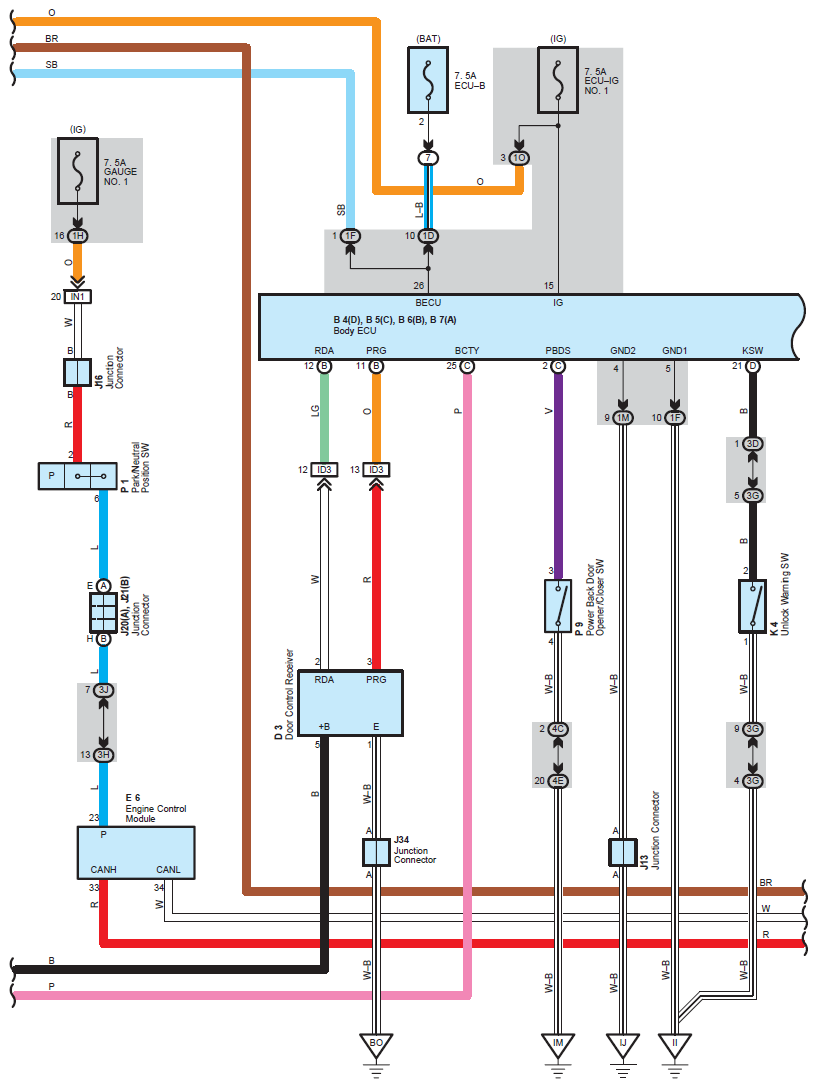

Fig 3: Power Back Door - Circuit Diagram (3 Of 4)
G07602914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

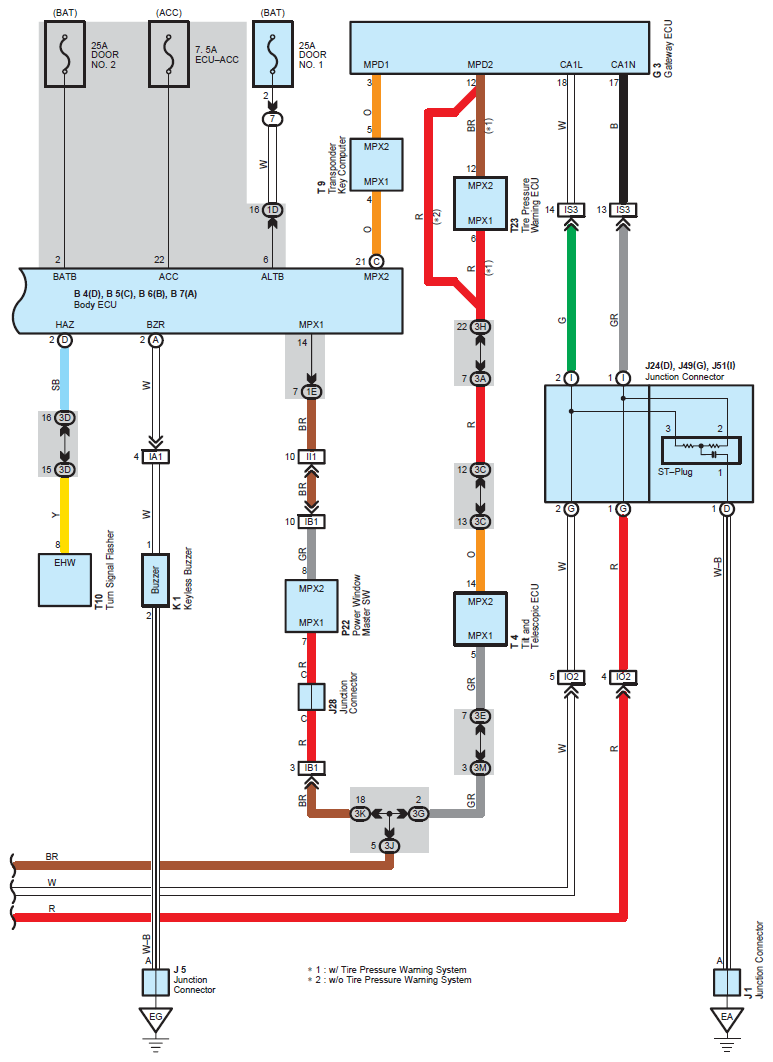

Fig 4: Power Back Door - Circuit Diagram (4 Of 4)
G07602915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
